| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07096-00214 | HOSE | 96514- | |
| 2 | 20Y-62-22790 | BAND, RED | 80001- | |
| 3 | 04435-51812 | CLIP | 80001- | |
| 4 | 01010-81225 | BOLT | 96514- | |
| 5 | 01643-31232 | WASHER | 80001- |
Поиск по каталогу

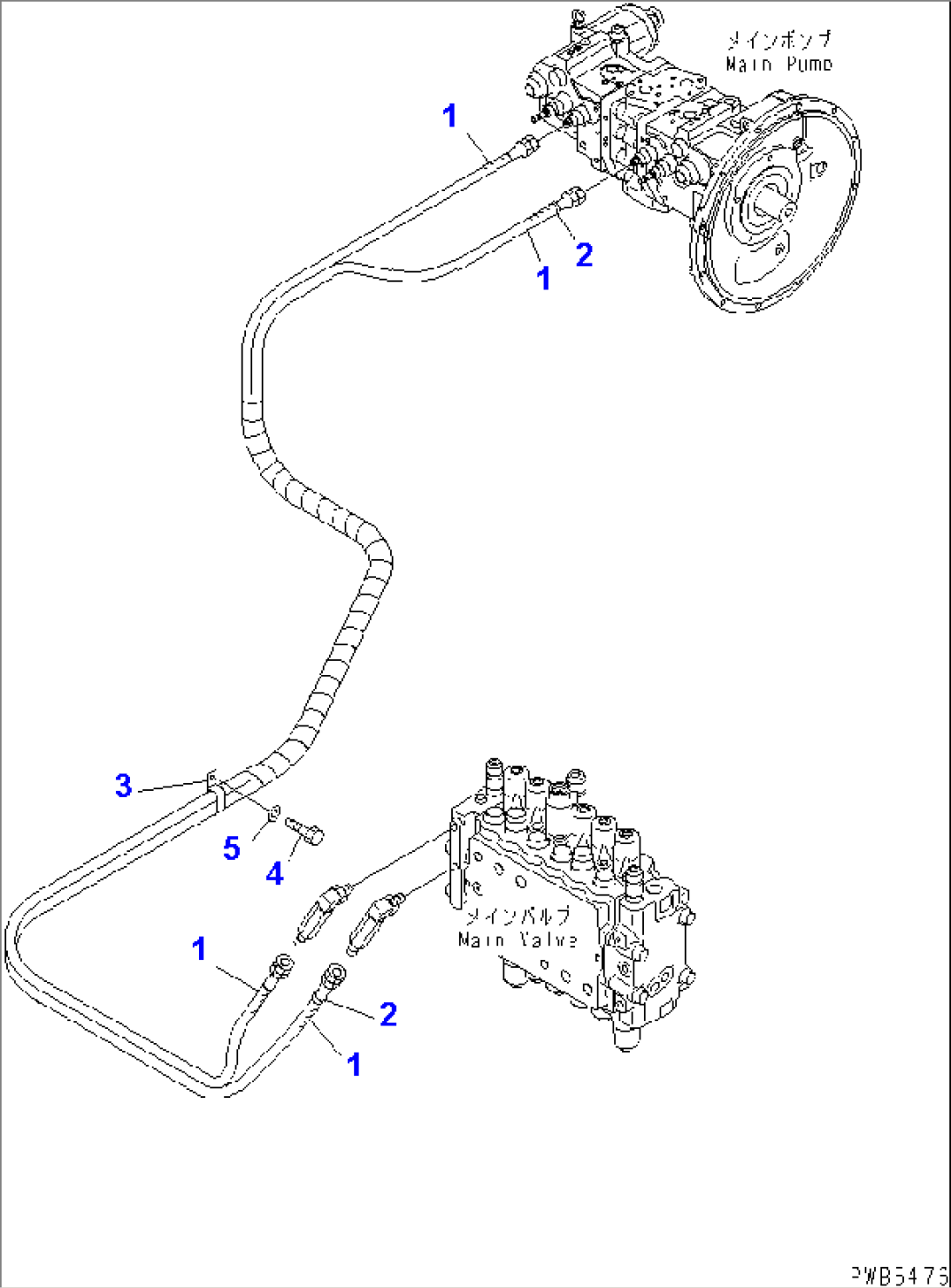

LS LINES(#96514-)
| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07096-00214 | HOSE | 96514- | |
| 2 | 20Y-62-22790 | BAND, RED | 80001- | |
| 3 | 04435-51812 | CLIP | 80001- | |
| 4 | 01010-81225 | BOLT | 96514- | |
| 5 | 01643-31232 | WASHER | 80001- |
