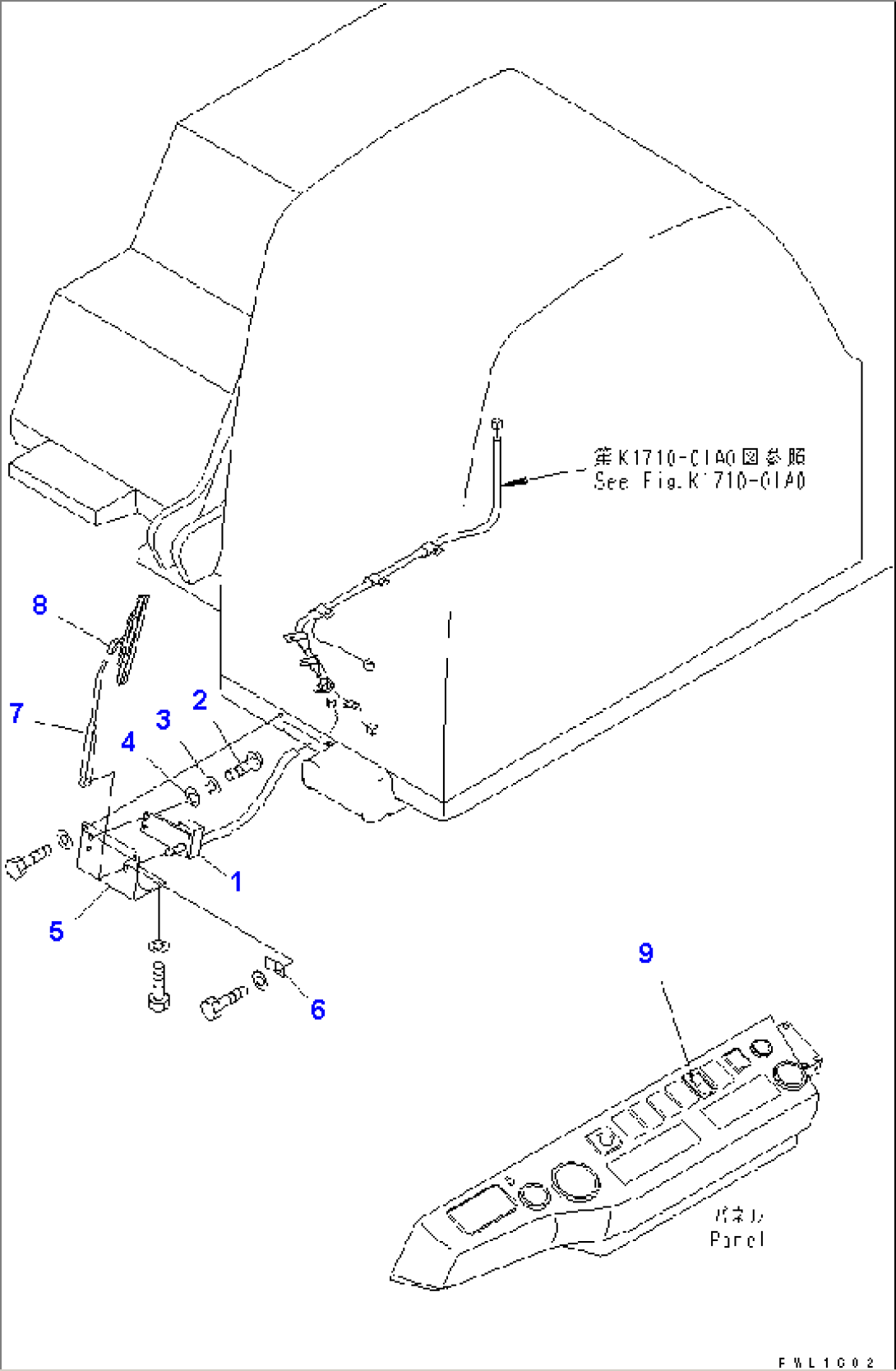

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 198-911-3380 | WIPER MOTOR ASS'Y | 10001- | |
| 2 | 01220-40516 | SCREW | 10001- | |
| 3 | 01601-20513 | WASHER,SPRING | 10001- | |
| 4 | 01641-20508 | WASHER | 10001- | |
| 5 | 207-06-K2240 | BRACKET | 10001- | |
| 6 | 20Y-06-29830 | PLATE | 10001- | |
| 7 | 20E-54-K2310 | ARM,WIPER | 10001- | |
| 8 | 20E-54-K2290 | BLADE,WIPER | 10001- | |
| 9 | 20Y-06-29660 | SWITCH | 10001- |
