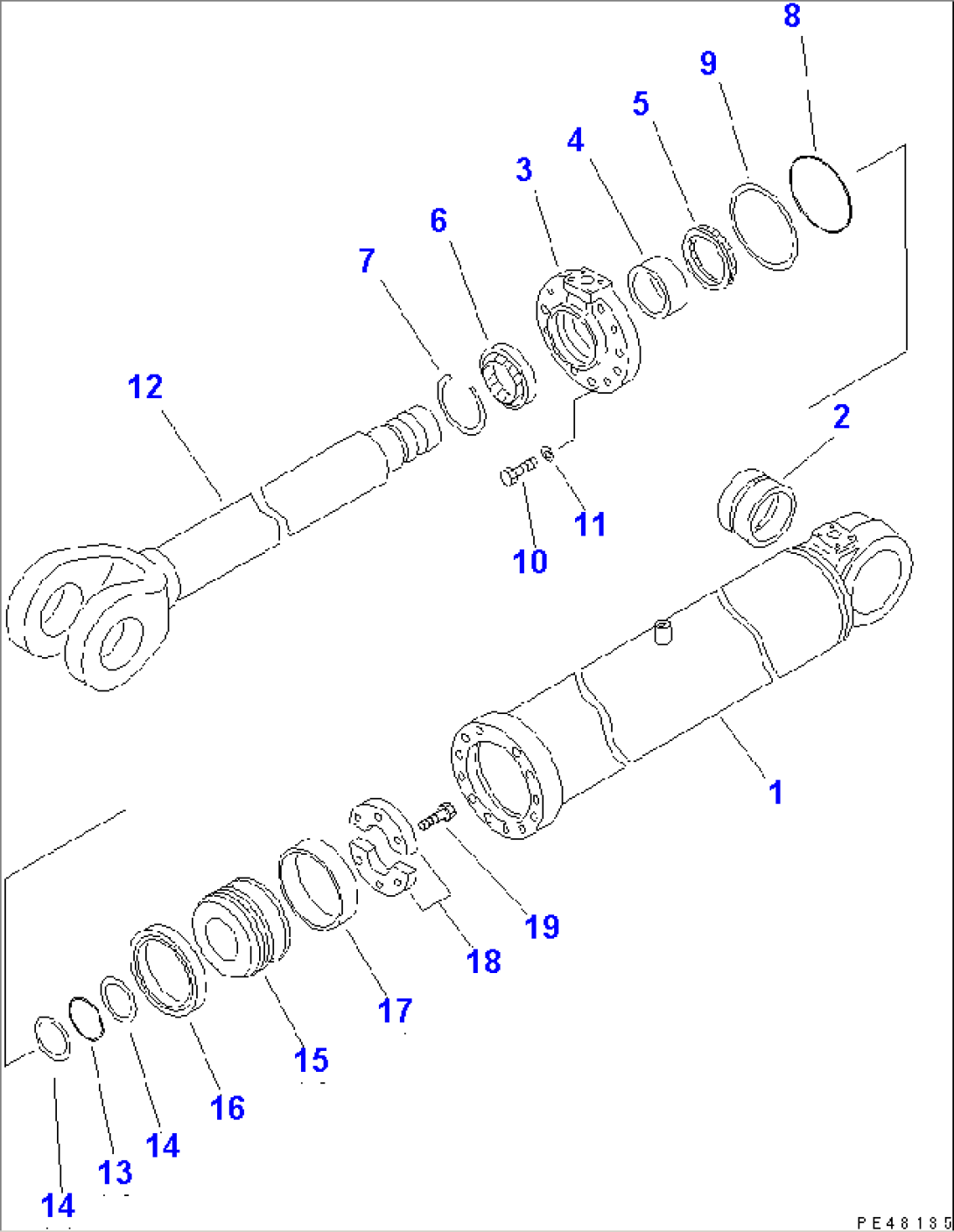

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-01-03150 | CYLINDER ASS'Y | 50001- | ||
| 1 | \6\ | CYLINDER | 50001- | |
| 2 | 707-76-11040 | BUSHING | 50001- | |
| 3 | \6\ | HEAD,CYLINDER | 50001- | |
| 4 | 707-52-10960 | BUSHING | 50001- | |
| 5 | 707-51-95030 | PACKING,ROD (KIT) | 50001- | |
| 6 | 707-56-95510 | SEAL,DUST (KIT) | 50001- | |
| 7 | 07179-13109 | RING,SNAP | 50001- | |
| 8 | 07000-15170 | O-RING (KIT) | 50001- | |
| 9 | 07146-05172 | RING,BACK-UP (KIT) | 50001- | |
| 10 | 01010-81865 | BOLT | 50001- | |
| 11 | 01643-31845 | WASHER | 50001- | |
| 12 | 707-59-95010 | ROD,PISTON | 50001- | |
| 13 | 07000-12080 | O-RING (KIT) | 50001- | |
| 14 | 707-35-52920 | RING,BACK-UP (KIT) | 50001- | |
| 15 | 707-36-18410 | PISTON | 50001- | |
| 16 | 707-44-18180 | RING,PISTON (KIT) | 50001- | |
| 17 | 07156-01822 | RING,WEAR (KIT) | 50001- | |
| 18 | 707-40-20030 | SPACER | 50001- | |
| 19 | 01010-31245 | BOLT | 50001- | |
| 707-99-65400 | SERVICE KIT | 50001- |
