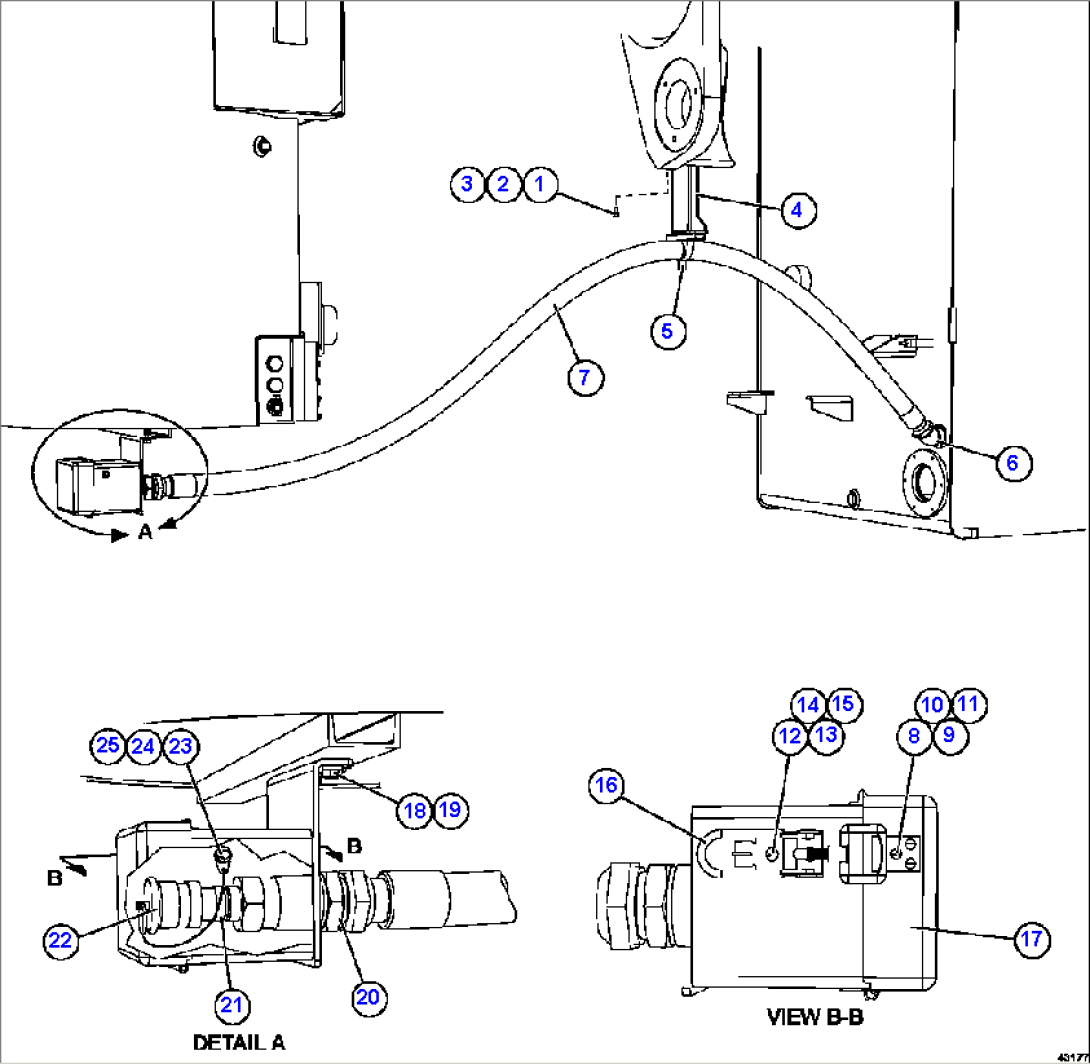

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MM0605 | CAPSCREW - M10 X 1.50 X 25 | ||
| 2 | MM0471 | LOCKWASHER - M10 | ||
| 3 | MM0461 | FLAT WASHER - M10 | ||
| 4 | XB5537 | BRACKET | ||
| 5 | WA3484 | CLAMP, HYDRA-ZORB | ||
| 6 | WB0303 | FITTING, STRAIGHT | ||
| 7 | HA8777 | HOSE | ||
| 8 | TF6246 | SCREW - #8 - 32NC | ||
| 9 | TF6248 | FLAT WASHER - #8 | ||
| 10 | VM9910 | LOCKWASHER - #8 | ||
| 11 | TV2179 | NUT - #8 - 32NC | ||
| 12 | SR6528 | SCREW - #12 - 24NC | ||
| 13 | DF3445 | FLAT WASHER - #12 | ||
| 14 | VD2047 | LOCKWASHER - #12 | ||
| 15 | TR8580 | NUT - #12 - 24NC | ||
| 16 | PC3115 | LATCH, ADJUSTABLE DRAW | ||
| 17 | XB8518 | BOX, FUEL | ||
| 18 | TR1376 | CAPSCREW - 1/2" - 13NC X 1.25" | ||
| 19 | TR5445 | LOCKWASHER - 1/2" | ||
| 20 | SV6653 | FITTING, STRAIGHT | ||
| 21 | PB2154 | RECEIVER ASSEMBLY | ||
| 22 | PB2020 | CAP ASSEMBLY | ||
| 23 | TL7218 | CAPSCREW - 3/8" - 16NC X 7/8" | ||
| 24 | TC1231 | LOCKWASHER - 3/8" | ||
| 25 | TC1233 | NUT - 3/8" - 16NC | ||
| NS|26 | NOTE: NS = NOT SHOWN | |||
| NS|27 | PC2962 | NOZZLE, FUEL |
