| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-54-24210 | PLATE | 52406- | |
| 2 | 01435-01220 | BOLT | 52406- | |
| 3 | 01435-01220 | BOLT | 52406- | |
| 4 | 01643-31232 | WASHER | 52406- | |
| 5 | 426-54-24510 | STEP | 52406- | |
| 6 | 01643-31232 | WASHER | 52406- | |
| 7 | 01435-01220 | BOLT | 52406- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 3 s/n 50001 up
- Guard
- Ladder (engine hood side mounting parts)(#52406 )
Поиск по каталогу

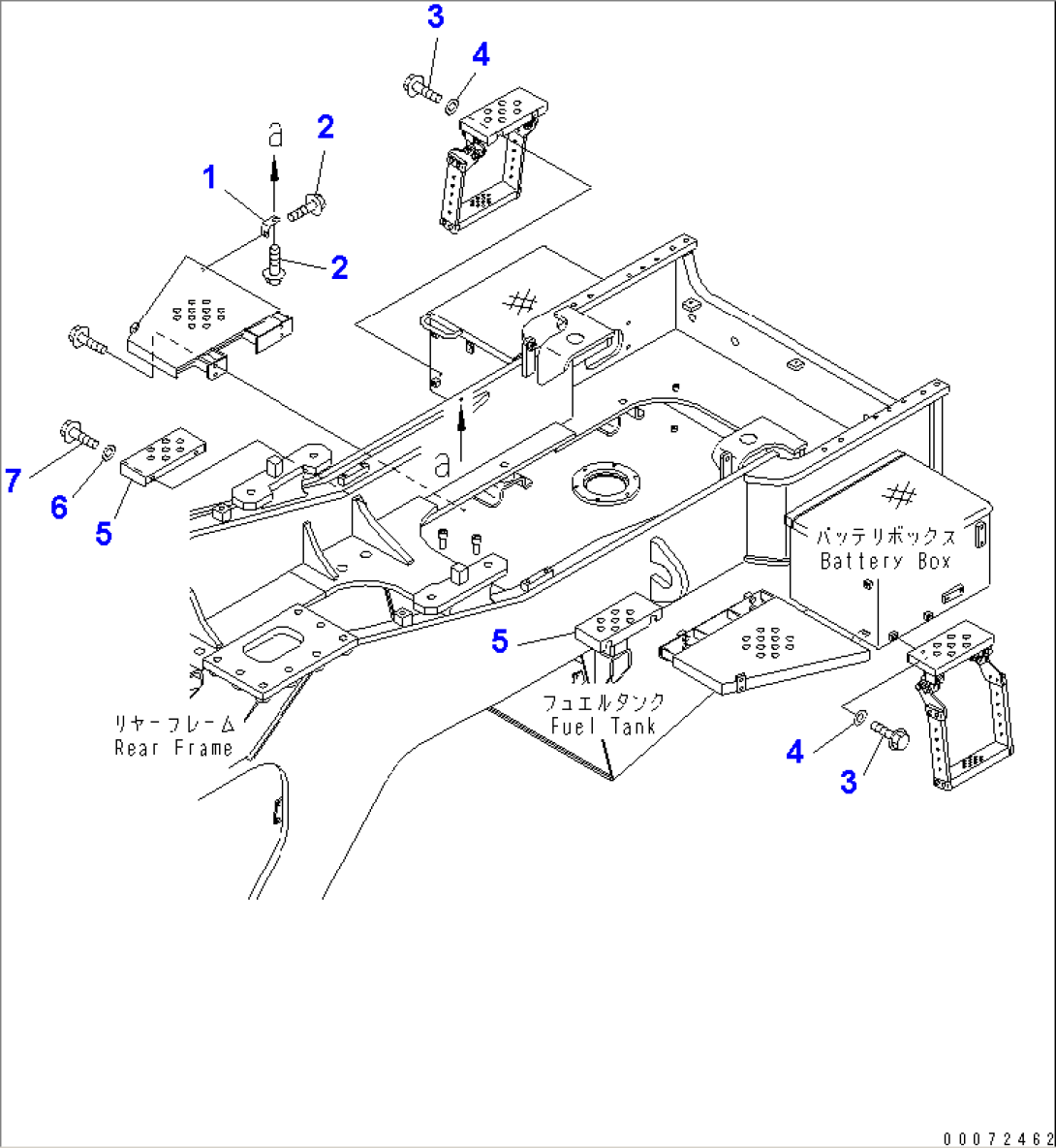

LADDER (ENGINE HOOD SIDE MOUNTING PARTS)(#52406-)
