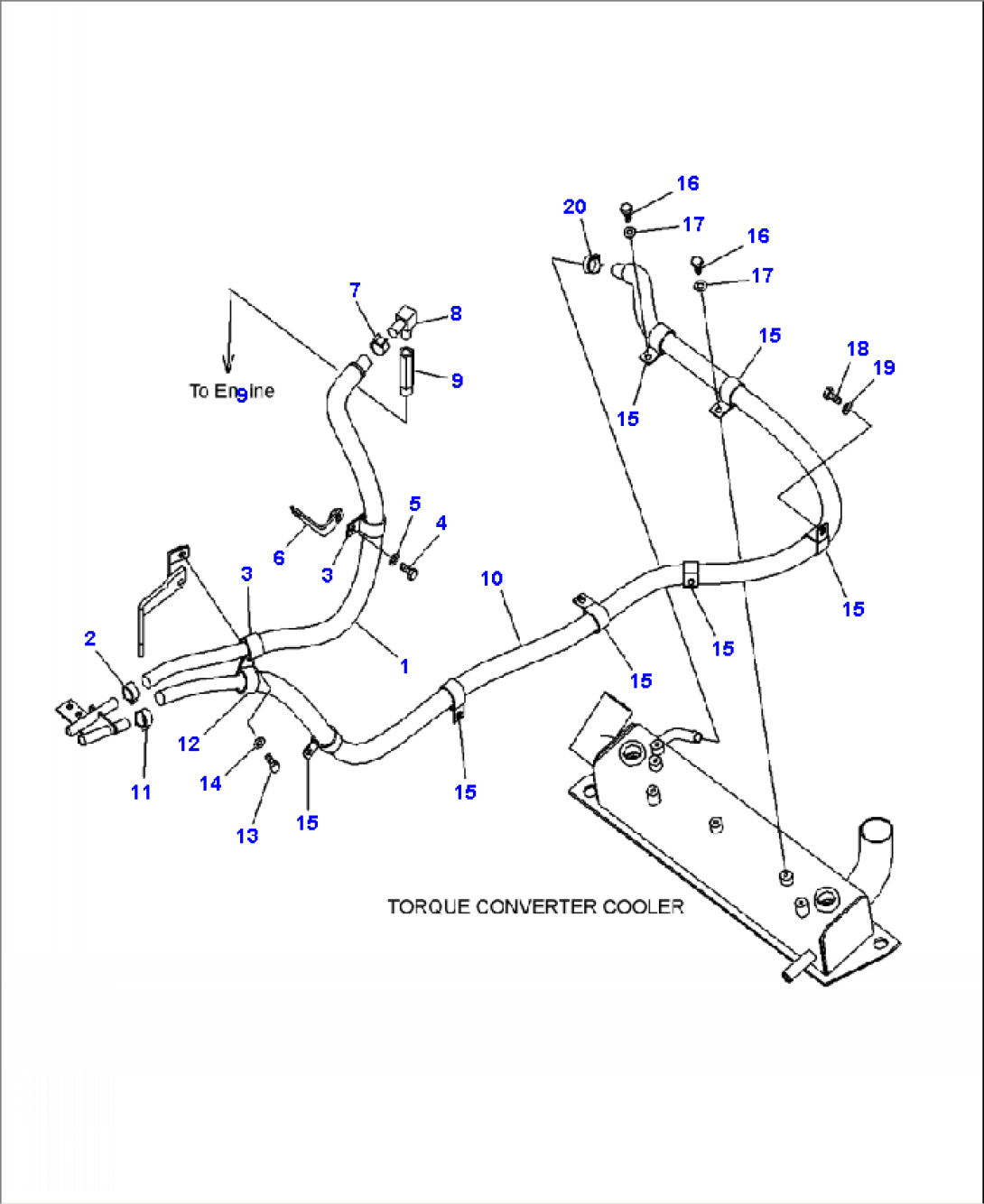

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-07-41110 | HOSE | ||
| 2 | 09479-02400 | CLAMP | ||
| 3 | 04434-53411 | CLIP | ||
| 4 | 01010-81020 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 424-Z66-2240 | PLATE | ||
| 7 | 09479-02400 | CLAMP | ||
| 8 | 423-S62-4381 | ELBOW | ||
| 9 | 22B-979-1560 | ADAPTER | ||
| 10 | 423-07-41121 | HOSE | ||
| 11 | 09479-02400 | CLAMP | ||
| 12 | 423-62-43810 | CLIP | ||
| 13 | 01010-81030 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 04434-53411 | CLIP | ||
| 16 | 01010-81020 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 01010-81025 | BOLT | ||
| 19 | (NSS) | WASHER | ||
| 20 | 09479-02400 | CLAMP |
