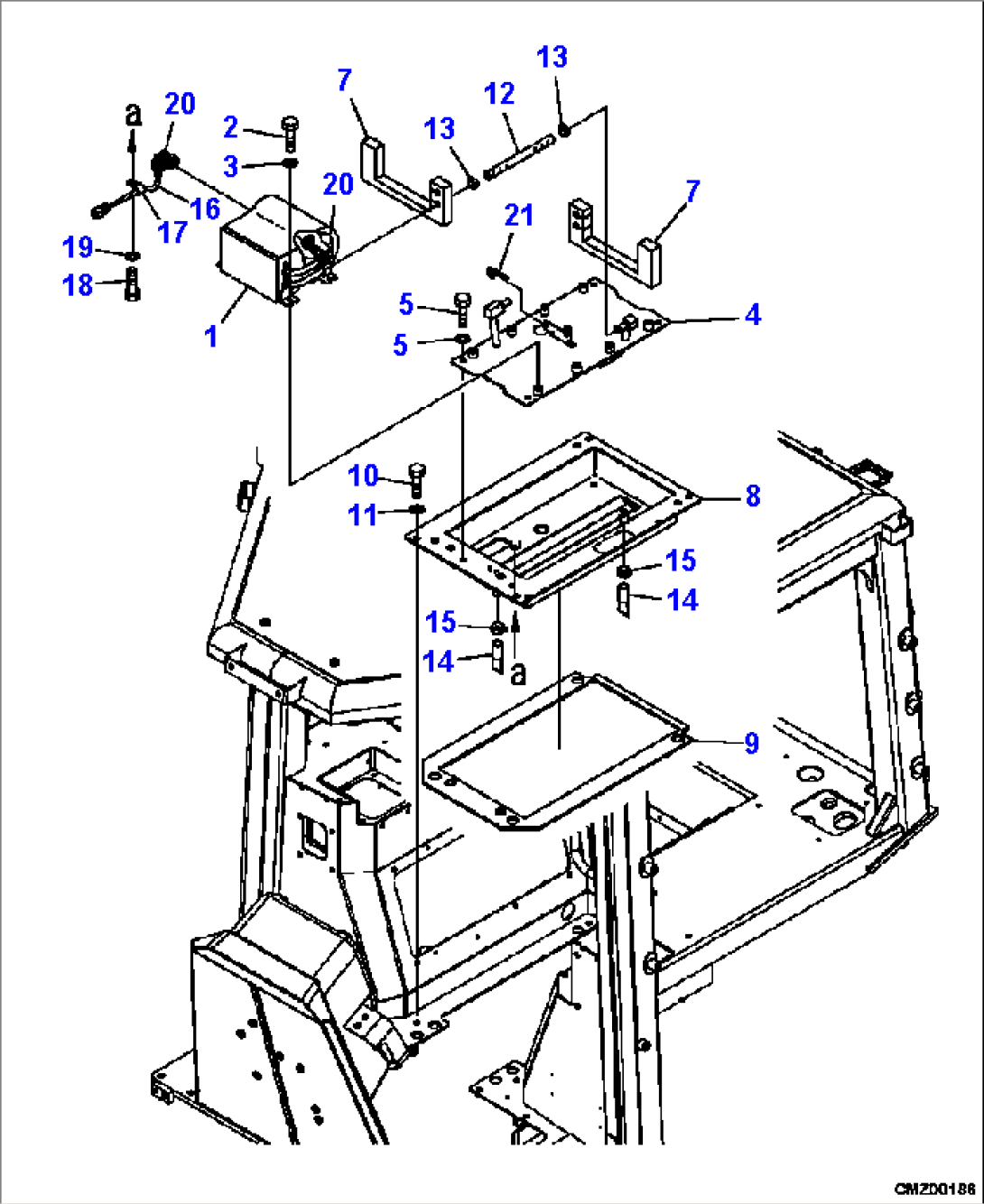

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-987-3680 | HEATER | B10001- | |
| 2 | 01010-81020 | BOLT | B10001- | |
| 3 | 01643-31032 | WASHER | B10001- | |
| 4 | 12Y-977-1112 | BRACKET | B10001- | |
| 5 | 01010-81020 | BOLT | B10001- | |
| 6 | 01643-31032 | WASHER | B10001- | |
| 7 | 12Y-977-1121 | SEAL | B10001- | |
| 8 | 12Y-977-1143 | BRACKET | B10001- | |
| 9 | 12Y-977-1211 | SEAL | B10001- | |
| 10 | 01010-81230 | BOLT | B10001- | |
| 11 | 01643-31232 | WASHER | B10001- | |
| 12 | 12Y-979-1380 | HOSE | B10001- | |
| 13 | 11Y-09-11160 | CLIP | B10001- | |
| 14 | 22B-979-1880 | CONNECTOR | B10001- | |
| 15 | 07285-00230 | CLIP | B10001- | |
| 16 | 12Y-977-1193 | HARNESS, WIRING | B10001- | |
| 17 | 04434-51410 | CLIP | B10001- | |
| 18 | 01010-81020 | BOLT | B10001- | |
| 19 | 01643-31032 | WASHER | B10001- | |
| 20 | 08034-20519 | BAND | B10001- | |
| 21 | 12Y-06-13380 | SEAL | B10001- |
