| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-978-4610 | ROOF | B10001- | |
| 2 | 12Y-978-4622 | ROOF | B10001- | |
| 3 | 14X-978-1660 | BUTTON | B10001- | |
| 4 | 12Y-978-4660 | PLATE | B10001- | |
| 5 | 20Y-54-18690 | RIVET | B10001- | |
| 6 | 12Y-978-4670 | SHEET | B10001- | |
| 7 | 12Y-978-2870 | PLATE | B10001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D51ex/d51px 22 s/n b10001 up
- Operator's compartment and control system
- K0410 02a0 rops inside cover
Поиск по каталогу

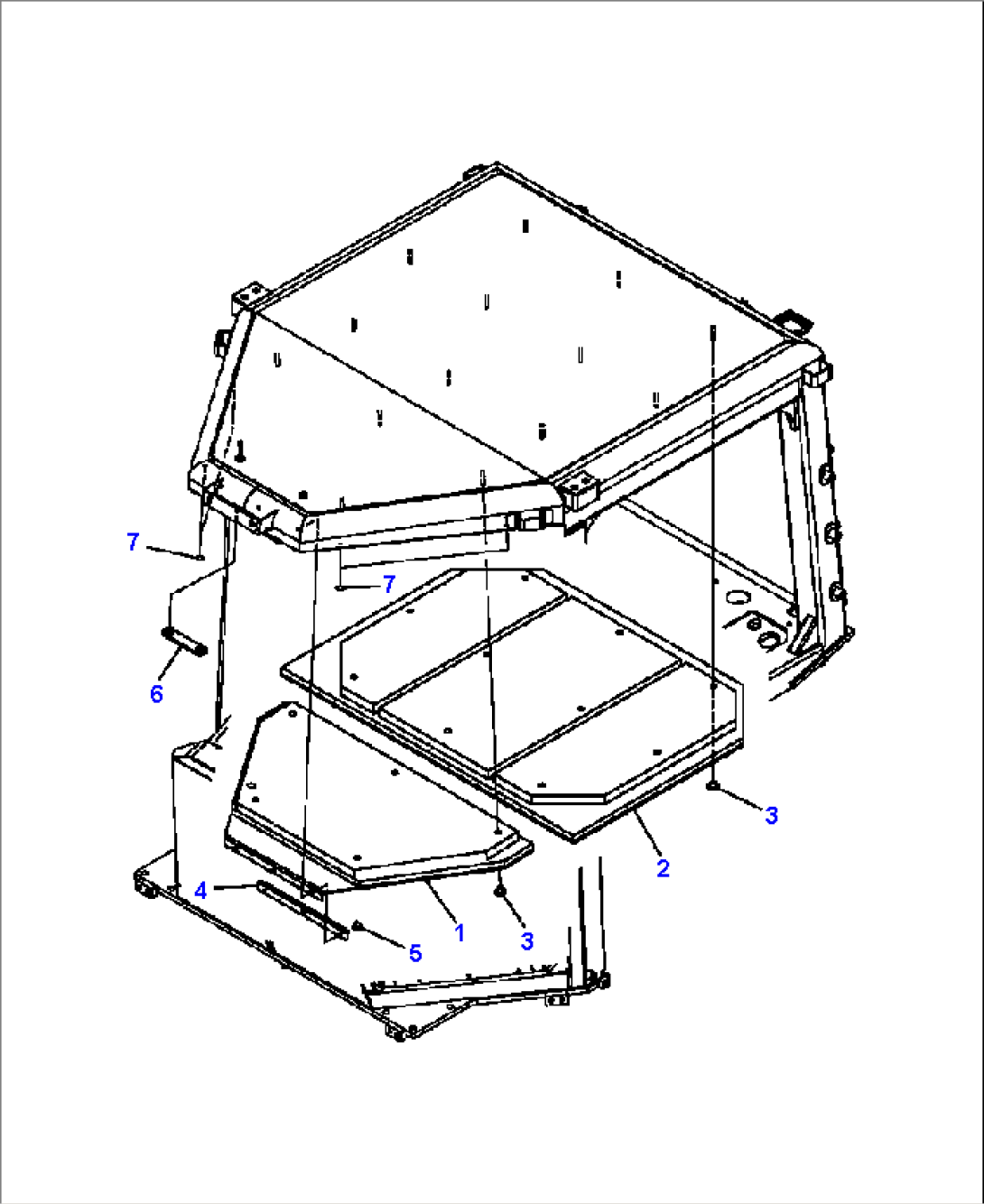

K0410-02A0 ROPS INSIDE COVER
