| Item | Part No. | Part Name | Qty | Serial No. |

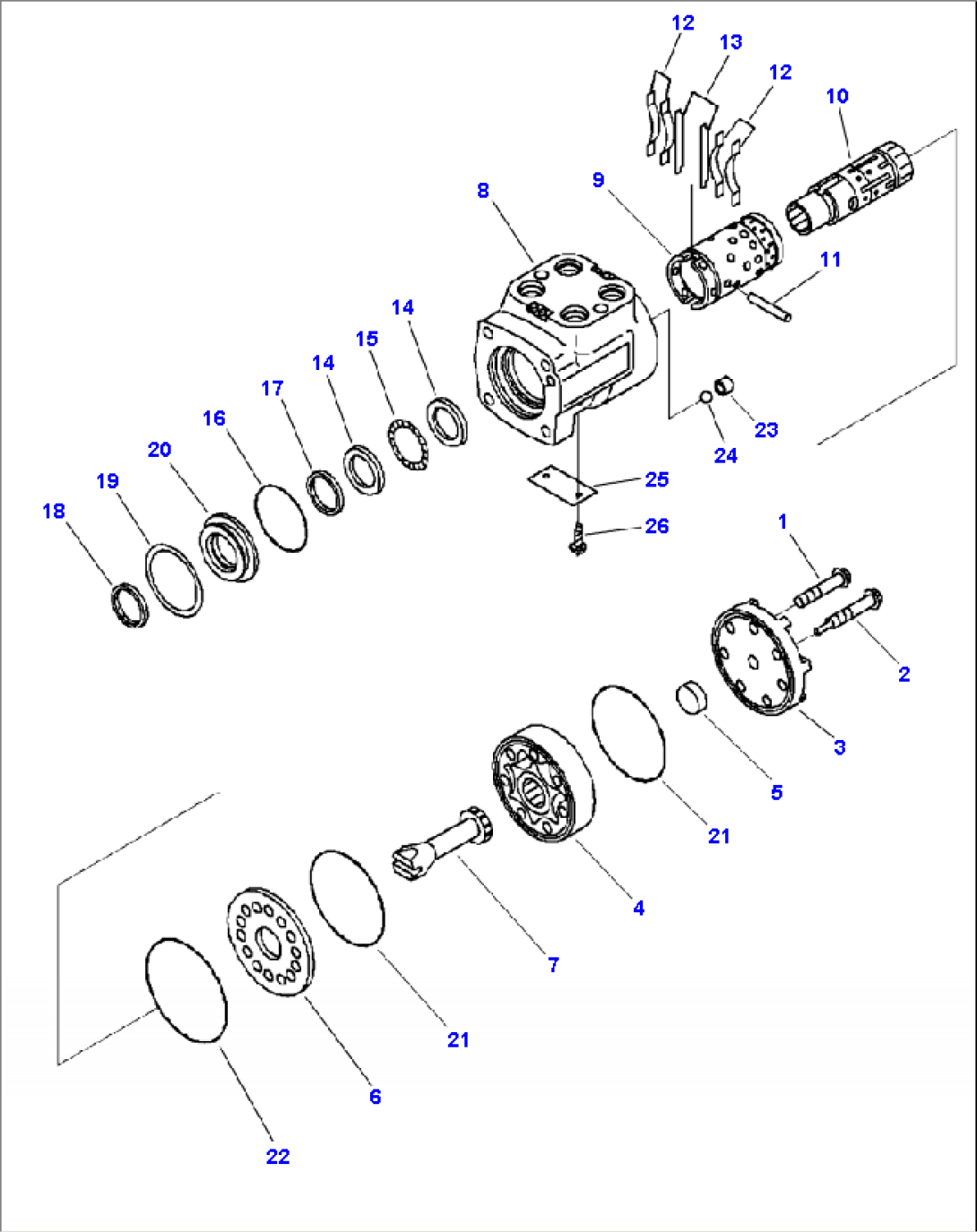

| VALVE ( SEE FIG. K0210-24A0 ) | ||||
| 1 | (NSS) | SCREW | ||
| 2 | (NSS) | RETAINER | ||
| 3 | (NSS) | END CAP | ||
| 4 | (NSS) | GEROTOR | ||
| 5 | (NSS) | SPACER | ||
| 6 | (NSS) | SPACER | ||
| 7 | (NSS) | DRIVE | ||
| (NSS) | CONTROL PARTS ASSEMBLY | |||
| 8 | (NSS) | HOUSING | ||
| 9 | (NSS) | SLEEVE | ||
| 10 | (NSS) | SPOOL | ||
| 11 | (NSS) | PIN | ||
| 12 | (NSS) | SPRING | ||
| 13 | (NSS) | SPRING | ||
| 14 | (NSS) | BEARING | ||
| 15 | (NSS) | NEEDLE | ||
| 16 | (NSS) | O-RING | ||
| 17 | (NSS) | SEAL | ||
| 18 | (NSS) | SEAL | ||
| 19 | (NSS) | RING | ||
| 20 | (NSS) | SEAL | ||
| 21 | (NSS) | O-RING | ||
| 22 | (NSS) | O-RING | ||
| 23 | (NSS) | SCREW | ||
| 24 | (NSS) | BALL | ||
| 25 | (NSS) | PLATE | ||
| 26 | (NSS) | RIVET | ||
| 416-64-15480 | SERVICE KIT, BEARING | |||
| 423-64-45610 | SERVICE KIT, SEAL | |||
| F2 - PARTS INCLUDED IN SERVICE KIT: | ||||
| F2 - PARTS INCLUDED IN SERVICE KIT: |
