| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-54-52311 | COVER | ||
| 2 | 419-54-62321 | COVER | ||
| 3 | 01245-00620 | SCREW | ||
| 4 | 20Y-43-41290 | COLLAR | ||
| 5 | 01643-70623 | WASHER | ||
| 6 | 423-40-52120 | COVER | ||
| 7 | 423-40-52140 | COVER | ||
| 8 | 01240-00620 | SCREW | ||
| 9 | 23S-55-51970 | WASHER |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa270 8 s/n a28001 up
- Operator's compartment and control system
- K0210 001034 steering column cover
Поиск по каталогу

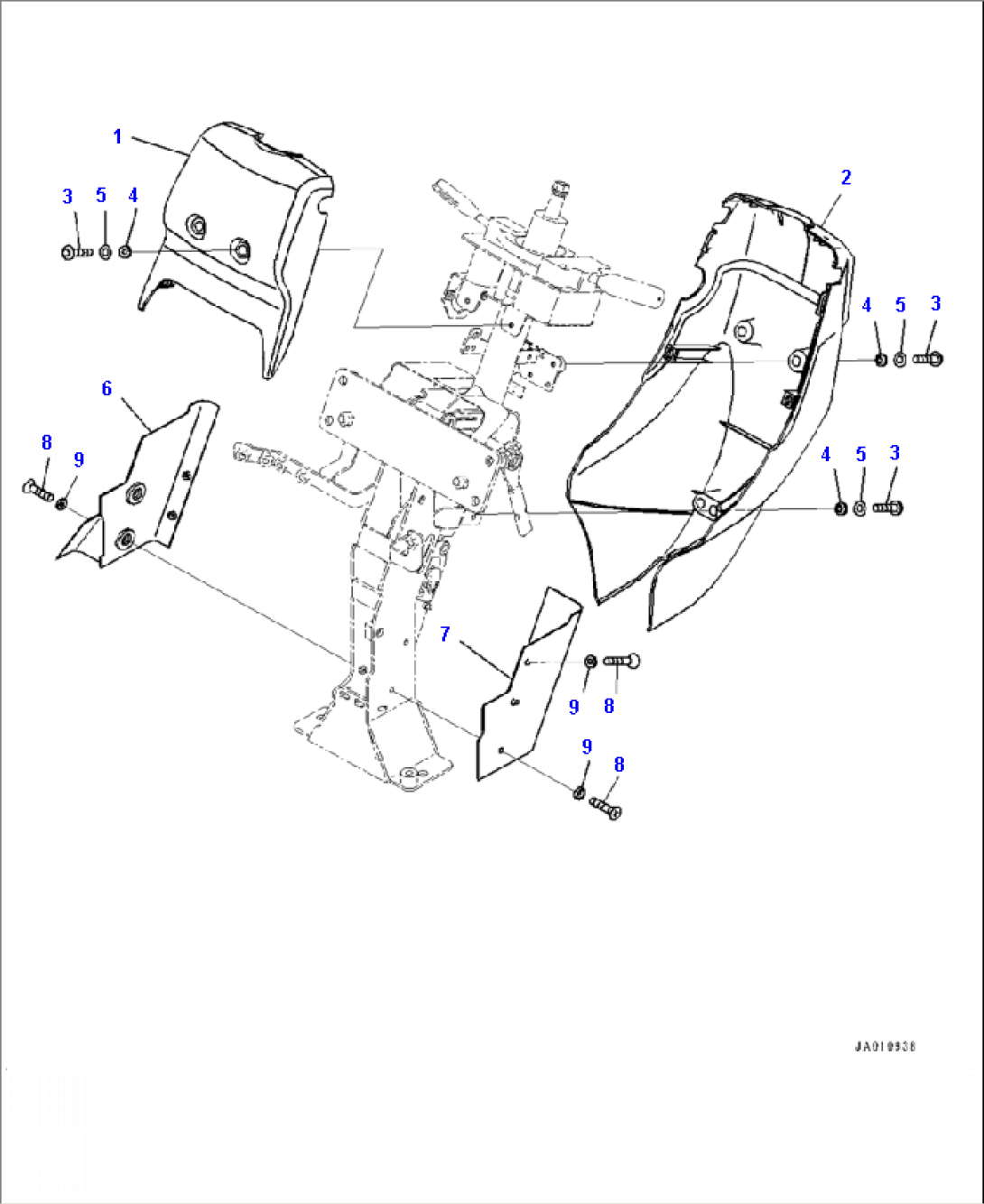

K0210-001034 STEERING COLUMN COVER
