| Item | Part No. | Part Name | Qty | Serial No. |

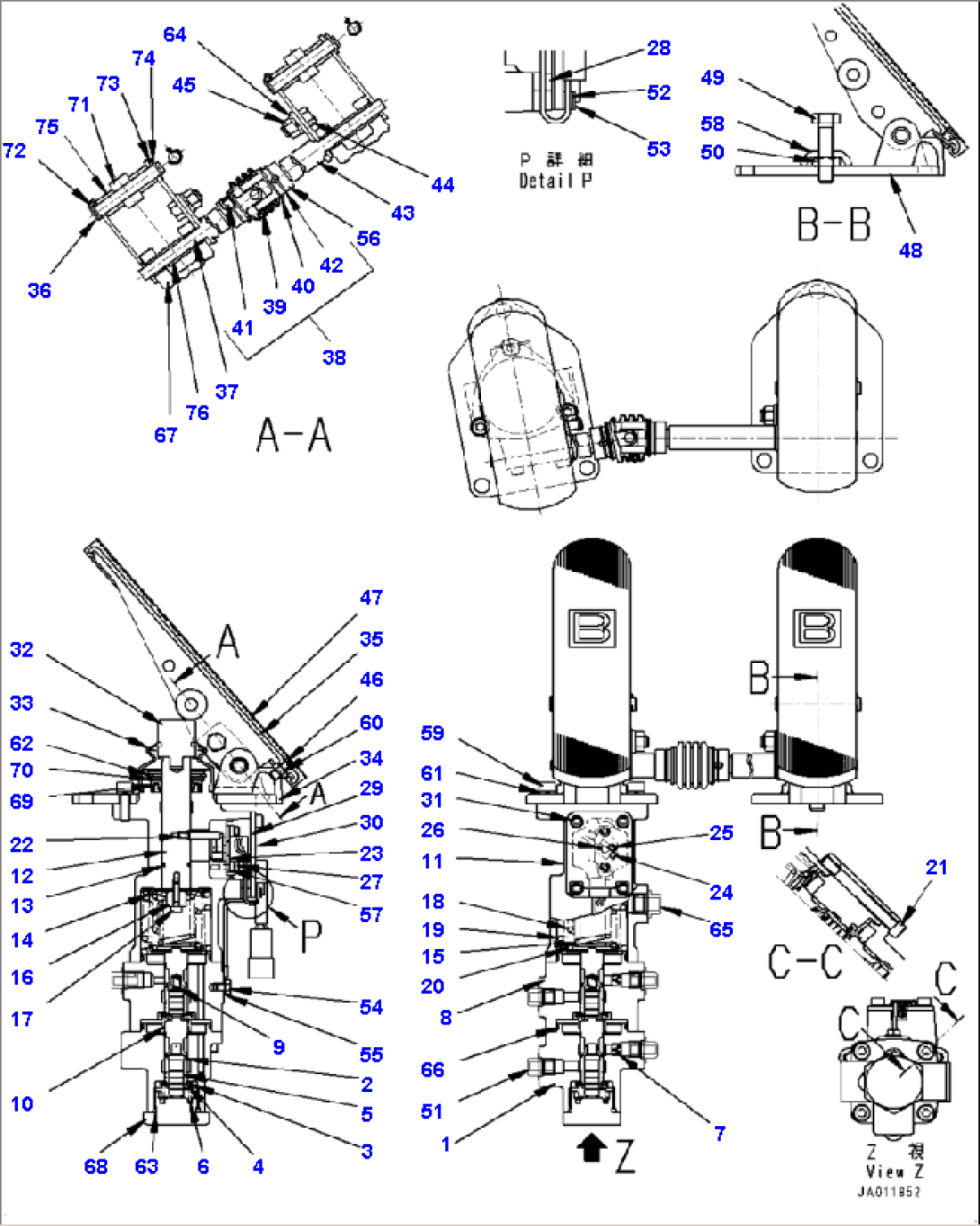

| 419-43-57100 | VALVE, BRAKE | |||
| 1 | (NSS) | BODY | ||
| 2 | (NSS) | SPOOL | ||
| 3 | XK2626350070 | SEAT | ||
| 4 | XK2629241190 | RING, SNAP | ||
| 5 | XK2629522170 | PLUNGER | ||
| 6 | XK2626400050 | SPRING | ||
| 7 | XK2626351600 | ORIFICE | ||
| 8 | (NSS) | BODY | ||
| 9 | XK2626740030 | SPRING | ||
| 10 | XK2629650030 | SPRING | ||
| 11 | (NSS) | COVER | ||
| 12 | (NSS) | SPOOL | ||
| 13 | (NSS) | O-RING | ||
| 14 | XK2626400080 | SEAT | ||
| 15 | XK2627620030 | SPRING | ||
| 16 | XK2629441040 | RETAINER | ||
| 17 | XK0060052000 | BOLT | ||
| 18 | XK2627620040 | SPRING | ||
| 19 | XK2627620050 | SPRING | ||
| 20 | XK2626350080 | SEAT | ||
| 21 | XK0060088000 | BOLT | ||
| 22 | (NSS) | PIN | ||
| 23 | (NSS) | PLATE | ||
| 24 | (NSS) | SENSOR | ||
| 25 | (NSS) | LEVER | ||
| 26 | (NSS) | SCREW | ||
| 27 | (NSS) | BOLT | ||
| 28 | (NSS) | GROMMET | ||
| 29 | (NSS) | GASKET | ||
| 30 | (NSS) | PLATE | ||
| 31 | (NSS) | BOLT | ||
| 32 | XK2627621060 | SEAT | ||
| 33 | XK2627620160 | DUST COVER | ||
| 34 | XK2627622010 | PLATE | ||
| 35 | XK2626352830 | PEDAL | ||
| 36 | XK2626404160 | PIN | ||
| 37 | XK2627629260 | SHAFT ASSEMBLY | ||
| 38 | XK2626639610 | JOINT ASSEMBLY | ||
| 39 | (NSS) | BOOT | ||
| 40 | (NSS) | RING, SNAP | ||
| 41 | (NSS) | PIN | ||
| 42 | (NSS) | RING, SNAP | ||
| 43 | XK2627629380 | SHAFT ASSEMBLY | ||
| 44 | XK0019102005 | BOLT | ||
| 45 | XK0195100805 | NUT | ||
| 46 | XK0156081805 | SCREW | ||
| 47 | XK1508060900 | COVER | ||
| 48 | (NSS) | PLATE | ||
| 49 | (NSS) | BOLT | ||
| 50 | (NSS) | NUT | ||
| 51 | (NSS) | CAP | ||
| 52 | XK2627621990 | GROMMET | ||
| 53 | XK2627622290 | PLATE | ||
| 54 | XK0013060805 | BOLT | ||
| 55 | XK0259061005 | WASHER | ||
| 56 | (NSS) | JOINT | ||
| 57 | (NSS) | WASHER | ||
| 58 | (NSS) | CAP | ||
| 59 | 01252-70825 | BOLT, HEXAGON SOCKET HEAD | ||
| 60 | 01580-10806 | NUT | ||
| 61 | 01602-20825 | WASHER | ||
| 62 | 04065-04518 | RING, SNAP | ||
| 63 | 07000-13032 | O-RING | ||
| 64 | 22T-34-11210 | WASHER | ||
| 65 | (NSS) | PLUG | ||
| 66 | 426-43-36780 | O-RING | ||
| 67 | 426-43-36790 | BUSHING | ||
| 68 | 426-43-36840 | PLUG | ||
| 69 | 426-43-36850 | SEAL, OIL | ||
| 70 | 426-43-36860 | PLATE | ||
| 71 | 426-43-36930 | COLLAR | ||
| 72 | 426-43-36960 | PIN | ||
| 73 | 426-43-36970 | WASHER | ||
| 74 | 426-43-36980 | PIN | ||
| 75 | 428-43-27640 | COLLAR | ||
| 76 | 428-43-27650 | COLLAR |
