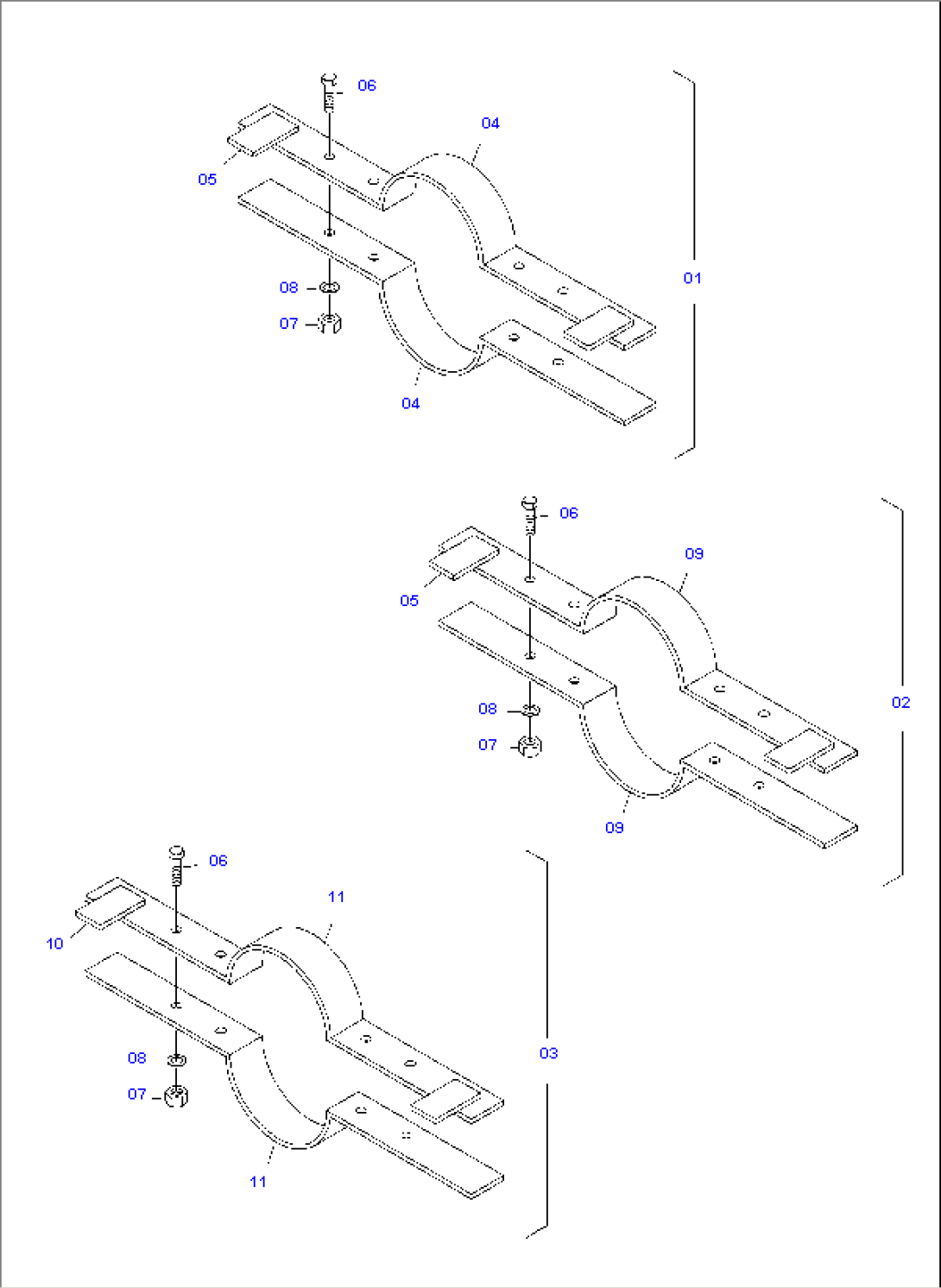

| Item | Part No. | Part Name | Qty | Serial No. |
| 01 | 934 611 40 | Installation tool assy. Boom cylinder | ||
| 02 | 923 828 40 | Installation tool assy. Stick cylinder | ||
| 03 | 909 374 40 | Installation tool assy. Bucket cylinder | ||
| 04 | 934 612 40 | Half clamp | ||
| 05 | 318 478 40 | Plate | ||
| 06 | 308 324 99 | Bolt | ||
| 07 | 332 359 99 | Nut | ||
| 08 | 340 471 99 | Washer | ||
| 09 | 923 822 40 | Half clamp | ||
| 10 | 652 962 40 | Plate | ||
| 11 | 909 371 40 | Half clamp |
