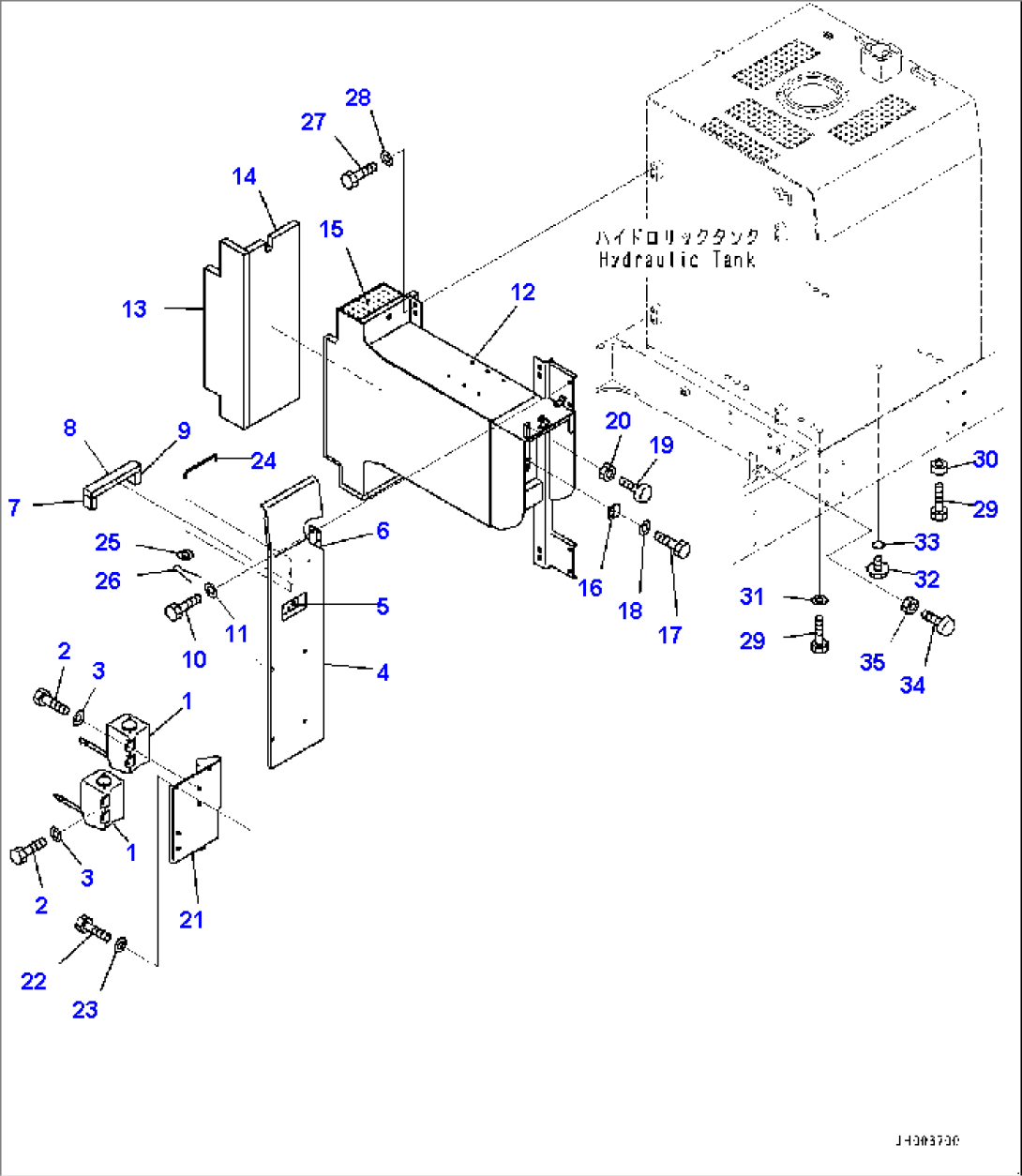

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 21T-06-11480 | Tank Assembly, Window Washer | 35406-@ | |
| 2 | 01010-80616 | Bolt | 35406-@ | |
| 3 | 209-72-12230 | Washer | 35406-@ | |
| 4 | 21N-53-32170 | Cover | 35406-@ | |
| 5 | 198-54-41982 | Lock Assembly, Welded | 35406-@ | |
| 6 | 21K-54-22460 | Hinge, Welded | 35406-@ | |
| 7 | 21N-54-32430 | Sheet | 35406-@ | |
| 8 | 21N-54-32960 | Sheet | 35406-@ | |
| 9 | 21N-54-32970 | Sheet | 35406-@ | |
| 10 | 01010-81230 | Bolt | 35406-@ | |
| 11 | 01643-31232 | Washer | 35406-@ | |
| 12 | 21N-54-44670 | Case | 35406-@ | |
| 13 | 21N-53-32180 | Sheet | 35406-@ | |
| 14 | 21N-54-32351 | Sheet | 35406-@ | |
| 15 | 21N-54-42420 | Plate | 35406-@ | |
| 16 | 209-54-63260 | Bracket | 35406-@ | |
| 17 | 01010-81230 | Bolt | 35406-@ | |
| 18 | 01643-31232 | Washer | 35406-@ | |
| 19 | 20Y-54-11611 | Stopper | 35406-@ | |
| 20 | 01580-11008 | Nut | 35406-@ | |
| 21 | 21N-54-31331 | Bracket | 35406-@ | |
| 22 | 01010-81225 | Bolt | 35406-@ | |
| 23 | 01643-31232 | Washer | 35406-@ | |
| 24 | 175-43-41261 | Rod | 35406-@ | |
| 25 | 01643-30623 | Washer | 35406-@ | |
| 26 | 04050-11612 | Pin, Cotter | 35406-@ | |
| 27 | 01010-81230 | Bolt | 35406-@ | |
| 28 | 175-54-34170 | Washer | 35406-@ | |
| 29 | 01010-82065 | Bolt | 35406-@ | |
| 30 | 21T-01-11130 | Washer | 35406-@ | |
| 31 | 01643-32060 | Washer | 35406-@ | |
| 32 | 07044-12412 | Plug | 35406-@ | |
| 33 | 07002-12434 | O-ring | 35406-@ | |
| 34 | 20Y-54-11611 | Stopper | 35406-@ | |
| 35 | 01580-11008 | Nut | 35406-@ |
