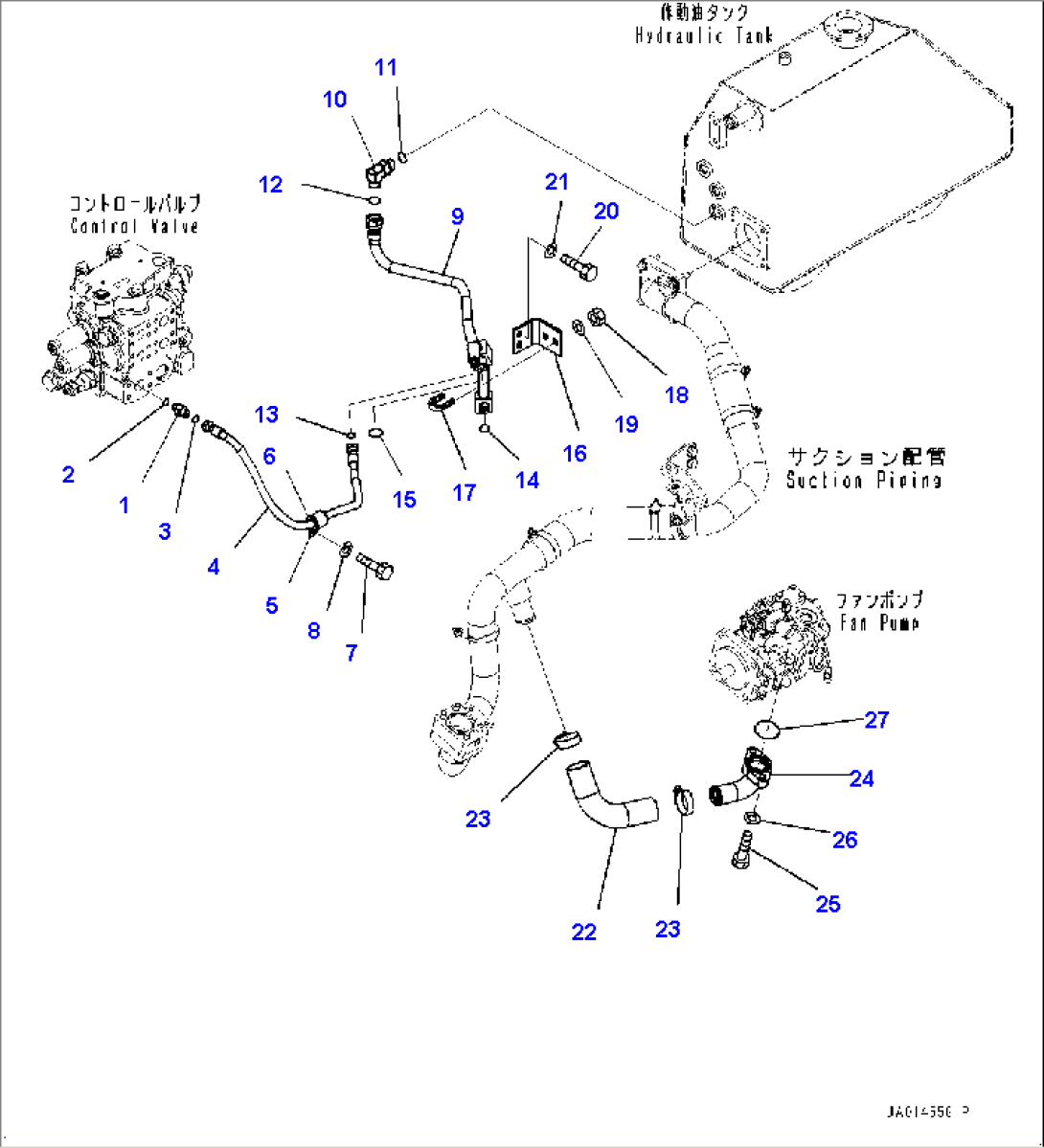

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-62-12520 | Union | 10001- | |
| 2 | 07002-11423 | O-ring | 10001- | |
| 3 | 02896-11009 | O-ring | 10001- | |
| 4 | 14U-62-22171 | Hose | 10001- | |
| 5 | 04434-52712 | Clip | 10001- | |
| 6 | 07095-20418 | Cushion | 10001- | |
| 7 | 01010-81225 | Bolt | 10001- | |
| 8 | 01643-31232 | Washer | 10001- | |
| 9 | 14U-62-22451 | Tube | 10001- | |
| 10 | 02782-10522 | Elbow | 10001- | |
| 11 | 07002-12434 | O-ring | 10001- | |
| 12 | 02896-11015 | O-ring | 10001- | |
| 13 | 02896-11009 | O-ring | 10001- | |
| 14 | 02896-11012 | O-ring | 10001- | |
| 15 | 02896-11018 | O-ring | 10001- | |
| 16 | 14U-62-21820 | Plate | 10001- | |
| 17 | 07283-32236 | Clip, Pipe | 10001- | |
| 18 | 01597-01009 | Nut | 10001- | |
| 19 | 01643-31032 | Washer | 10001- | |
| 20 | 01010-81225 | Bolt | 10001- | |
| 21 | 01643-31232 | Washer | 10001- | |
| 22 | 14U-62-22790 | Hose | 10001- | |
| 23 | 07289-00055 | Clamp | 10001- | |
| 24 | 14U-62-22431 | Tube | 10001- | |
| 25 | 01010-81240 | Bolt | 10001- | |
| 26 | 01643-31232 | Washer | 10001- | |
| 27 | 07000-13045 | O-ring | 10001- |
