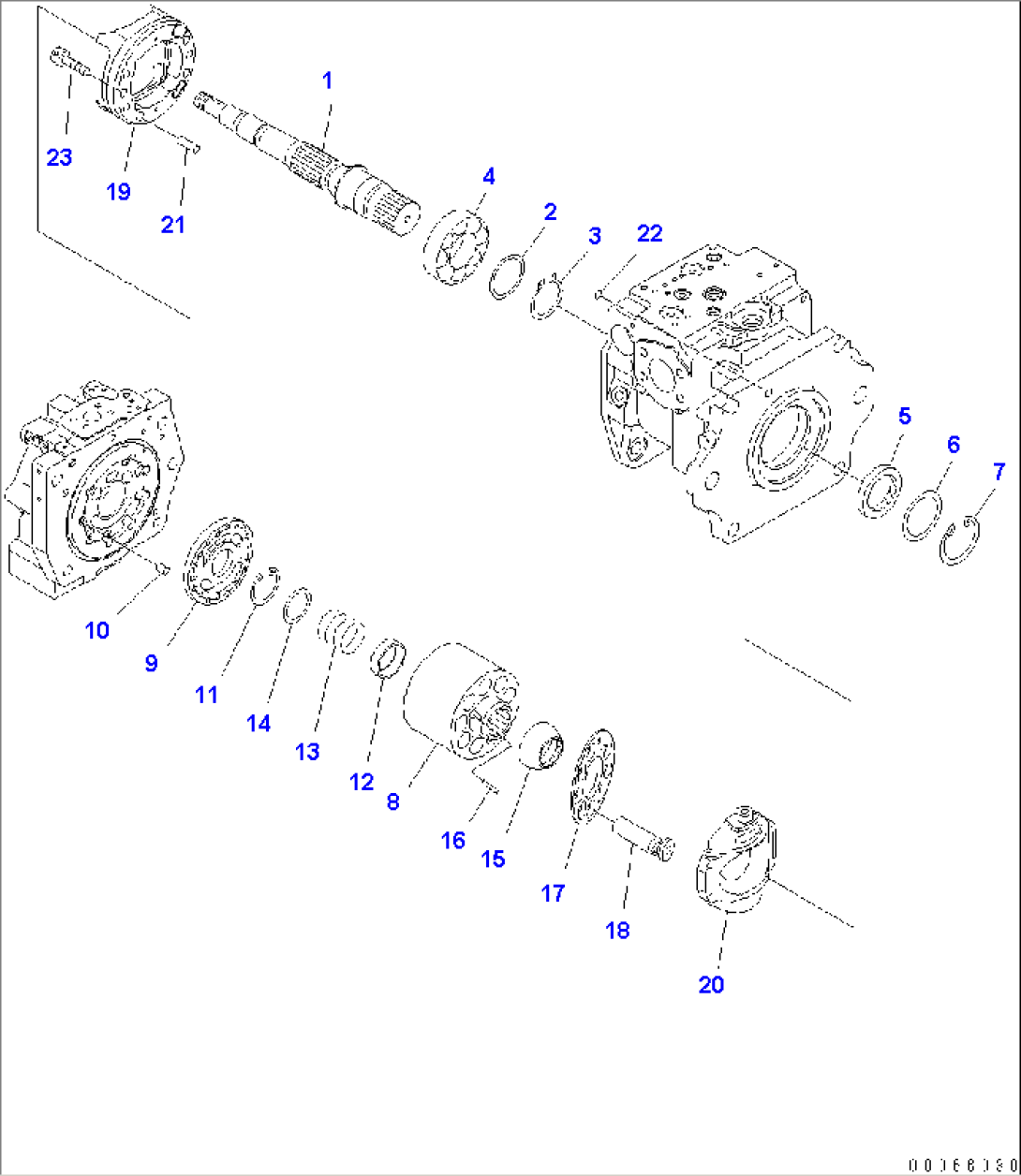

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-1H-00030) | PUMP ASSEMBLY, LOADER PUMP | H60051- | ||
| (708-1H-01031) | PUMP SUB ASSEMBLY | H60051- | ||
| 1 | (\7\708-1H-32130) | SHAFT | H60051- | |
| 2 | (\7\708-17-05010) | WASHER KIT | H60051- | |
| \6\ | WASHER, 3.0MM | H60051- | ||
| \6\ | WASHER, 3.1MM | H60051- | ||
| \6\ | WASHER, 3.2MM | H60051- | ||
| 3 | (\7\708-17-12780) | RING, SNAP | H60051- | |
| 4 | (\7\708-1H-22150) | BEARING | H60051- | |
| 5 | 708-27-22811 | SEAL, OIL | H60051- | |
| 6 | 708-2H-22160 | SPACER | H60051- | |
| 7 | 04065-08225 | RING, SNAP | H60051- | |
| (\7\708-2H-04750) | CYLINDER BLOCK ASSEMBLY | H60051- | ||
| 8 | \6\ | BLOCK | H60051- | |
| 9 | \6\ | PLATE | H60051- | |
| 10 | (\7\708-18-13230) | PIN | H60051- | |
| 11 | (\7\04065-05820) | RING, SNAP | H60051- | |
| 12 | (\7\708-2H-33140) | SEAT | H60051- | |
| 13 | (\7\708-2H-33150) | SPRING | H60051- | |
| 14 | (\7\708-2H-23141) | SEAT | H60051- | |
| 15 | (\7\708-2H-23350) | GUIDE | H60051- | |
| 16 | (\7\708-2H-23360) | PIN | H60051- | |
| 17 | (\7\708-2H-33343) | RETAINER | H60051- | |
| 18 | (\7\708-2H-33311) | PISTON SUB ASSEMBLY | H60051- | |
| (\7\708-2H-04690) | CRADLE SUB ASSEMBLY | H60051- | ||
| 19 | \6\ | CRADLE | H60051- | |
| 20 | \6\ | CAM | H60051- | |
| 21 | (\7\04020-01434) | PIN, DOWEL | H60051- | |
| 22 | (\7\07000-B1009) | O-RING | H60051- | |
| 23 | (\7\01252-61235) | BOLT | H60051- |
