| Item | Part No. | Part Name | Qty | Serial No. |
| (708-21-01040) | PUMP ASS'Y,(HPV35+35) | 2085-@ | ||
| (\2\708-21-10701) | PUMP ASS'Y,(HPV35+35) | (.-2084) | ||
| (\2\708-21-10700) | PUMP ASS'Y,(HPV35+35) | (2001-.) | ||

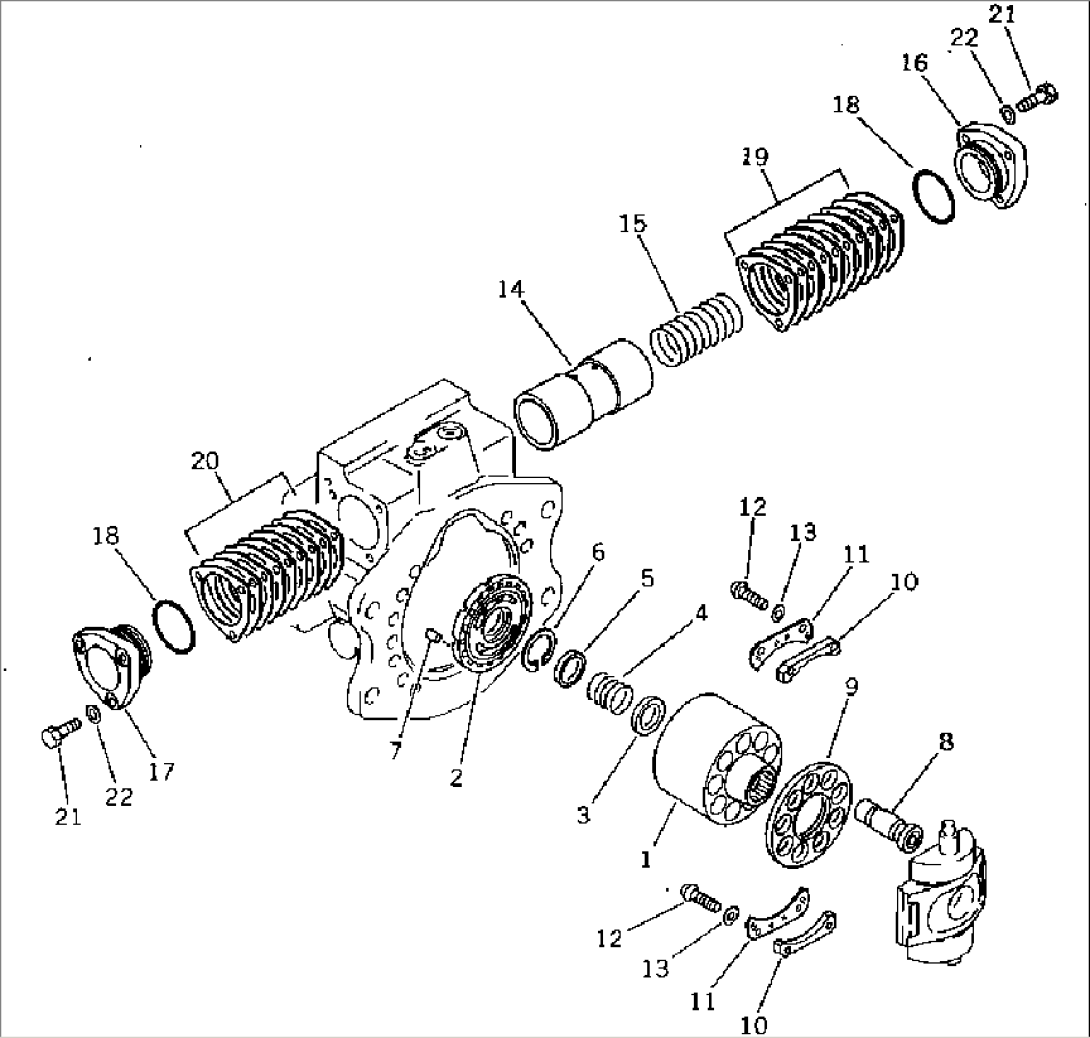

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 TO 6231. | ||||
| (708-21-11200) | PUMP SUB ASS'Y | 2001-. | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6203 TO 6211. | ||||
| (\7\708-21-05060) | BLOCK ASS'Y | 2001-. | ||
| 1 | \6\ | BLOCK,CYLINDER | 2001-. | |
| 2 | \6\ | PLATE,VALVE | 2001-. | |
| 3 | (\7\708-21-13130) | WASHER | 2001-. | |
| 4 | (\7\708-21-13140) | SPRING | 2001-. | |
| 5 | (\7\708-21-13120) | WASHER | 2001-. | |
| 6 | (\7\708-21-13150) | RING,SNAP | 2001-. | |
| 7 | (\7\720-68-19610) | PIN | 2001-. | |
| 8 | (\7\708-21-13350) | PISTON SUB ASS'Y | 2001-. | |
| 9 | (\7\708-21-13340) | RETAINER,SHOE | 2001-. | |
| 10 | (\7\708-21-05020) | SPACER KIT | 2001-. | |
| 10 | \6\ | SPACER | 2001-. | |
| 10 | \6\ | SPACER | 2001-. | |
| 10 | \6\ | SPACER | 2001-. | |
| 11 | (\7\708-21-13450) | RETAINER,BEARING | 2001-. | |
| 12 | (\7\708-23-13460) | SCREW | 2001-. | |
| 13 | (\7\01643-30623) | WASHER | 2001-. | |
| 14 | (\7\708-21-14110) | PISTON | 2001-. | |
| 15 | 708-21-14130 | SPRING | 2001-. | |
| 16 | \6\ | CAP | 2001-. | |
| 17 | \6\ | CAP | 2001-. | |
| 18 | 07000-03045 | O-RING | 2001-. | |
| 19 | (\7\708-21-05030) | SHIM KIT | 2001-. | |
| 19 | \6\ | SHIM | 2001-. | |
| 19 | \6\ | SHIM | 2001-. | |
| 19 | \6\ | SHIM | 2001-. | |
| 19 | \6\ | SHIM | 2001-. | |
| 20 | (\7\708-21-05040) | SHIM KIT | 2001-. | |
| 20 | \6\ | SHIM | 2001-. | |
| 20 | \6\ | SHIM | 2001-. | |
| 20 | \6\ | SHIM | 2001-. | |
| 20 | \6\ | SHIM | 2001-. | |
| 21 | 01010-30830 | BOLT | 2001-. | |
| 22 | 01643-30823 | WASHER | 2001-. |
