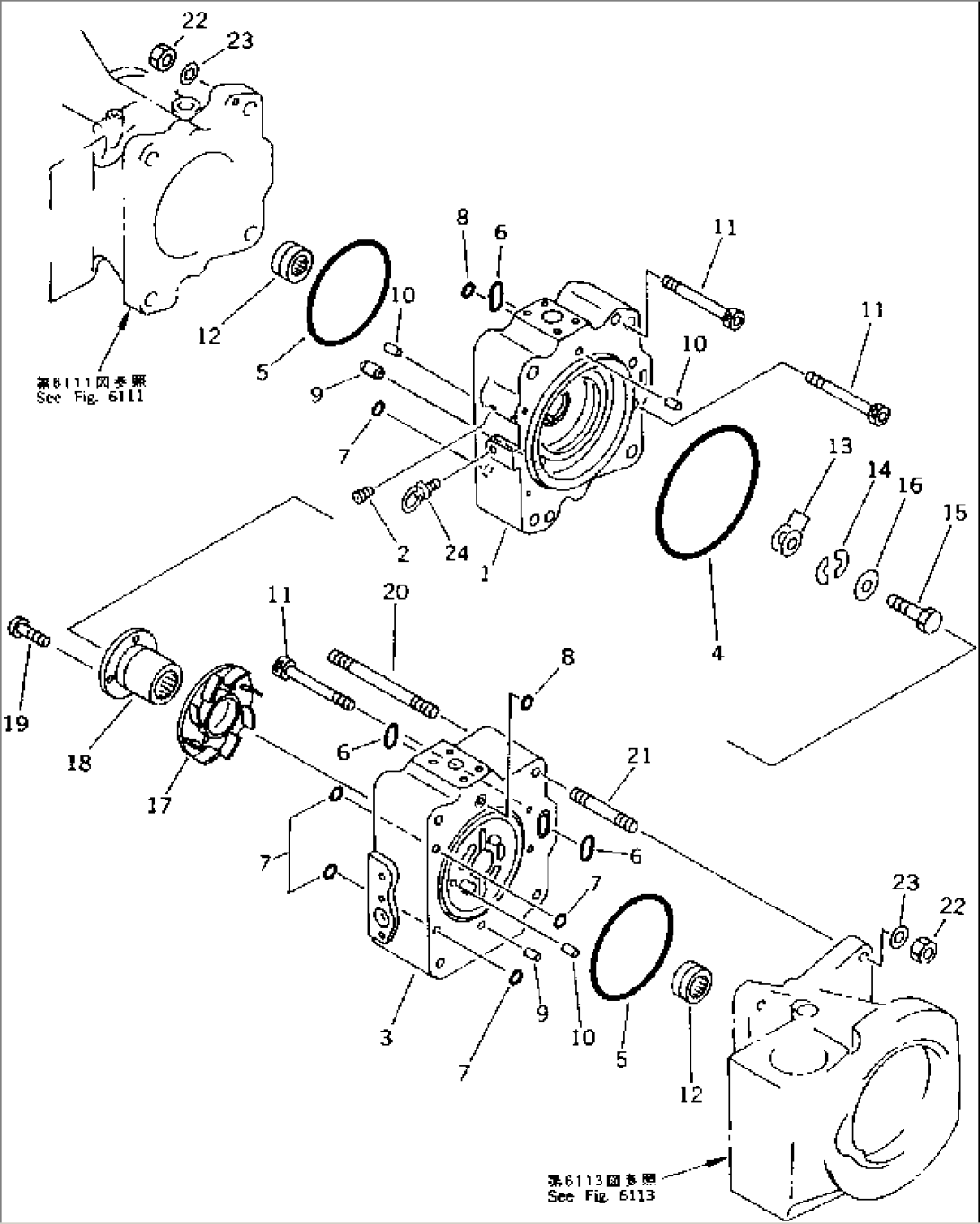

| Item | Part No. | Part Name | Qty | Serial No. |
| (708-25-04051) | PUMP ASS'Y | .- | ||
| (\0\708-25-04014) | PUMP ASS'Y | K20001-. | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6101 TO 6151. | ||||
| (708-25-04151) | PUMP SUB ASS'Y | .- | ||
| (\0\708-25-04112) | PUMP SUB ASS'Y | K20001-. | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6111 TO 6113. | ||||
| (\7\708-25-00390) | END CAP ASS'Y,FRONT | K20001- | ||
| 1 | \6\ | CAP,END¤ FRONT | K20001- | |
| 2 | \6\ | PLUG | K20001- | |
| 3 | (\7\708-25-12620) | CAP,END¤ REAR | K20001- | |
| 4 | (\7\07000-05165) | O-RING | K20001- | |
| 5 | (\7\07000-02135) | O-RING | K20001- | |
| 6 | (\7\07000-03032) | O-RING | K20001- | |
| 7 | (\7\07000-11009) | O-RING | K20001- | |
| 8 | (\7\07000-12015) | O-RING | K20001- | |
| 9 | (\7\6130-21-1910) | PIN | K20001- | |
| 10 | (\7\720-68-19610) | PIN | K20001- | |
| 11 | (\7\708-25-12530) | BOLT | K20001- | |
| 12 | (\7\708-2E-12260) | BEARING | K20001- | |
| 13 | (\7\708-25-05021) | SHIM KIT | K20001- | |
| \6\ | SHIM¤ 0.10MM | K20001- | ||
| \6\ | SHIM¤ 0.15MM | K20001- | ||
| \6\ | SHIM¤ 0.20MM | K20001- | ||
| \6\ | SHIM¤ 0.50MM | K20001- | ||
| 14 | (\7\708-25-12950) | PLATE | K20001- | |
| 15 | (\7\706-74-40320) | BOLT | K20001- | |
| 16 | (\7\01643-31032) | WASHER | K20001- | |
| 17 | (\7\708-25-12542) | IMPELLER | K20001- | |
| 18 | (\7\708-25-12552) | COUPLING | K20001- | |
| 19 | (\7\706-73-42270) | SCREW | K20001- | |
| 20 | (\7\01141-81620) | STUD | K20001- | |
| 21 | (\7\01140-81645) | STUD | K20001- | |
| 22 | (\7\01582-01613) | NUT | K20001- | |
| 23 | (\7\01643-31645) | WASHER | K20001- | |
| 24 | 04530-01018 | BOLT,EYE | K20001- |
