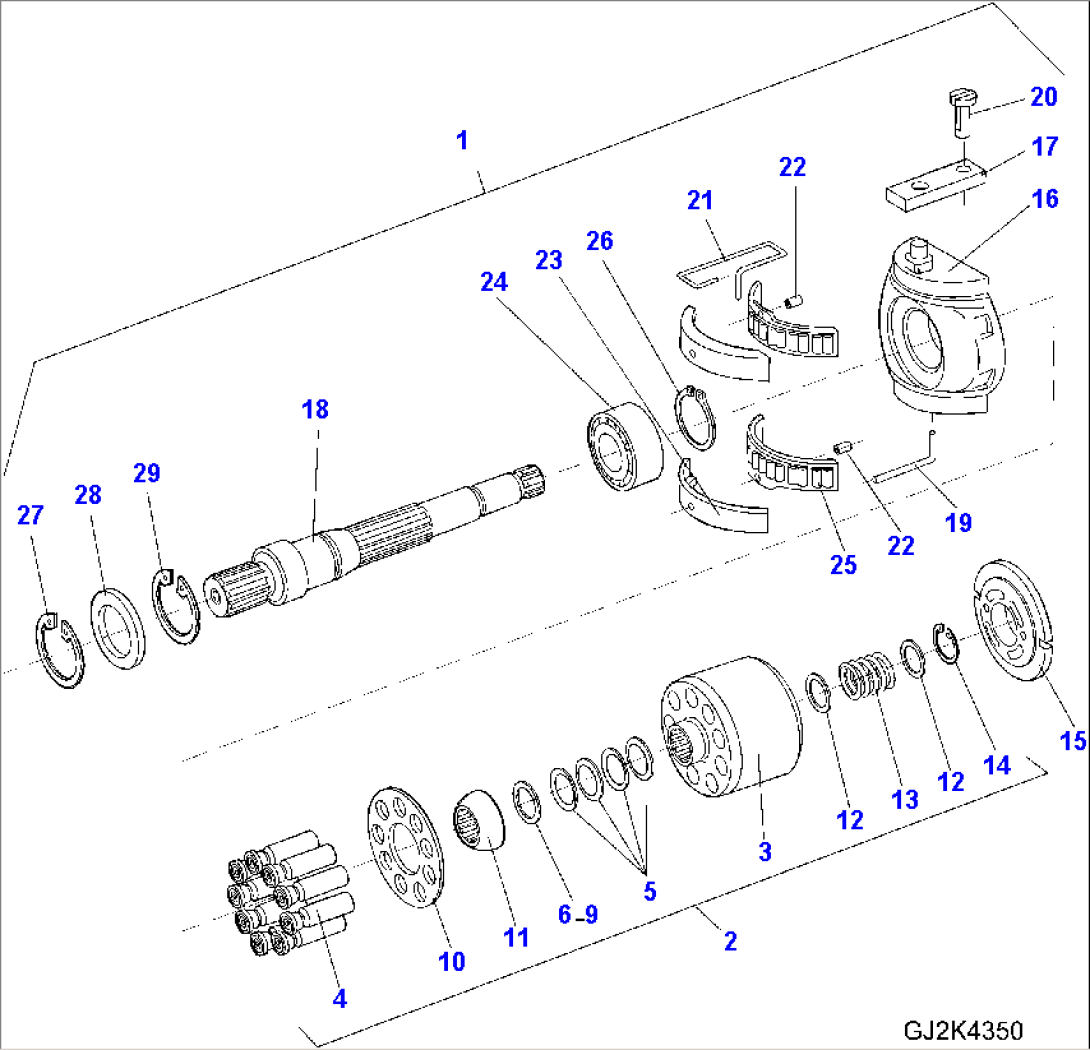

| Item | Part No. | Part Name | Qty | Serial No. |
| (42W-17-21010) | HYDRAULIC PUMP | H00104- | ||
| (42W-17-21050) | HYDRAULIC PUMP | H00051-H00103 | ||
| (42W-17-21100) | HYDRAULIC PUMP | ..- | ||
| (42W-17-21080) | HYDRAULIC PUMP | H00051-. | ||
| 1 | 42U-17-H0P74 | PUMP | H00051- | |
| 2 | 42W-17-H0P40 | PUMP KIT | H00051- | |
| 3 | 42W-17-H0P50 | BUSHING | H00051- | |
| 4 | 42W-17-H0P51 | PISTON | H00051- | |
| 5 | 42R-17-H0T40 | CUP SPRING | H00051- | |
| 5 | \1\42W-17-H0P52 | CUP SPRING | H00051- | |
| 6 | 42W-17-H0P53 | SHIM | H00051- | |
| 7 | 42W-17-H0P54 | SHIM | H00051- | |
| 8 | 42W-17-H0P55 | SHIM | H00051- | |
| 9 | 42W-17-H0P56 | SHIM | H00051- | |
| 10 | 42W-17-H0S00 | PLATE | H00051- | |
| 10 | \1\42W-17-H0P57 | PLATE | H00051- | |
| 11 | 42W-17-H0P58 | BALL | H00051- | |
| 12 | 42W-17-H0P59 | PLAIN WASHER | H00051- | |
| 13 | 42W-17-H0P60 | COMPRESSION SPRING | H00051- | |
| 14 | 42W-17-H0P61 | CIRCLIP | H00051- | |
| 15 | 42W-17-H0P41 | PLATE | H00051- | |
| 16 | 42W-17-H0P42 | CRADLE | H00051- | |
| 17 | 42W-17-H0P43 | SLIDE | H00051- | |
| 18 | 42W-17-H0P44 | SHAFT | H00051- | |
| 19 | 42U-17-H0S28 | WIRE | H00051- | |
| 20 | 42U-17-H0S29 | LINK PIN | H00051- | |
| 21 | 42W-17-H0P45 | WIRE | H00051- | |
| 22 | ! | NOT USED | H00051- | |
| 23 | 42W-17-H0P46 | BEARING KIT | H00051- | |
| 24 | 42W-17-H0P47 | ROLLER BEARING | H00051- | |
| 25 | 42W-17-H0R15 | CAGE ASSEMBLY | H00051- | |
| 26 | 42U-17-H0S43 | CIRCLIP | H00051- | |
| 27 | 42U-17-H0P77 | CIRCLIP | H00051- | |
| 28 | 42W-17-H0P49 | SHAFT SEAL | H00051- | |
| 29 | 42U-17-H0P75 | CIRCLIP | H00051- |
