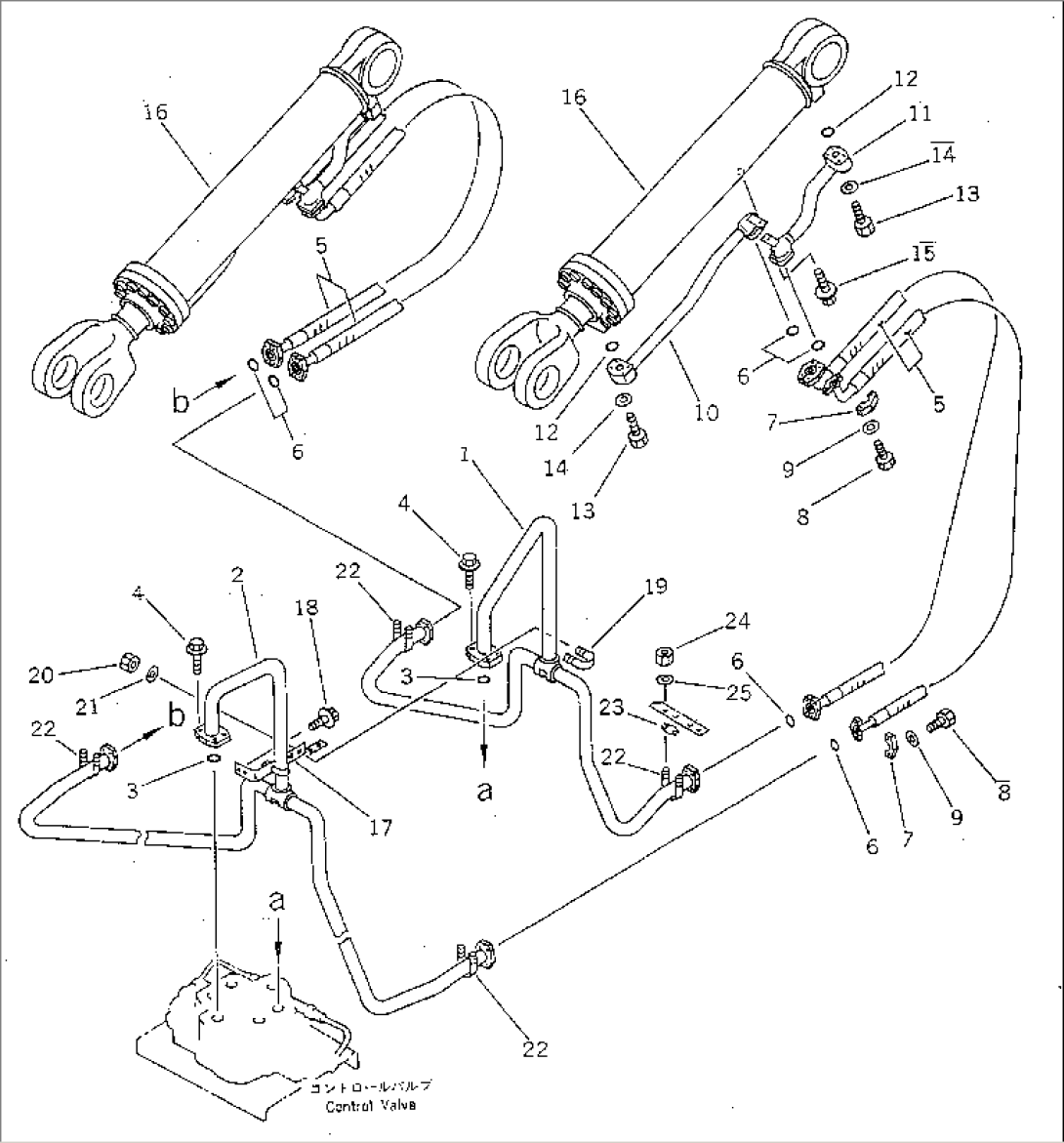

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-18240 | TUBE | 20001- | |
| 2 | 421-62-18260 | TUBE | 20001- | |
| 3 | 07000-13045 | O-RING | 20001- | |
| 4 | 01435-01240 | BOLT | 20001- | |
| 5 | 07124-01014 | HOSE | 20001- | |
| 5 | 07124-21014 | HOSE,(FOR LOG GRAPPLE) | 20001- | |
| 6 | 07000-13032 | O-RING | 10001- | |
| 7 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 8 | 07372-21035 | BOLT | 10001- | |
| 9 | 01643-51032 | WASHER | 10001- | |
| 10 | 421-62-13163 | TUBE | 20001- | |
| 11 | 421-62-13173 | TUBE | 20001- | |
| 12 | 07000-13035 | O-RING | 10001- | |
| 13 | 01010-51060 | BOLT | 10001- | |
| 14 | 01643-51032 | WASHER | 10001- | |
| 15 | 01435-01235 | BOLT | 20001- | |
| 16 | (707-01-03050) | CYLINDER ASS'Y,LIFT (SEE FIG.6301A) | 20001- | |
| 17 | 421-62-18270 | BRACKET | 20001- | |
| 18 | 01435-01030 | BOLT | 20001- | |
| 19 | 07283-33450 | CLIP | 20001- | |
| 20 | 01599-01011 | NUT | 20001- | |
| 21 | 01643-31032 | WASHER | 20001- | |
| 22 | 07283-33450 | CLIP | 20001- | |
| 23 | 07283-53444 | SEAT | 20001- | |
| 24 | 01599-01011 | NUT | 20001- | |
| 25 | 01643-31032 | WASHER | 20001- |
