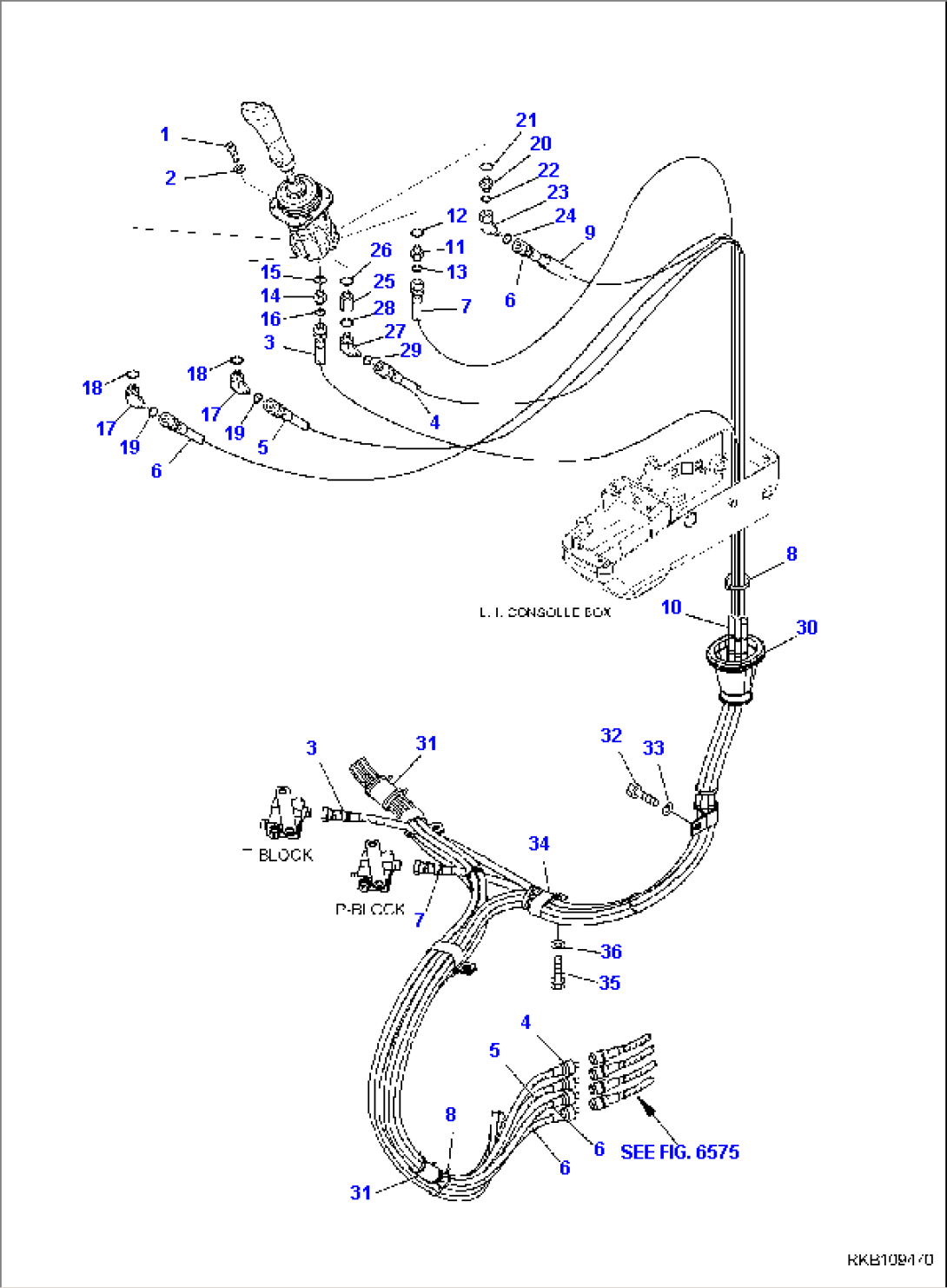

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01252-70620 | BOLT | F01521- | |
| 2 | 01602-20619 | WASHER, SPRING | F01521- | |
| 3 | 22M-62-R3271 | HOSE | F01521- | |
| 4 | 22J-62-R8330 | HOSE | F01521- | |
| 5 | 22J-62-R8320 | HOSE | F01521- | |
| 6 | 22J-62-R8311 | HOSE | F01521- | |
| 7 | 22M-62-R3271 | HOSE | F01521- | |
| 8 | 08034-20519 | CLAMP | F01521- | |
| 9 | 08210-00401 | PROTECTION | F01521- | |
| 10 | 08210-01201 | TUBE, SPIRAL | F01521- | |
| 11 | 21W-09-R1970 | UNION | F01521- | |
| 12 | 21D-09-69960 | O-RING | F01521- | |
| 13 | 02896-11008 | O-RING | F01521- | |
| 14 | 226-09-12690 | UNION | F01521- | |
| 15 | 21D-09-69960 | O-RING | F01521- | |
| 16 | 02896-11008 | O-RING | F01521- | |
| 17 | 37D-09-6P371 | ELBOW | F01521- | |
| 18 | 21D-09-69960 | O-RING | F01521- | |
| 19 | 02896-11008 | O-RING | F01521- | |
| 20 | 226-09-12690 | UNION | F01521- | |
| 21 | 21D-09-69960 | O-RING | F01521- | |
| 22 | 02896-11008 | O-RING | F01521- | |
| 23 | 37D-09-6M340 | ELBOW | F01521- | |
| 24 | 02896-11008 | O-RING | F01521- | |
| 25 | 22L-09-R6170 | UNION | F01521- | |
| 26 | 21D-09-69960 | O-RING | F01521- | |
| 27 | 37D-09-6P371 | ELBOW | F01521- | |
| 28 | 21D-09-69960 | O-RING | F01521- | |
| 29 | 02896-11008 | O-RING | F01521- | |
| 30 | 22M-62-21341 | GASKET | F01521- | |
| 31 | 22L-09-R4480 | PROTECTION | F01521- | |
| 32 | 01010-81020 | BOLT | F01521- | |
| 33 | 01643-11032 | WASHER | F01521- | |
| 34 | 04435-51010 | CLAMP | F01521- | |
| 35 | 01010-81020 | BOLT | F01521- | |
| 36 | 01643-11032 | WASHER | F01521- | |
| SEE FIG. 6575 |
