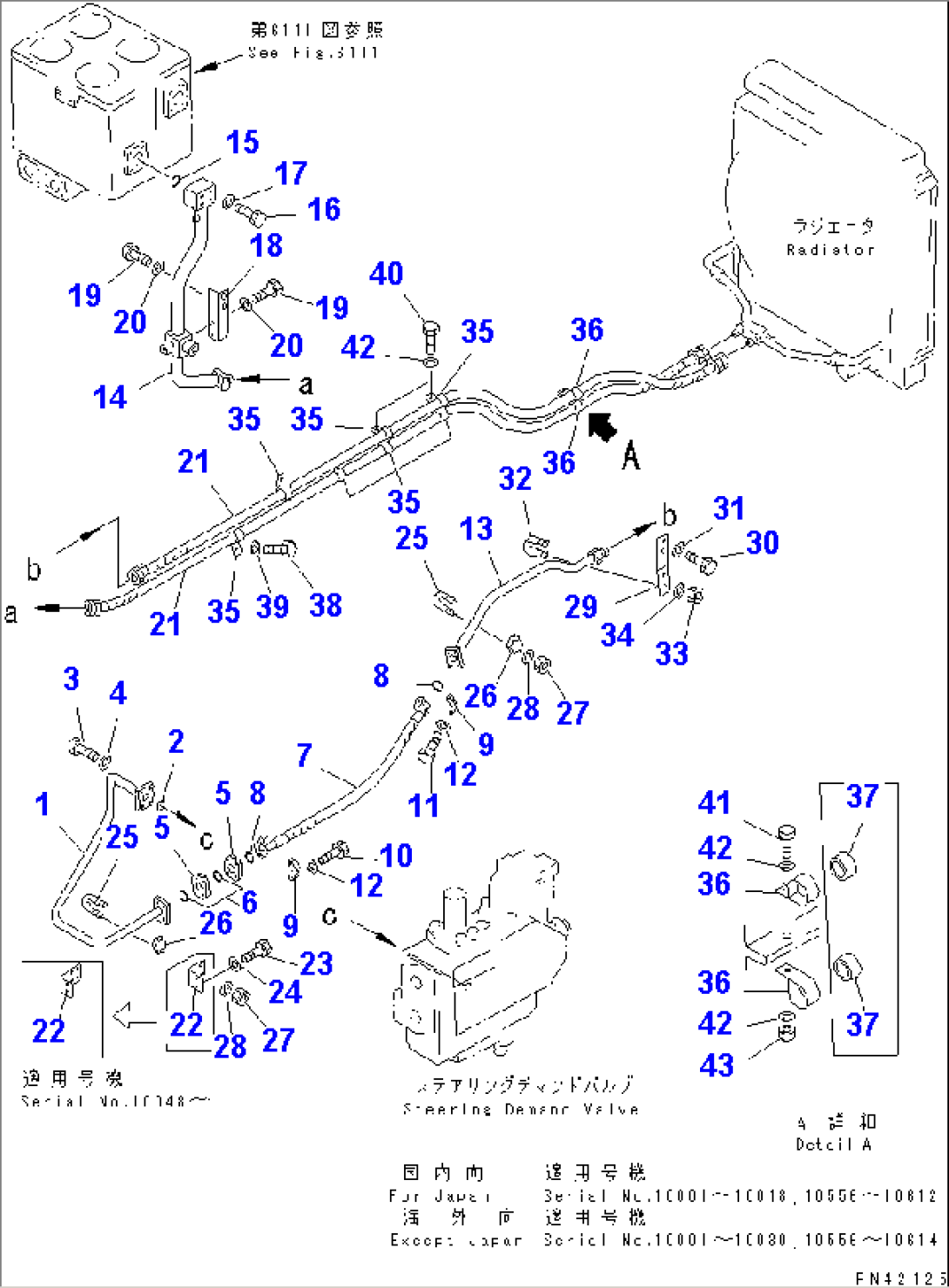

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-12751 | TUBE | 10001- | |
| 1 | 427-N35-1160 | TUBE,(FOR LINE FILTER) | 10501- | |
| 2 | 07000-F3048 | O-RING | 10054- | |
| 2 | \0\07000-03048 | O-RING | 10001-10053 | |
| 3 | 01011-81230 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 427-62-12810 | FLANGE | 10001-10499 | |
| 6 | 07000-33048 | O-RING | 10054-10499 | |
| 6 | \0\07000-03048 | O-RING | 10001-10053 | |
| 7 | 07119-01417 | HOSE | 10001- | |
| 8 | 07000-F3048 | O-RING | 10054- | |
| 8 | \0\07000-03048 | O-RING | 10001-10053 | |
| 9 | 07371-31465 | FLANGE,SPLIT | 10001- | |
| 10 | 07372-21240 | BOLT | 10501- | |
| 10 | 07372-21260 | BOLT | 10001-10499 | |
| 11 | 07372-21240 | BOLT | 10001- | |
| 12 | 01643-51232 | WASHER | 10001- | |
| 13 | 427-62-14290 | TUBE | 10001- | |
| 14 | 427-62-14341 | TUBE | 10052- | |
| 14 | 427-62-14340 | TUBE | 10001-10051 | |
| 15 | 07000-F2070 | O-RING | 10054- | |
| 15 | \0\07000-02070 | O-RING | 10001-10053 | |
| 16 | 01011-81205 | BOLT | 10001- | |
| 17 | 01643-31232 | WASHER | 10001- | |
| 18 | 427-62-14380 | ANGLE | 10001- | |
| 19 | 01435-01220 | BOLT | 10501- | |
| 19 | \0\01010-51225 | BOLT | 10001-10499 | |
| 20 | 01643-31232 | WASHER | 10001-10499 | |
| 21 | 07102-21435 | HOSE | 10501- | |
| 21 | 07102-21437 | HOSE | 10001-10499 | |
| 22 | 427-62-12563 | PLATE | 10001- | |
| 22 | (\2\427-62-12562) | PLATE | (10001-10047) | |
| 23 | 01010-81230 | BOLT | 10001- | |
| 24 | 124-54-26540 | WASHER | 10001- | |
| 25 | 07283-34354 | CLIP | 10048- | |
| 25 | 07283-34354 | CLIP | 10001-10047 | |
| 26 | 07283-54353 | SEAT | 10048- | |
| 26 | 07283-54353 | SEAT | 10001-10047 | |
| 27 | 01597-01009 | NUT | 10048- | |
| 27 | 426-09-11160 | NUT | 10001-10047 | |
| 28 | 01643-31032 | WASHER | 10048- | |
| 28 | 01643-31032 | WASHER | 10001-10047 | |
| 29 | 427-62-14361 | PLATE | 10052- | |
| 29 | 427-62-14360 | PLATE | 10001-10051 | |
| 30 | 01435-01225 | BOLT | 10501- | |
| 30 | \0\01010-51230 | BOLT | 10001-10499 | |
| 31 | 01643-31232 | WASHER | 10001-10499 | |
| 32 | 07283-34346 | CLIP | 10001- | |
| 33 | 01597-01009 | NUT | 10001- | |
| 34 | 01643-31032 | WASHER | 10001- | |
| 35 | 19M-60-12720 | CLIP,(FOR JAPAN) | 10613- | |
| 35 | \0\21T-06-11950 | CLIP,(FOR JAPAN) | 10019-10612 | |
| 35 | \0\21K-03-11190 | CLIP,(FOR JAPAN) | 10001-10018 | |
| 35 | 19M-60-12720 | CLIP,(EXCEPT JAPAN) | 10615- | |
| 35 | \0\21T-06-11950 | CLIP,(EXCEPT JAPAN) | 10031-10614 | |
| 35 | \0\21K-03-11190 | CLIP,(EXCEPT JAPAN) | 10001-10030 | |
| 36 | 19M-60-12720 | CLIP,(FOR JAPAN) | 10613- | |
| 36 | 21K-03-11190 | CLIP,(FOR JAPAN) | 10556-10612 | |
| 36 | 21T-06-11950 | CLIP,(FOR JAPAN) | 10019-10555 | |
| 36 | \0\21K-03-11190 | CLIP,(FOR JAPAN) | 10001-10018 | |
| 36 | 19M-60-12720 | CLIP,(EXCEPT JAPAN) | 10615- | |
| 36 | 21K-03-11190 | CLIP,(EXCEPT JAPAN) | 10556-10614 | |
| 36 | 21T-06-11950 | CLIP,(EXCEPT JAPAN) | 10031-10555 | |
| 36 | \0\21K-03-11190 | CLIP,(EXCEPT JAPAN) | 10001-10030 | |
| 37 | 427-62-12440 | RUBBER,(FOR JAPAN) | 10556-10612 | |
| 37 | 427-62-12440 | RUBBER,(FOR JAPAN) | 10001-10018 | |
| 37 | 427-62-12440 | RUBBER,(EXCEPT JAPAN) | 10556-10614 | |
| 37 | 427-62-12440 | RUBBER,(EXCEPT JAPAN) | 10001-10030 | |
| 38 | 01010-81220 | BOLT | 10001- | |
| 39 | 01643-31232 | WASHER | 10001- | |
| 40 | 01010-81250 | BOLT | 10613- | |
| 40 | 01010-51235 | BOLT | 10001-10612 | |
| 41 | 01010-81250 | BOLT | 10613- | |
| 41 | 01010-51245 | BOLT | 10556-10612 | |
| 41 | 01010-51235 | BOLT | 10001-10555 | |
| 42 | 01643-31232 | WASHER | 10001- | |
| 43 | 01580-11210 | NUT | 10001- |
