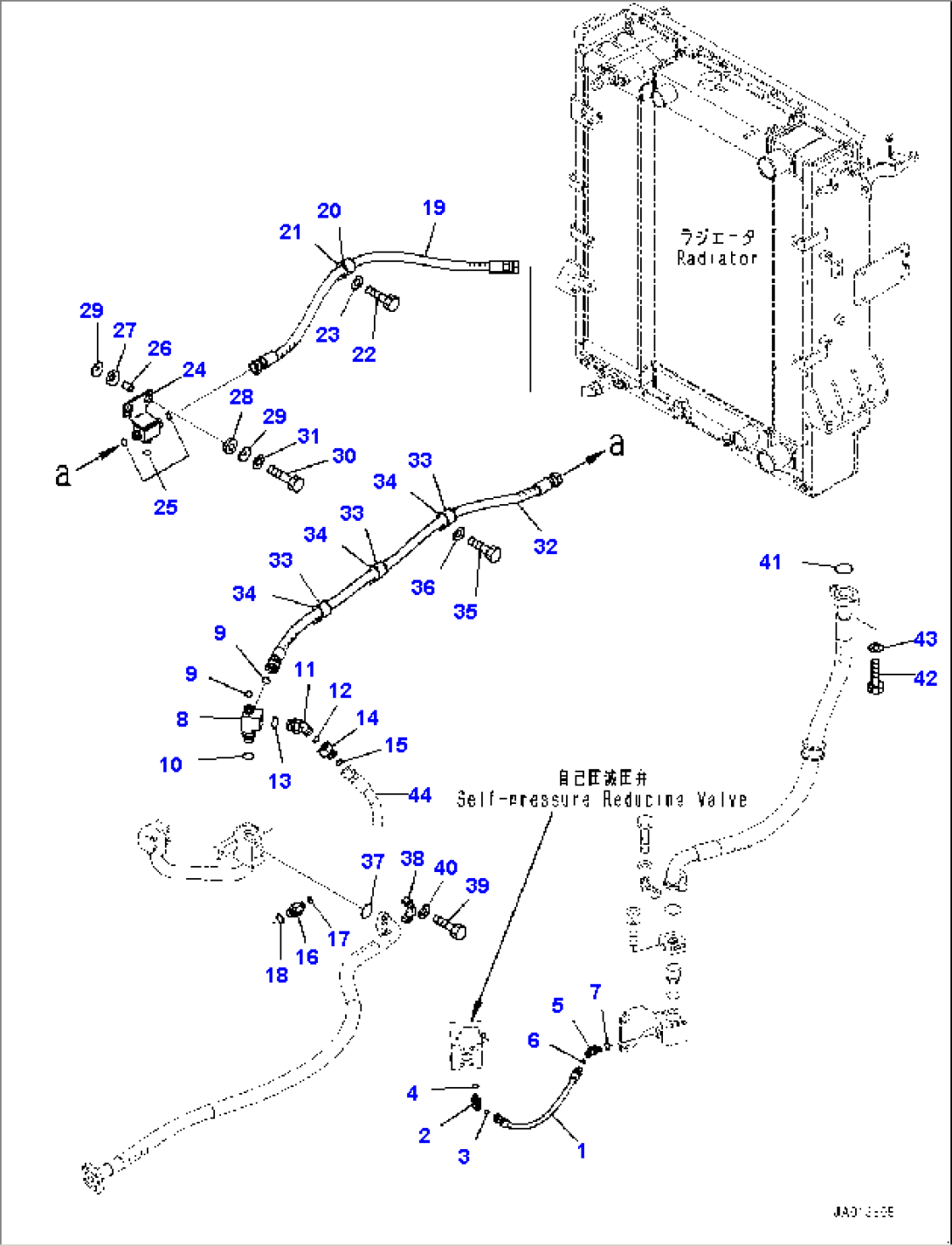

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02774-00204 | Hose | 80001- | |
| 2 | 02783-10210 | Elbow | 80001- | |
| 3 | 02896-11008 | O-ring | 80001- | |
| 4 | 07002-11423 | O-ring | 80001- | |
| 5 | 02783-10210 | Elbow | 80001- | |
| 6 | 02896-11008 | O-ring | 80001- | |
| 7 | 07002-11423 | O-ring | 80001- | |
| 8 | 419-62-52820 | Tee | 80001- | |
| 9 | 02896-11015 | O-ring | 80001- | |
| 10 | 07002-12434 | O-ring | 80001- | |
| 11 | 02783-10522 | Elbow | 80001- | |
| 12 | 02896-11015 | O-ring | 80001- | |
| 13 | 07002-12434 | O-ring | 80001- | |
| 14 | 419-62-52810 | Union | 80001- | |
| 15 | 02896-11015 | O-ring | 80001- | |
| 16 | 425-875-3120 | Union | 80001- | |
| 17 | 02896-11009 | O-ring | 80001- | |
| 18 | 07002-12034 | O-ring | 80001- | |
| 19 | 419-62-52690 | Hose | 80001- | |
| 20 | 04434-53211 | Clip | 80001- | |
| 21 | 07095-20523 | Cushion | 80001- | |
| 22 | 01010-81025 | Bolt | 80001- | |
| 23 | 01643-31032 | Washer | 80001- | |
| 24 | 419-62-52790 | Tee | 80001- | |
| 25 | 02896-11015 | O-ring | 80001- | |
| 26 | 417-54-13470 | Spacer | 80001- | |
| 27 | 415-64-13130 | Cushion | 80001- | |
| 28 | 419-43-17930 | Cushion | 80001- | |
| 29 | 415-64-13120 | Washer | 80001- | |
| 30 | 01010-81055 | Bolt | 80001- | |
| 31 | 01643-31032 | Washer | 80001- | |
| 32 | 419-62-52780 | Hose | 80001- | |
| 33 | 04434-53211 | Clip | 80001- | |
| 34 | 07095-20522 | Cushion | 80001- | |
| 35 | 01010-81025 | Bolt | 80001- | |
| 36 | 01643-31032 | Washer | 80001- | |
| 37 | 07000-13032 | O-ring | 80001- | |
| 38 | 07371-31049 | Flange, Split | 80001- | |
| 39 | 07372-21035 | Bolt | 80001- | |
| 40 | 01643-51032 | Washer | 80001- | |
| 41 | 07000-13038 | O-ring | 80001- | |
| 42 | 01010-81035 | Bolt | 80001- | |
| 43 | 01643-31032 | Washer | 80001- | |
| 44 | (419-18-52160) | Hose | - | |
| (419-18-52160) | Hose | - |
