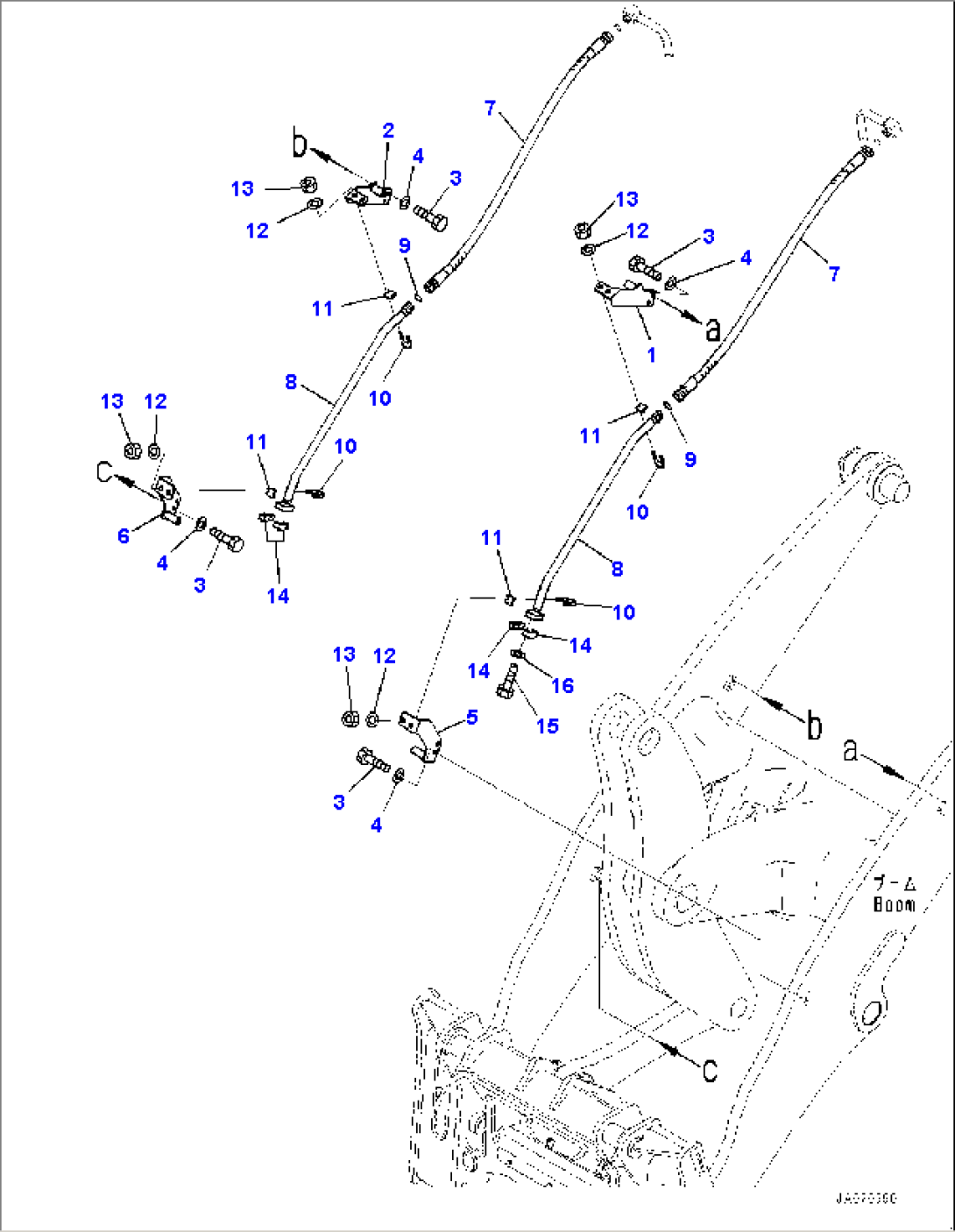

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-T90-5251 | Bracket | 80001- | |
| 2 | 419-T90-5261 | Bracket | 80001- | |
| 3 | 01010-81020 | Bolt | 80001- | |
| 4 | 01643-31032 | Washer | 80001- | |
| 5 | 419-T90-5460 | Bracket | 80001- | |
| 6 | 419-T90-5470 | Bracket | 80001- | |
| 7 | 419-T90-5231 | Hose | 80001- | |
| 8 | 419-T90-5241 | Tube | 80001- | |
| 9 | 02896-11018 | O-ring | 80001- | |
| 10 | 07283-32746 | Clip | 80001- | |
| 11 | 07283-52737 | Seat | 80001- | |
| 12 | 01643-31032 | Washer | 80001- | |
| 13 | 22P-70-12160 | Nut | 80001- | |
| 14 | 07371-30640 | Flange, Split | 80001- | |
| 15 | 07372-21035 | Bolt | 80001- | |
| 16 | 01643-51032 | Washer | 80001- |
