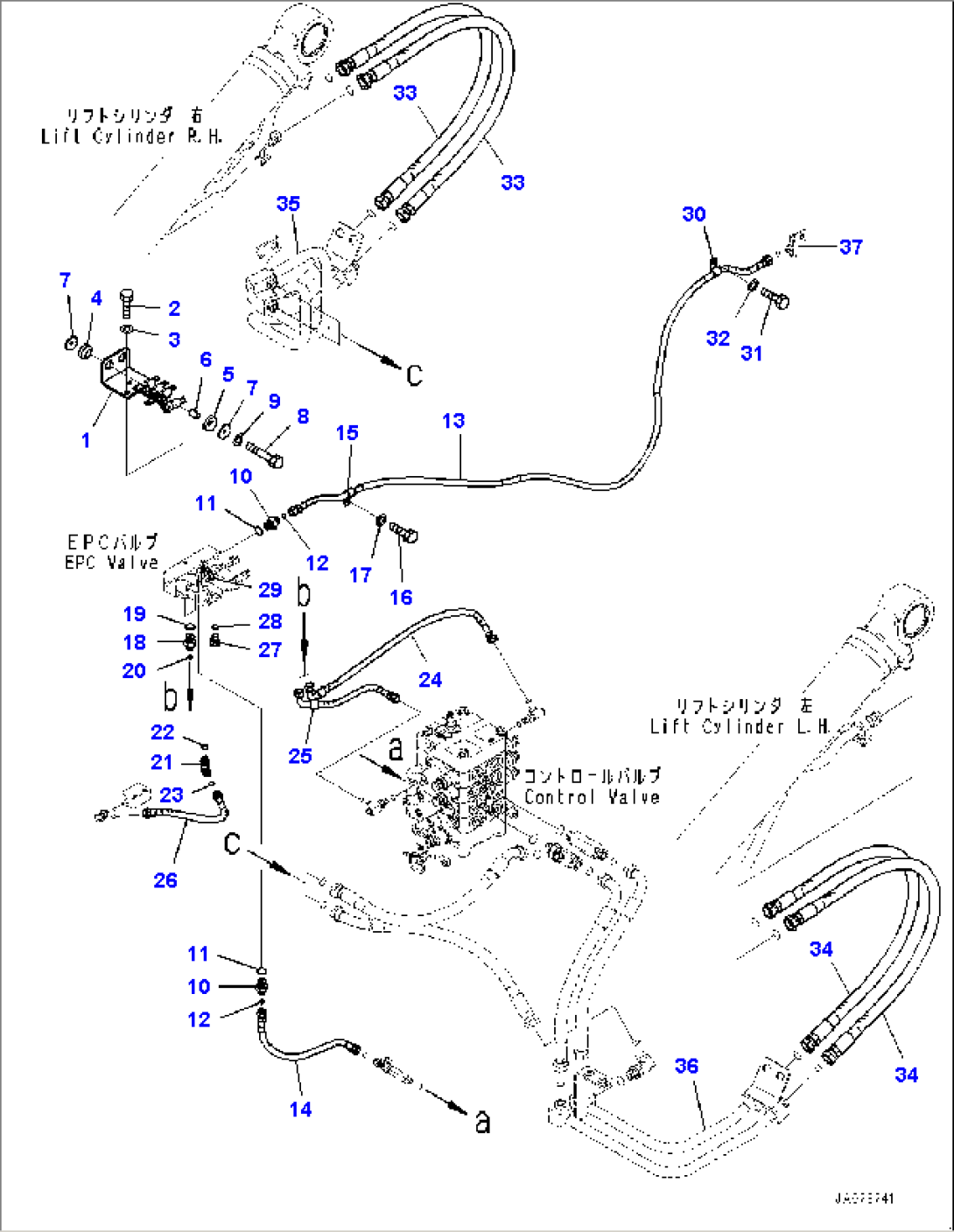

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-877-5110 | Bracket | 80001- | |
| 2 | 01010-81025 | Bolt | 80001- | |
| 3 | 01643-31032 | Washer | 80001- | |
| 4 | 419-43-17930 | Cushion | 80001- | |
| 5 | 415-64-13130 | Cushion | 80001- | |
| 6 | 417-54-13470 | Spacer | 80001- | |
| 7 | 415-64-13120 | Washer | 80001- | |
| 8 | 01010-81050 | Bolt | 80001- | |
| 9 | 01643-31032 | Washer | 80001- | |
| 10 | 02781-00315 | Union | 80001- | |
| 11 | 07002-12034 | O-ring | 80001- | |
| 12 | 02896-11009 | O-ring | 80001- | |
| 13 | 419-62-54850 | Hose | 80001- | |
| 14 | 419-62-54890 | Hose | 80001- | |
| 15 | 04434-51510 | Clip | 80001- | |
| 16 | 01010-81020 | Bolt | 80001- | |
| 17 | 01643-31032 | Washer | 80001- | |
| 18 | 02781-0031D | Union | 80001- | |
| 19 | 07002-11423 | O-ring | 80001- | |
| 20 | 02896-11009 | O-ring | 80001- | |
| 21 | 02782-10311 | Elbow | 80001- | |
| 22 | 07002-11423 | O-ring | 80001- | |
| 23 | 02896-11009 | O-ring | 80001- | |
| 24 | 419-62-54870 | Hose | 80001- | |
| 25 | 419-62-54880 | Hose | 80001- | |
| 26 | 419-62-53520 | Hose | 80001- | |
| 27 | 07040-11409 | Plug | 80001- | |
| 28 | 07002-11423 | O-ring | 80001- | |
| 29 | 08059-00310 | Clip | 80001- | |
| 30 | 04434-51510 | Clip | 80001- | |
| 31 | 01010-81025 | Bolt | 80001- | |
| 32 | 01643-31032 | Washer | 80001- | |
| 33 | 02777-00612 | Hose, Face Seal Type | 80001- | |
| 34 | 02777-00612 | Hose, Face Seal Type | 80001- | |
| 35 | (419-T90-5430) | Tube | - | |
| 36 | (419-T90-5420) | Tube | - | |
| 37 | (419-62-52860) | Tee | - |
