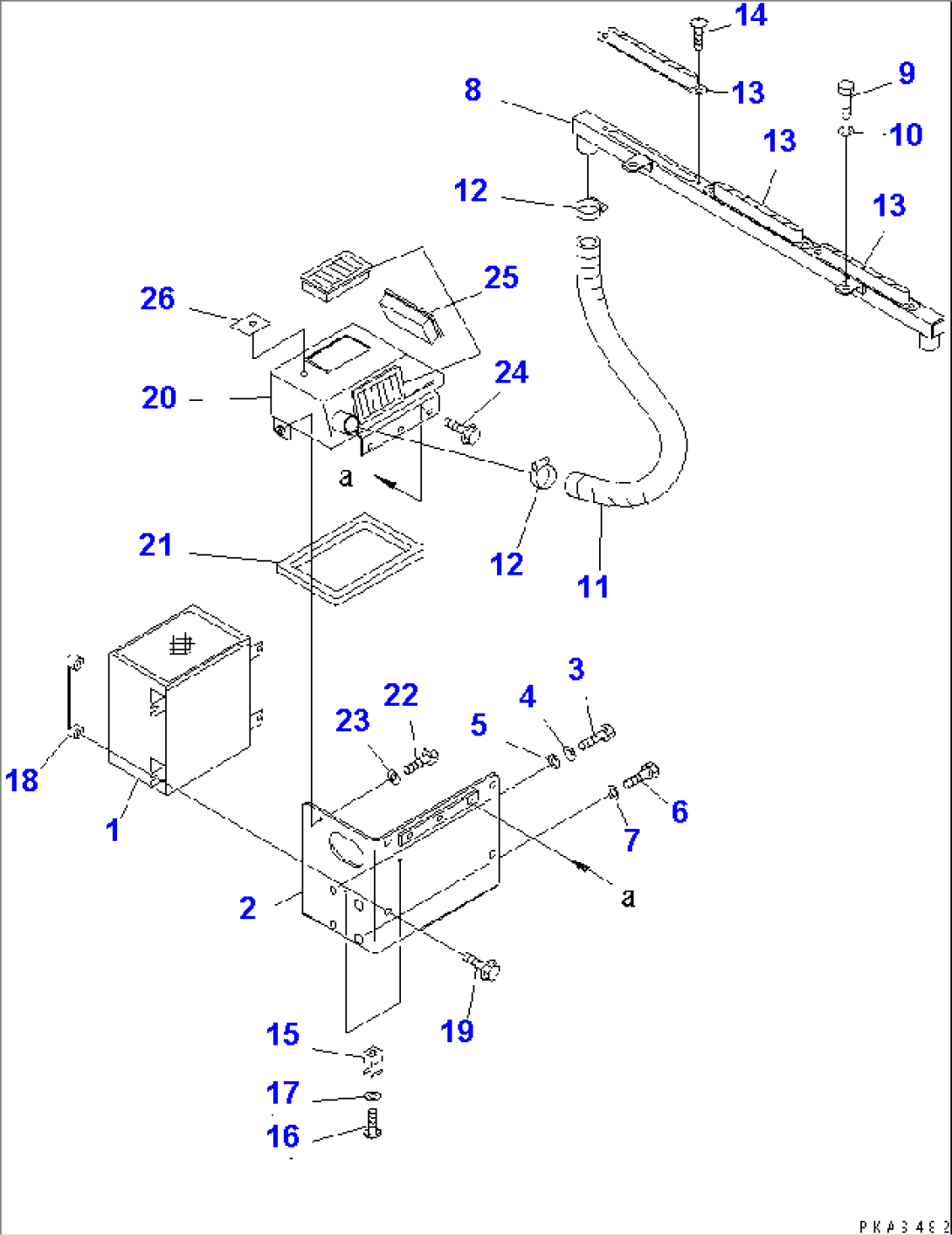

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (20Y-977-2130) | HEATER ASS'Y | 81310- | |
| 2 | 130-Z79-2310 | BRACKET | 81310- | |
| 3 | 01010-51225 | BOLT | 81310- | |
| 4 | 01602-21236 | WASHER | 81310- | |
| 5 | 01643-31232 | WASHER | 81310- | |
| 6 | 01010-51665 | BOLT | 81310- | |
| 7 | 01643-31645 | WASHER | 81310- | |
| 8 | 120-Y79-5830 | DUCT | 81310- | |
| 9 | 01010-51020 | BOLT | 81310- | |
| 10 | 01602-21030 | WASHER | 81310- | |
| 11 | 09485-03704 | HOSE | 81310- | |
| 12 | 07281-00419 | CLAMP | 81310- | |
| 13 | 09487-20220 | NOZZLE | 81310- | |
| 14 | 01220-40410 | SCREW | 81310- | |
| 15 | 08052-02411 | CLIP | 81310- | |
| 16 | 01220-40610 | SCREW | 81310- | |
| 17 | 01643-30623 | WASHER | 81310- | |
| 18 | 130-Z79-2350 | BRACKET | 81310- | |
| 19 | 01439-01030 | BOLT | 81310- | |
| 20 | 130-Z79-2330 | COVER | 81310- | |
| 21 | 130-Z79-2340 | SEAL | 81310- | |
| 22 | 01010-50825 | BOLT | 81310- | |
| 23 | 01643-30823 | WASHER | 81310- | |
| 24 | 01439-00814 | BOLT | 81310- | |
| 25 | 142-979-3221 | GRILLE ASS'Y | 81310- | |
| 26 | 113-X79-2480 | PLATE | 81310- |
