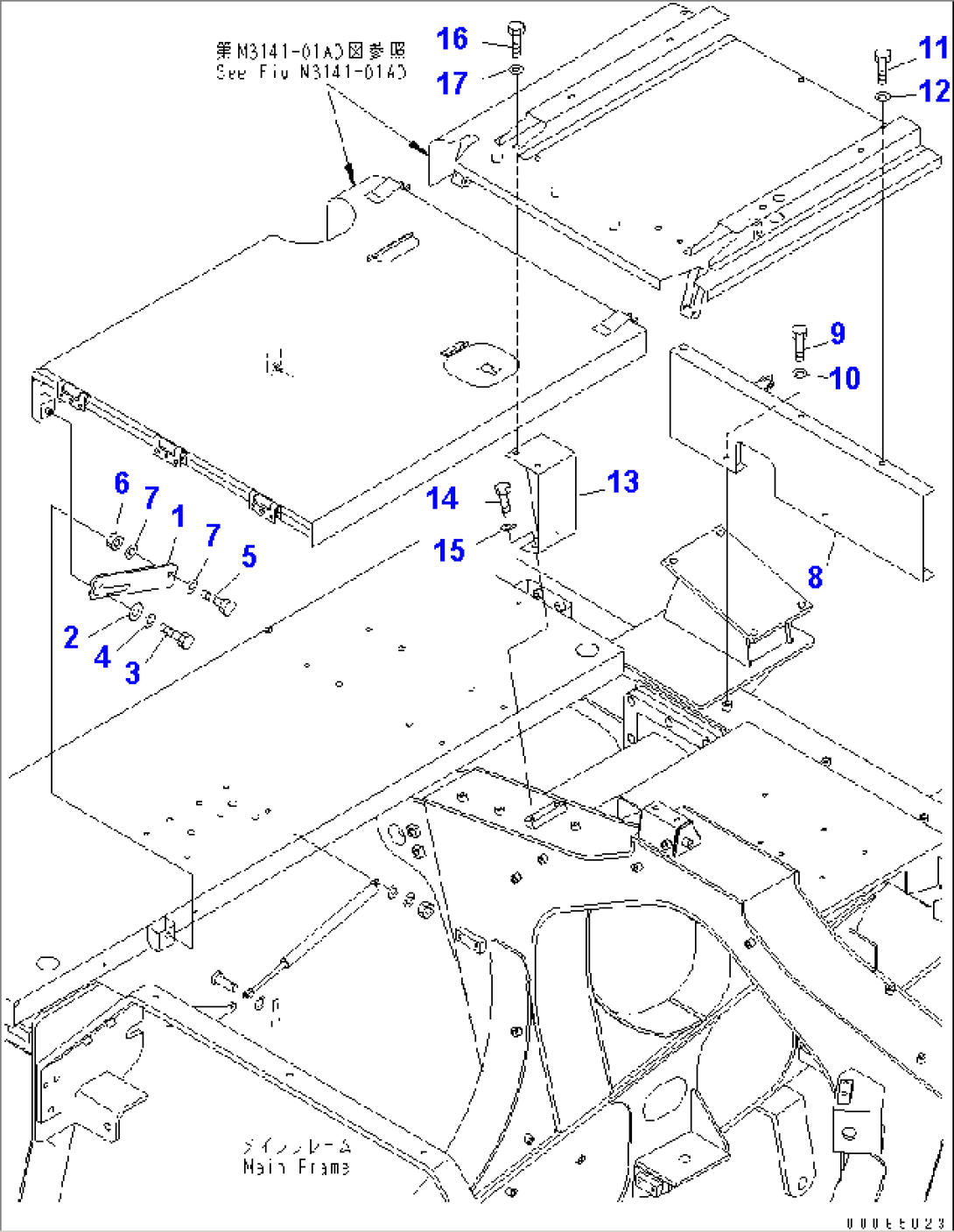

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-8A691 | STAY | 3001- | |
| 2 | 281-40-13570 | WASHER | 3001- | |
| 3 | 01010-80820 | BOLT | 3001- | |
| 4 | 01643-30823 | WASHER | 3001- | |
| 5 | 01010-81455 | BOLT | 3001- | |
| 6 | 01580-11411 | NUT | 3001- | |
| 7 | 01643-31445 | WASHER | 3001- | |
| 8 | 566-54-8A263 | BRACKET | 3001- | |
| 9 | 01010-81225 | BOLT | 3001- | |
| 10 | 01643-31232 | WASHER | 3001- | |
| 11 | 01010-81225 | BOLT | 3001- | |
| 12 | 01643-31232 | WASHER | 3001- | |
| 13 | 566-54-8A190 | BRACKET | 3001- | |
| 14 | 01010-81225 | BOLT | 3001- | |
| 15 | 01643-31232 | WASHER | 3001- | |
| 16 | 01010-81225 | BOLT | 3001- | |
| 17 | 01643-31232 | WASHER | 3001- |
