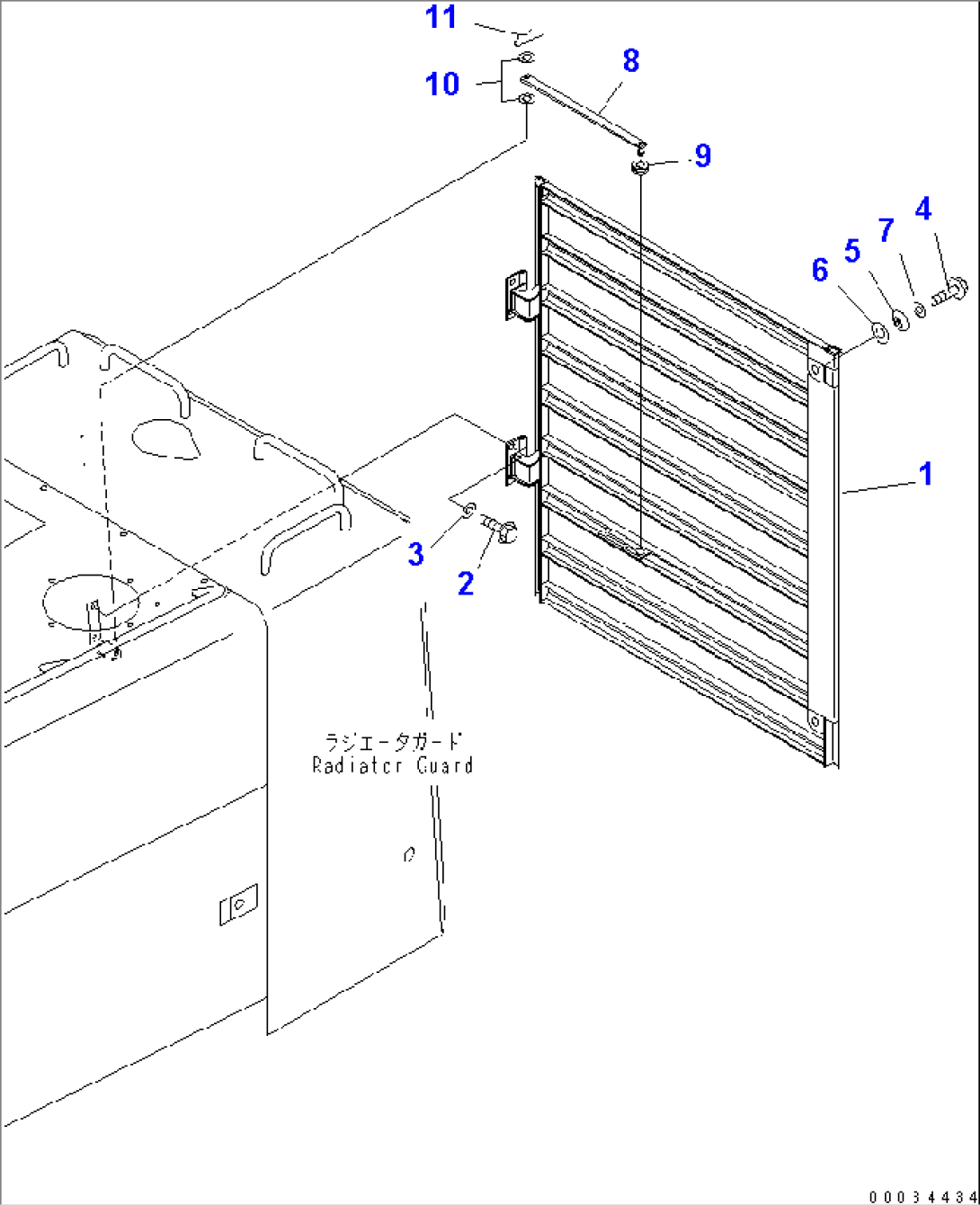

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-54-32740 | GRILLE | 52001- | |
| 1 | 416-09-12310 | HINGE (WELDED) | 52001- | |
| 2 | 01435-01230 | BOLT | 52001- | |
| 3 | 01643-31232 | WASHER | 52001- | |
| 4 | 01435-01230 | BOLT | 52001- | |
| 5 | 415-46-11370 | SPACER | 52001- | |
| 6 | 415-46-11380 | CUSHION | 52001- | |
| 7 | 01640-22232 | WASHER | 52001- | |
| 8 | 426-54-21870 | BAR | 52001- | |
| 9 | 08037-01008 | GROMMET | 52001- | |
| 10 | 01643-30823 | WASHER | 52001- | |
| 11 | 04052-10833 | PIN,SNAP | 52001- |
