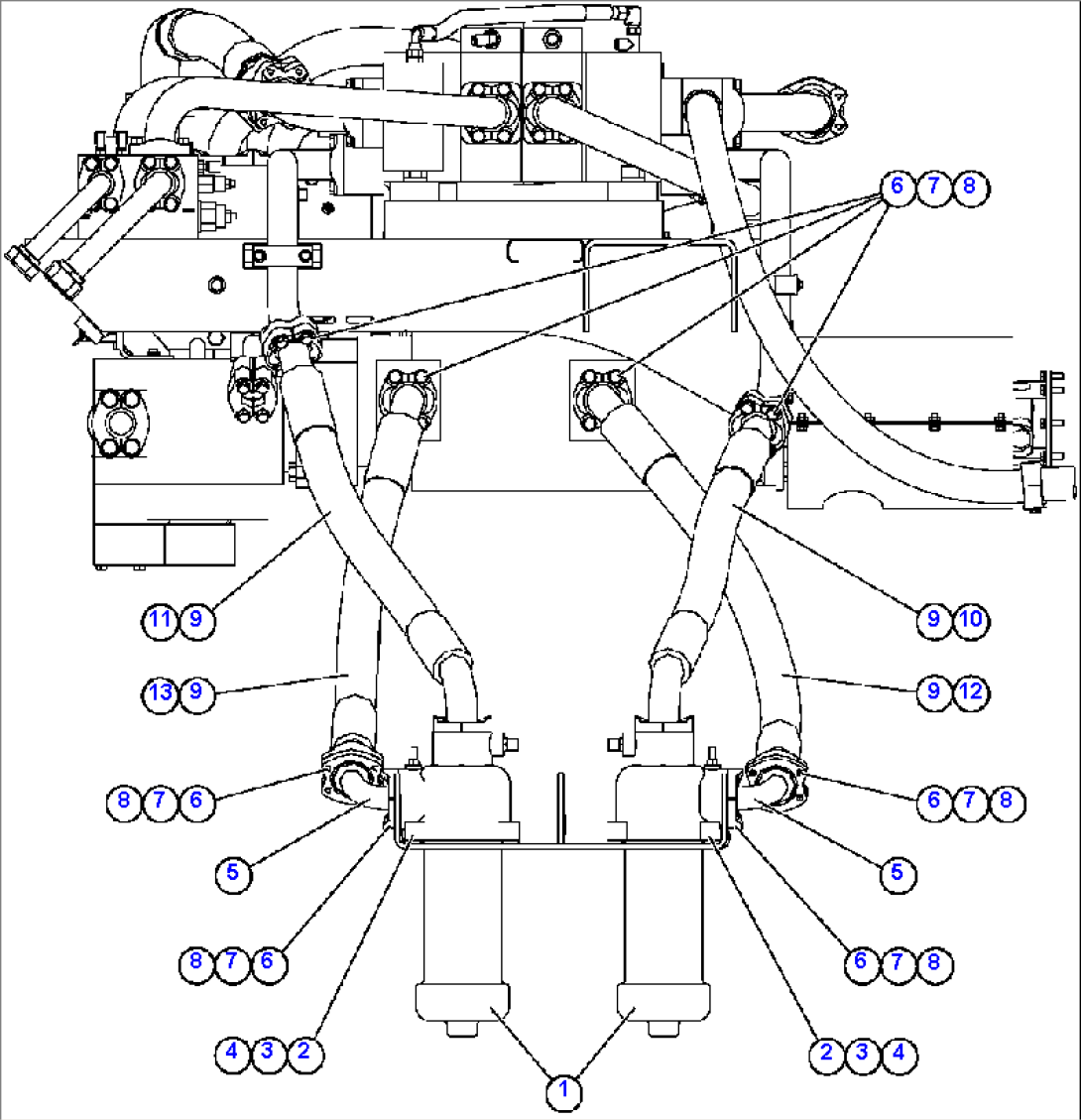

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | EH1241 | HYDRAULIC FILTER, HOIST / BRAKE COOLING (SEE INDEX) | ||
| 2 | EH1551 | PAD, RUBBER | ||
| 3 | TL5327 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 4 | WA0360 | FLAT WASHER - 1/2" (HARDENED) | ||
| 5 | PB8318 | ELBOW | ||
| 6 | TF3231 | CLAMP, SPLIT FLANGE | ||
| 7 | C1614 | CAPSCREW - 1/2" - 13NC X 1 1/2" | ||
| 8 | C1540 | LOCKWASHER - 1/2" | ||
| 9 | WA0187 | O-RING | ||
| 10 | HA7586 | HOSE | ||
| 11 | HA8187 | HOSE | ||
| 12 | HA6250 | HOSE | ||
| 13 | HA7602 | HOSE |
