| Item | Part No. | Part Name | Qty | Serial No. |

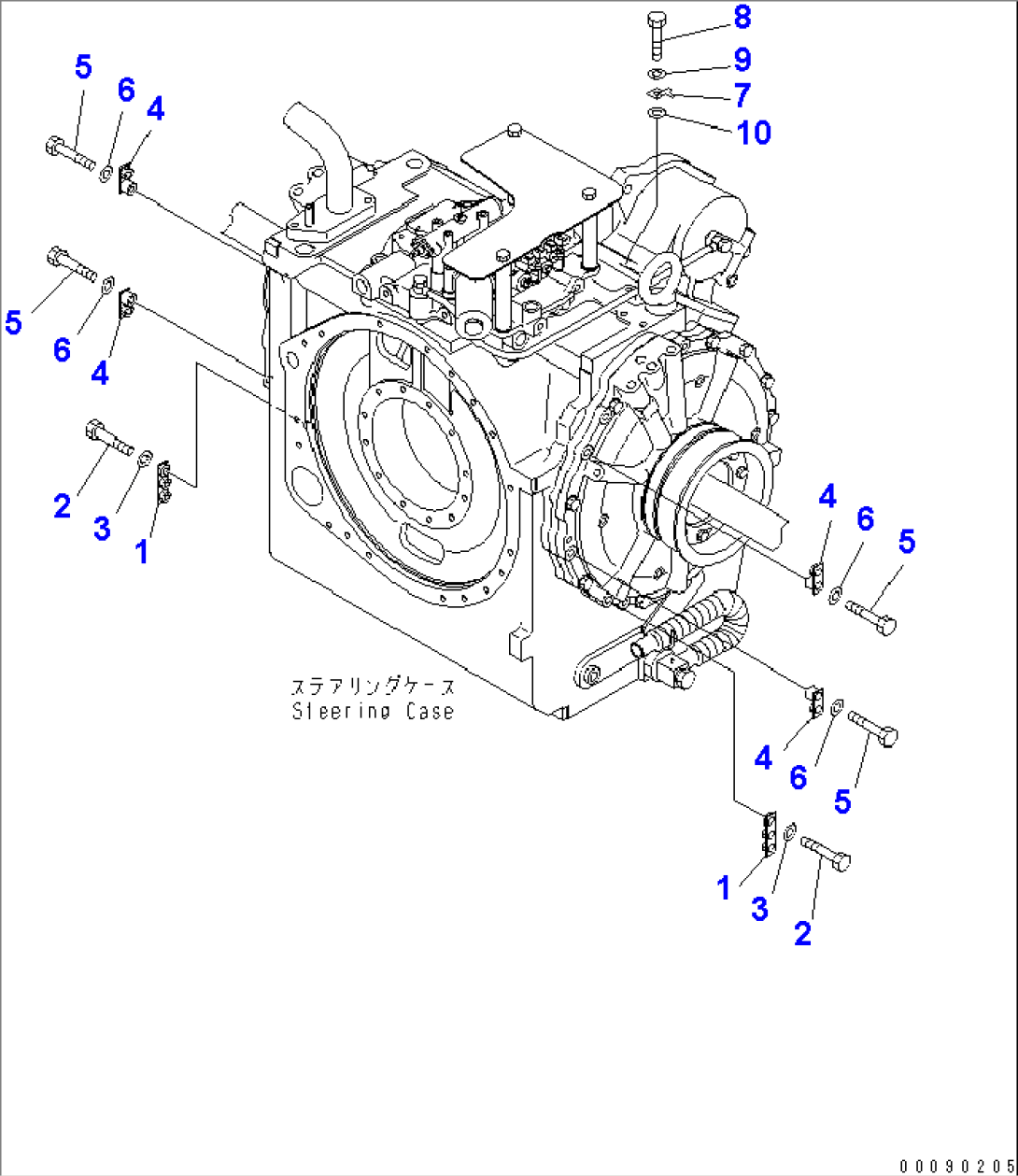

| (17M-22-40100) | POWER TRAIN ASS'Y | 30001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F2300-51C0 TO F2300-63C0 | ||||
| SERIAL NO. IN ( ) INDICATES POWER LINE SERIAL NO. | ||||
| 1 | 17M-06-49140 | BRACKET | 30001- | |
| 2 | 01010-81270 | BOLT | 30001- | |
| 3 | 01643-31232 | WASHER | 30001- | |
| 4 | 17M-06-49150 | BRACKET | 30001- | |
| 5 | 01010-81280 | BOLT | 30001- | |
| 6 | 01643-31232 | WASHER | 30001- | |
| 7 | 08193-21012 | CLIP | 30001- | |
| 8 | 01010-81255 | BOLT | 30001- | |
| 9 | 01643-31232 | WASHER | 30001- | |
| 10 | 01643-31232 | WASHER | (102516)- |
