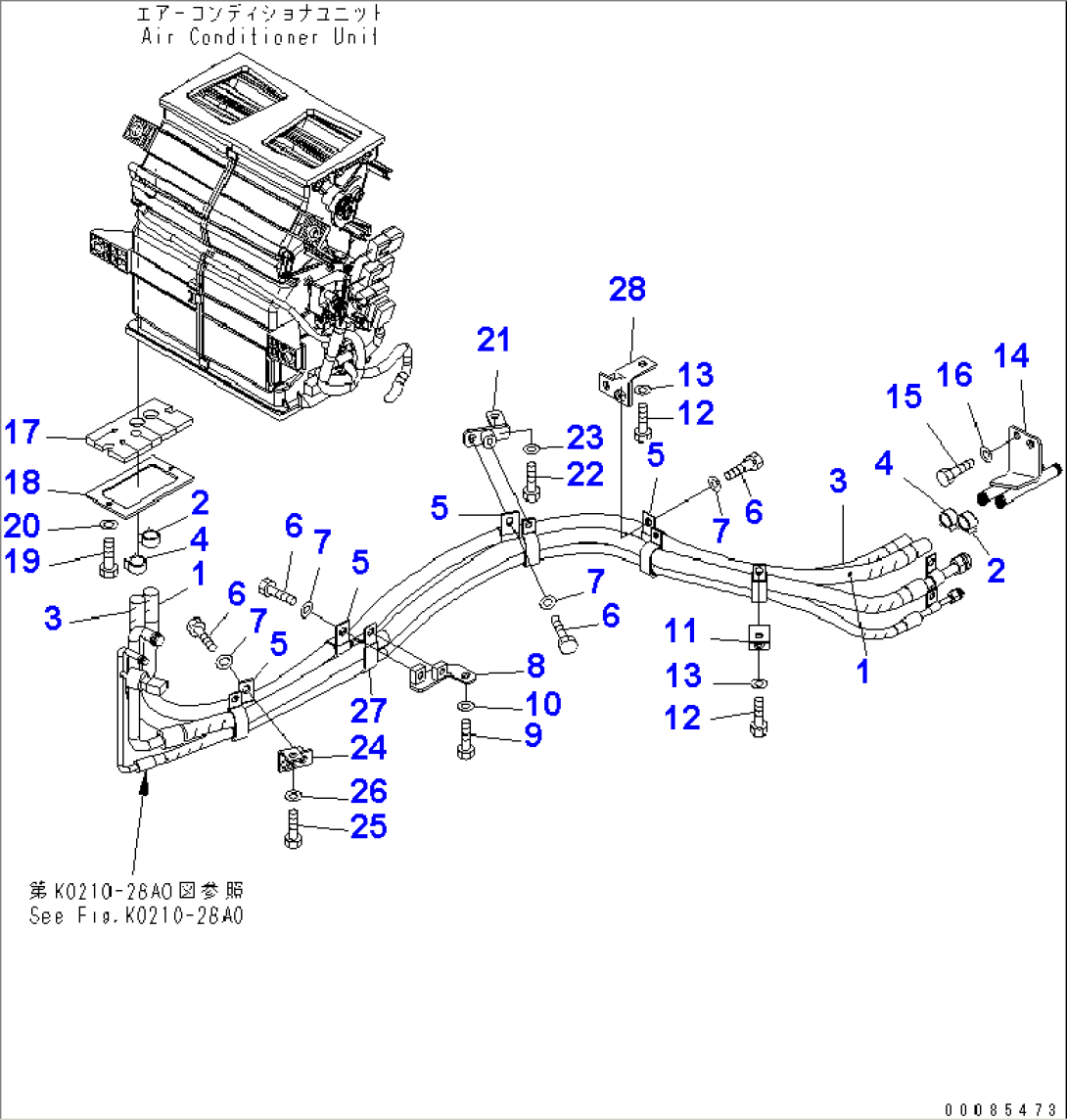

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-07-45110 | HOSE, 1690MM | 70001- | |
| 2 | 09479-02400 | CLAMP | 70001- | |
| 3 | 418-07-45120 | HOSE, 1710MM | 70001- | |
| 4 | 09479-02400 | CLAMP | 70001- | |
| 5 | 421-07-11550 | CLIP | 70001- | |
| 6 | 01010-81020 | BOLT | 70001- | |
| 7 | 01643-31032 | WASHER | 70001- | |
| 8 | 418-07-41770 | BRACKET | 70001- | |
| 9 | 01010-81025 | BOLT | 70001- | |
| 10 | 01643-31032 | WASHER | 70001- | |
| 11 | 426-Z91-2170 | PLATE | 70001-70714 | |
| 12 | 01010-81020 | BOLT | 70175- | |
| 12 | 01010-81020 | BOLT | 70001-70174 | |
| 13 | 01643-31032 | WASHER | 70175- | |
| 13 | 01643-31032 | WASHER | 70001-70174 | |
| 14 | 418-07-45161 | BRACKET | 70001- | |
| 15 | 01010-81020 | BOLT | 70001- | |
| 16 | 01643-31032 | WASHER | 70001- | |
| 17 | 418-07-41720 | SHEET | 70001- | |
| 18 | 418-07-41710 | PLATE | 70001- | |
| 19 | 01010-80616 | BOLT | 70001- | |
| 20 | 01643-30623 | WASHER | 70001- | |
| 21 | 418-07-41760 | BRACKET | 70001- | |
| 22 | 01010-81020 | BOLT | 70001- | |
| 23 | 01643-31032 | WASHER | 70001- | |
| 24 | 418-07-41740 | BRACKET | 70001- | |
| 25 | 01010-81020 | BOLT | 70001- | |
| 26 | 01643-31032 | WASHER | 70001- | |
| 27 | 198-61-14180 | CLIP | 70001-70174 | |
| 28 | 418-07-41750 | BRACKET | 70001-70174 |
