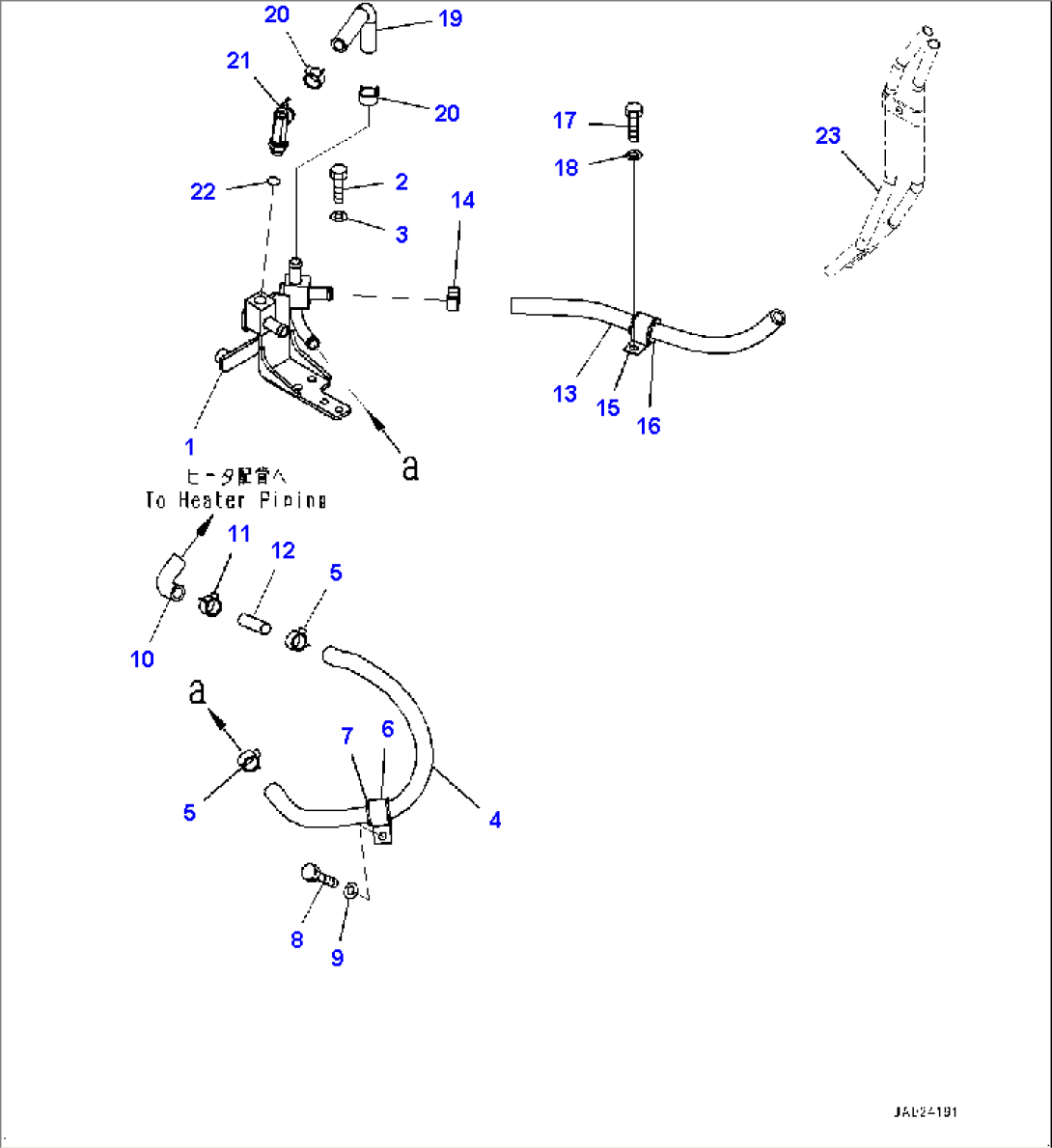

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 11Y-979-9441 | Joint | 85001- | |
| 2 | 01010-81025 | Bolt | 85001- | |
| 3 | 01643-31032 | Washer | 85001- | |
| 4 | 11Y-979-9350 | Hose | 85001- | |
| 5 | 09479-12400 | Clip | 85001- | |
| 6 | 04434-53211 | Clip | 85001- | |
| 7 | 07095-20523 | Cushion | 85001- | |
| 8 | 01010-81020 | Bolt | 85001- | |
| 9 | 01643-31032 | Washer | 85001- | |
| 10 | 09483-30550 | Hose | 85001- | |
| 11 | 09479-12400 | Clip | 85001- | |
| 12 | 09484-00560 | Connector | 85001- | |
| 13 | 11Y-979-9341 | Hose | 85001- | |
| 14 | 09479-12400 | Clip | 85001- | |
| 15 | 04434-53211 | Clip | 85001- | |
| 16 | 07095-20523 | Cushion | 85001- | |
| 17 | 01010-81020 | Bolt | 85001- | |
| 18 | 01643-31032 | Washer | 85001- | |
| 19 | 11Y-979-9480 | Hose | 85001- | |
| 20 | 09479-12400 | Clip | 85001- | |
| 21 | 17A-911-4510 | Valve | 85001- | |
| 22 | 07002-11623 | O-ring | 85001- | |
| 23 | (11Y-979-9611) | Tube Assembly | - |
