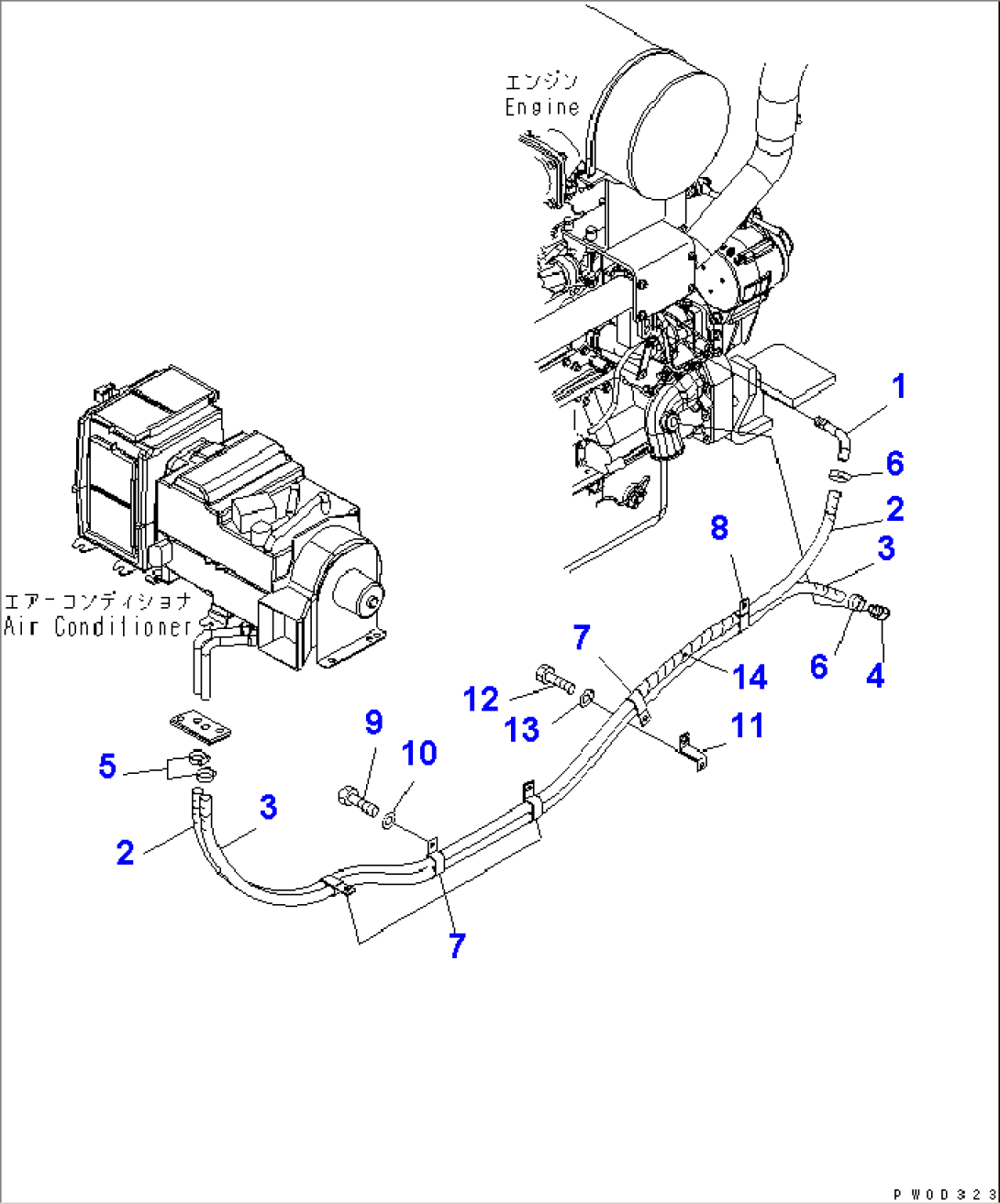

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-07-11360 | ELBOW | 70001- | |
| 2 | 09483-10522 | HOSE | 70001- | |
| 3 | 09483-10523 | HOSE | 70001- | |
| 4 | 567-07-15222 | ELBOW | 81247- | |
| 4 | 567-07-15221 | JOINT | 70001-81246 | |
| 5 | 09479-02400 | CLAMP | 70001- | |
| 6 | 09479-02400 | CLAMP | 70001- | |
| 7 | 421-07-11550 | CLIP | 70001- | |
| 8 | 21J-62-18380 | CLIP | 70001- | |
| 9 | 01010-81016 | BOLT | 70001- | |
| 10 | 01643-31032 | WASHER | 70001- | |
| 11 | 421-06-31351 | PLATE | 70001- | |
| 12 | 01010-81020 | BOLT | 70001- | |
| 13 | 01643-31032 | WASHER | 70001- | |
| 14 | 08210-01803 | SPIRAL TUBE | 70001- |
