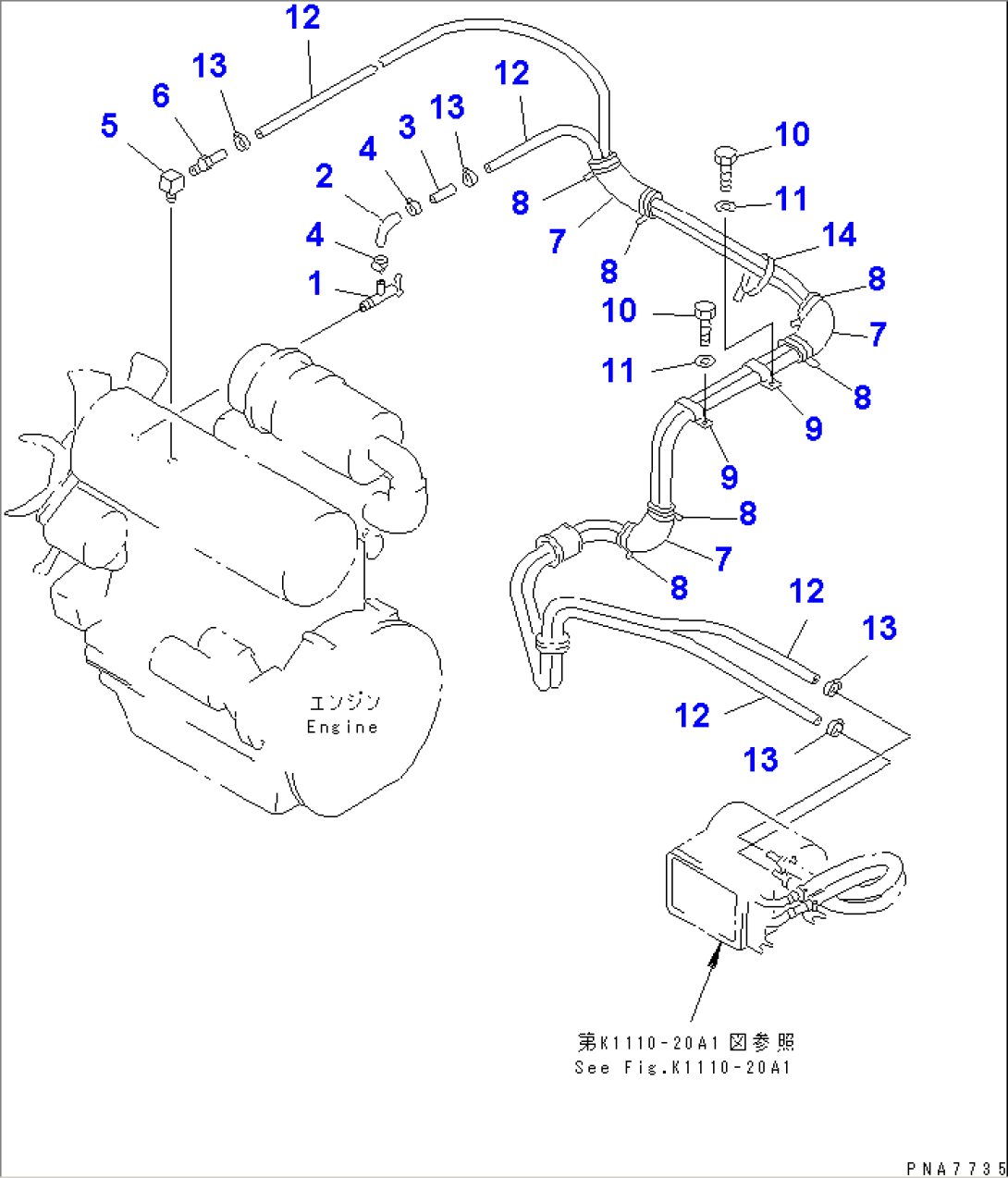

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09482-50000 | VALVE | 12783-@ | |
| 203-977-4130 | VALVE | 8001-12782 | ||
| 2 | 09483-30450 | HOSE | 8001-@ | |
| 3 | 09484-00450 | CONNECTOR | 8001-@ | |
| 4 | 09480-10100 | CLAMP | 8001-@ | |
| 5 | 154-865-1160 | ELBOW | 8001-@ | |
| 6 | 20T-54-42510 | NIPPLE | 8001-@ | |
| 7 | 203-62-41150 | COVER | 8001-12799 | |
| 8 | 08034-00823 | BAND | 8001-12799 | |
| 9 | 176-911-4170 | CLIP | 8001-12799 | |
| 10 | 01010-51020 | BOLT | 8001-12799 | |
| 11 | 01643-31032 | WASHER | 8001-@ | |
| 12 | 09483-00421 | HOSE | 9667-12799 | |
| 09483-00425 | HOSE | 8001-9666 | ||
| 13 | 09480-10100 | CLAMP | 8001-@ | |
| 14 | 08034-00823 | BAND | 8001-@ |
