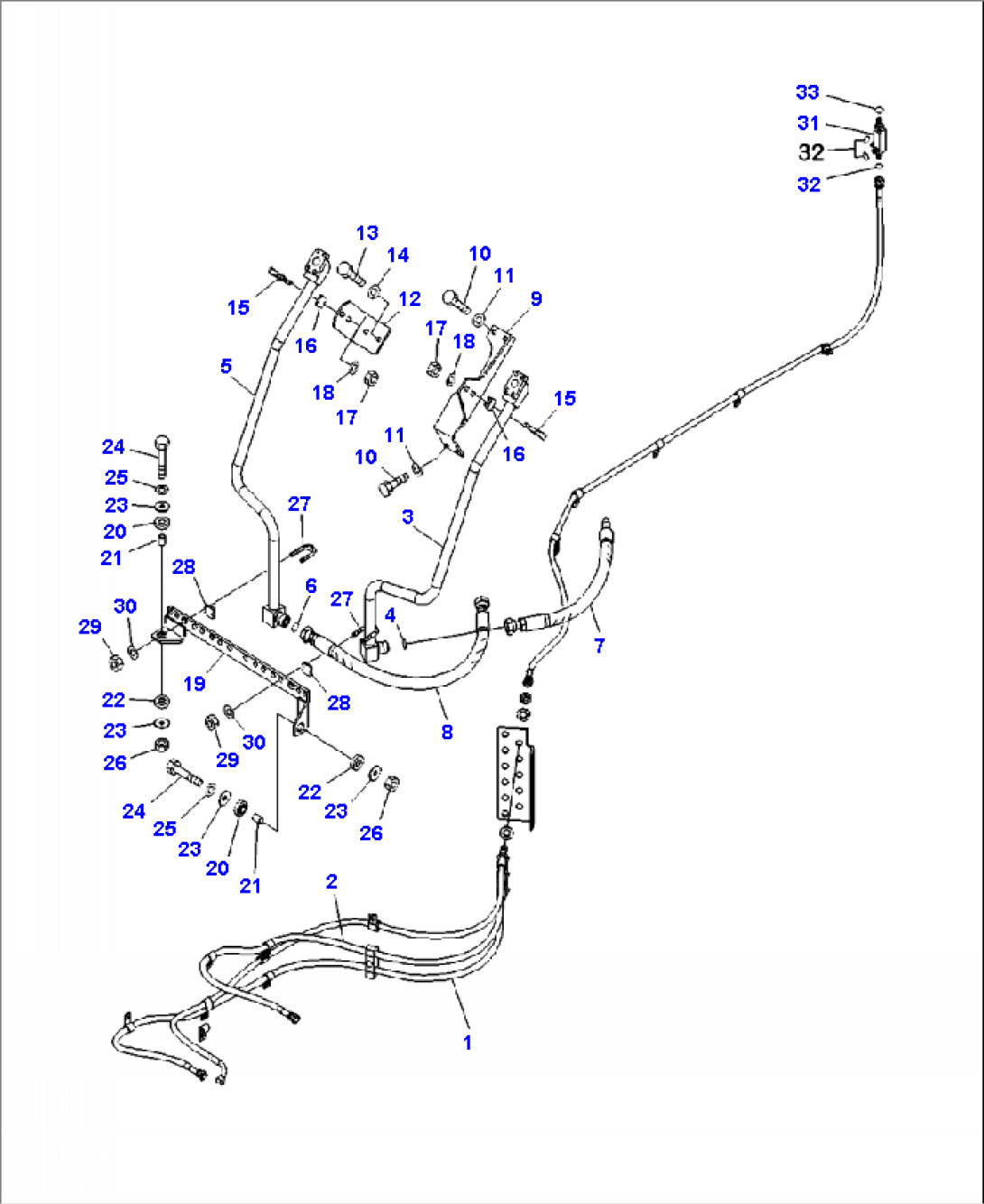

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-877-4340 | HOSE | ||
| 2 | 423-877-4350 | HOSE | ||
| 3 | 423-877-4121 | TUBE, L.H. | ||
| 4 | 02896-61018 | O-RING | ||
| 5 | 423-877-4132 | TUBE, R.H. | ||
| 6 | 02896-61018 | O-RING | ||
| 7 | 423-877-4240 | HOSE | ||
| 8 | 02765-006A7 | HOSE | ||
| 9 | 423-877-4141 | PLATE, L.H. | ||
| 10 | 01010-81025 | BOLT | ||
| 11 | 01643-31032 | WASHER | ||
| 12 | 423-877-4150 | PLATE, R.H. | ||
| 13 | 01010-81025 | BOLT | ||
| 14 | 01643-31032 | WASHER | ||
| 15 | 07283-32746 | CLIP | ||
| 16 | 07283-52737 | SEAT | ||
| 17 | 01597-01009 | NUT | ||
| 18 | 01643-31032 | WASHER | ||
| 19 | 423-877-2210 | BRACKET | ||
| 20 | 419-43-17930 | CUSHION | ||
| 21 | 417-62-14130 | SPACER | ||
| 22 | 415-64-13130 | CUSHION | ||
| 23 | 419-43-17920 | WASHER | ||
| 24 | 01010-81055 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 01584-01008 | NUT | ||
| 27 | 07283-32746 | CLIP | ||
| 28 | 07283-52737 | SEAT | ||
| 29 | 01597-01009 | NUT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 423-877-4781 | TEE | ||
| 32 | 02896-11008 | O-RING | ||
| 33 | 07002-11423 | O-RING |
