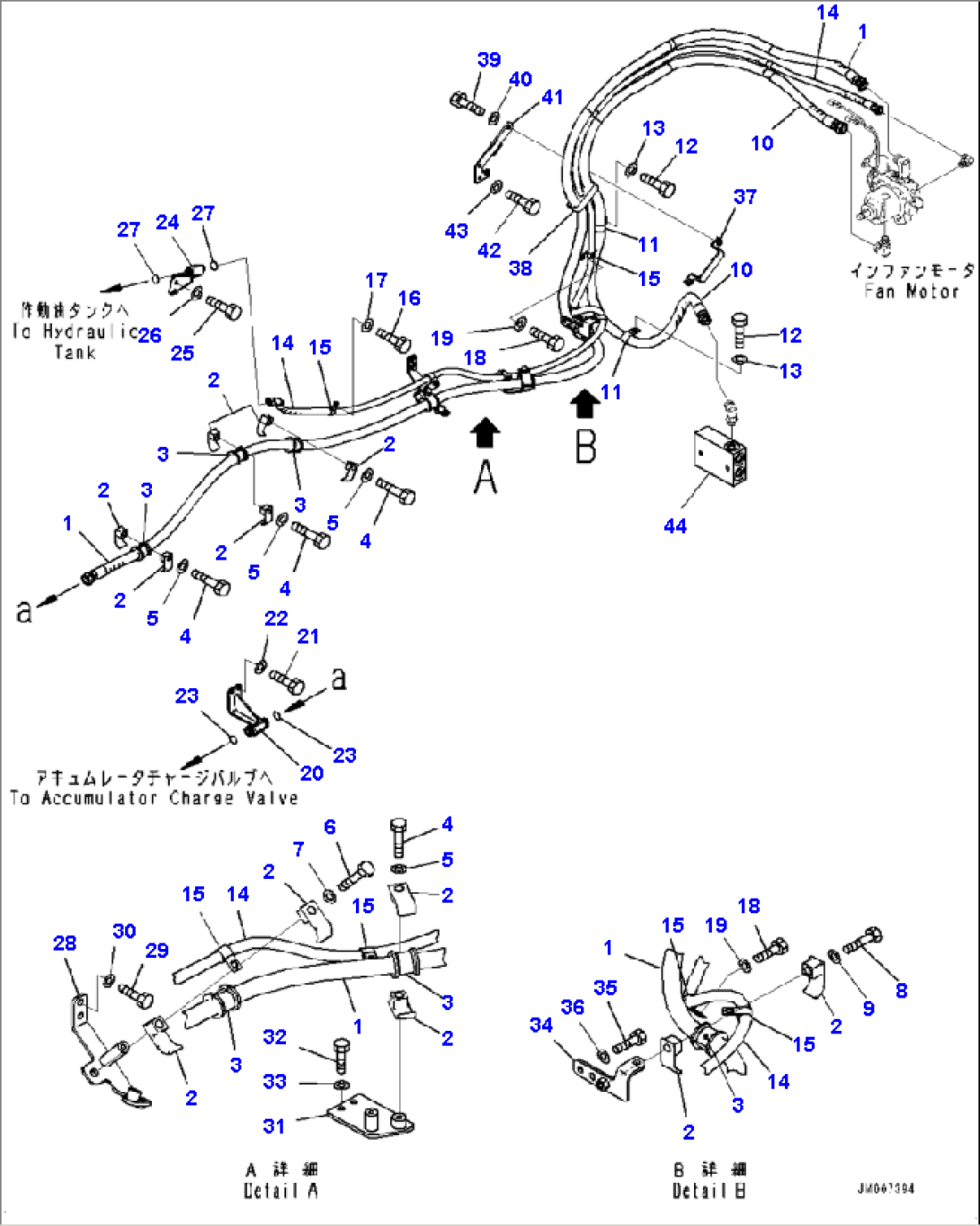

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-53181 | HOSE | ||
| 2 | 425-62-42640 | CLAMP | ||
| 3 | 07095-00628 | CUSHION | ||
| 4 | 01010-81265 | BOLT | ||
| 5 | 01643-31232 | WASHER | ||
| 6 | 01010-81270 | BOLT | ||
| 7 | 01643-31232 | WASHER | ||
| 8 | 01010-81275 | BOLT | ||
| 9 | 01643-31232 | WASHER | ||
| 10 | 425-03-53191 | HOSE | ||
| 11 | 04434-52711 | CLIP | ||
| 12 | 01010-81020 | BOLT | ||
| 13 | 01643-31032 | WASHER | ||
| 14 | 425-03-53211 | HOSE | ||
| 15 | 04434-51910 | CLIP | ||
| 16 | 01010-81025 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 01010-81020 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 425-03-43850 | BRACKET | ||
| 21 | 01010-81020 | BOLT | ||
| 22 | 01643-31032 | WASHER | ||
| 23 | 02896-61018 | O-RING | ||
| 24 | 425-03-43860 | JOINT | ||
| 25 | 01010-81020 | BOLT | ||
| 26 | 01643-31032 | WASHER | ||
| 27 | 02896-61012 | O-RING | ||
| 28 | 425-03-43780 | BRACKET | ||
| 29 | 01010-81020 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 425-03-53671 | BRACKET | ||
| 32 | 01010-81020 | BOLT | ||
| 33 | 01643-31032 | WASHER | ||
| 34 | 425-03-53451 | BRACKET | ||
| 35 | 01010-81020 | BOLT | ||
| 36 | 01643-31032 | WASHER | ||
| 37 | 425-03-53461 | BRACKET | ||
| 38 | 425-03-53471 | CUSHION | ||
| 39 | 01010-81025 | BOLT | ||
| 40 | 01643-31032 | WASHER | ||
| 41 | 425-03-51421 | BRACKET | ||
| 42 | 01010-81020 | BOLT | ||
| 43 | 01643-31032 | WASHER | ||
| 44 | 425-62-51211 | BLOCK |
