| Item | Part No. | Part Name | Qty | Serial No. |

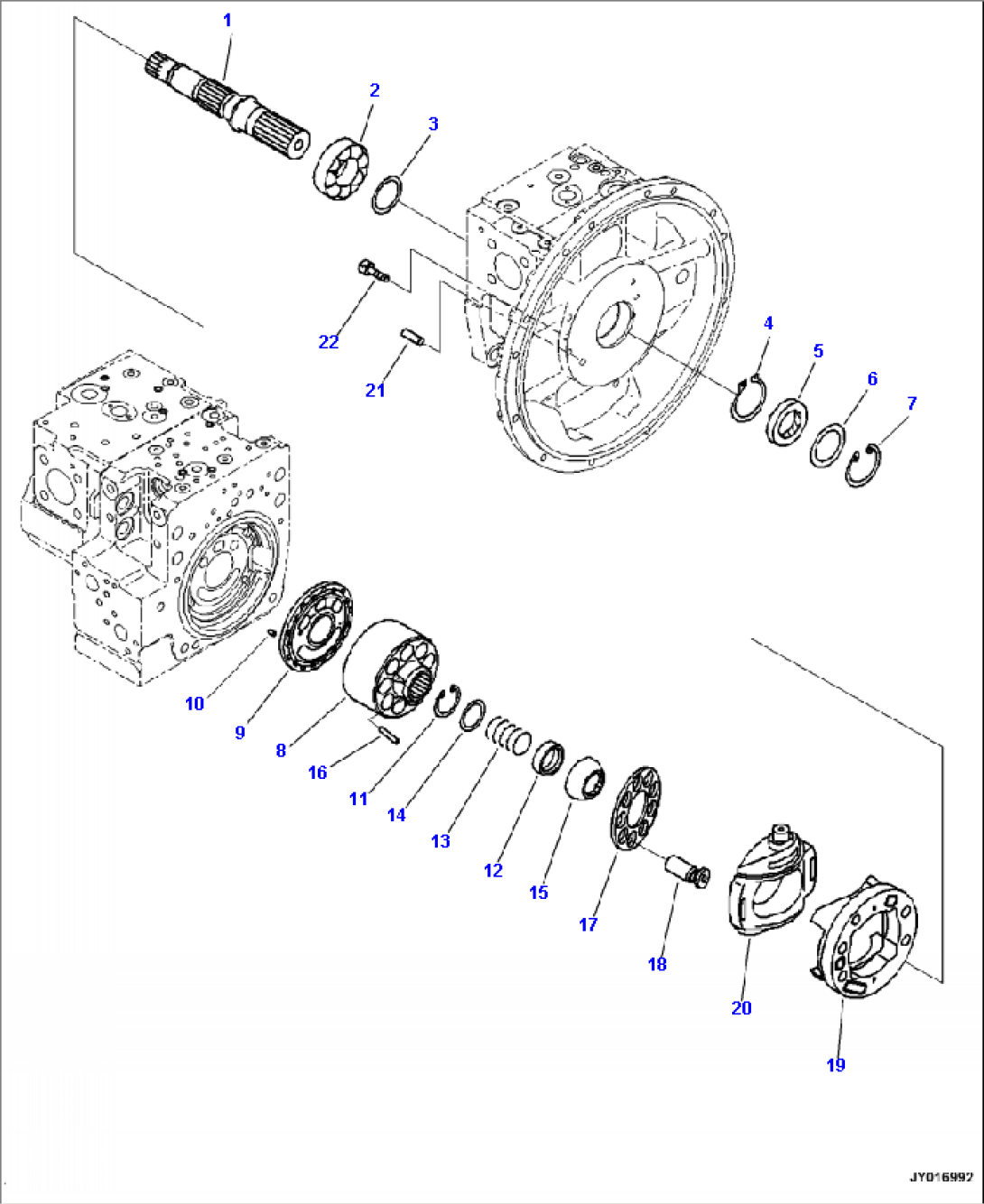

| PUMP ASSEMBLY (SEE FIG. H0210-001001 ) | ||||
| (NSS) | PUMP SUBASSEMBLY | |||
| 1 | 708-2G-12610 | SHAFT | ||
| 2 | 708-2L-42250 | BEARING | ||
| 3 | 708-2E-05040 | WASHER KIT | ||
| (NSS) | WASHER, T=3.1 MM | |||
| (NSS) | WASHER, T=3.0 MM | |||
| (NSS) | WASHER, T=2.9 MM | |||
| (NSS) | WASHER, T=2.8 MM | |||
| 4 | 708-25-12790 | RING, SNAP | ||
| 5 | 708-2L-32460 | SEAL, OIL | ||
| 6 | 708-2L-22160 | SPACER | ||
| 7 | 04065-06825 | RING, SNAP | ||
| 708-2G-04640 | BLOCK ASSEMBLY | |||
| 8 | (NSS) | CYLINDER BLOCK | ||
| 9 | (NSS) | PLATE, VALVE | ||
| 10 | 708-18-13230 | PIN | ||
| 11 | 04065-05820 | RING, SNAP | ||
| 12 | 708-2L-43130 | SEAT | ||
| 13 | 708-2G-13760 | SPRING | ||
| 14 | 708-2H-23141 | SEAT | ||
| 15 | 708-2G-13740 | GUIDE | ||
| 16 | 708-2L-43360 | PIN | ||
| 17 | 708-2G-13750 | RETAINER | ||
| 18 | 708-2L-43311 | PISTON SUBASSEMBLY | ||
| 708-2G-04660 | CRADLE ASSEMBLY | |||
| 19 | (NSS) | CRADLE | ||
| 20 | (NSS) | CAM | ||
| 21 | 04020-01228 | PIN, DOWEL | ||
| 22 | 01252-61025 | BOLT, HEXAGON SOCKET HEAD |
