| Item | Part No. | Part Name | Qty | Serial No. |
| VALVE ( SEE FIG. H0120-51A0 ) | ||||
| 1 | 723-40-91200 | VALVE, SUCTION | ||
| 2 | 709-25-11390 | O-RING | ||
| 3 | 723-90-61600 | VALVE | ||
| 4 | 07000-13024 | O-RING | ||
| 5 | 723-40-85100 | VALVE, SUCTION | ||
| 6 | 709-25-11390 | O-RING |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc200ll 8 s/n a87001 up
- Hydraulic system
- H0120 62a0 main valve suction and relief valve
Поиск по каталогу

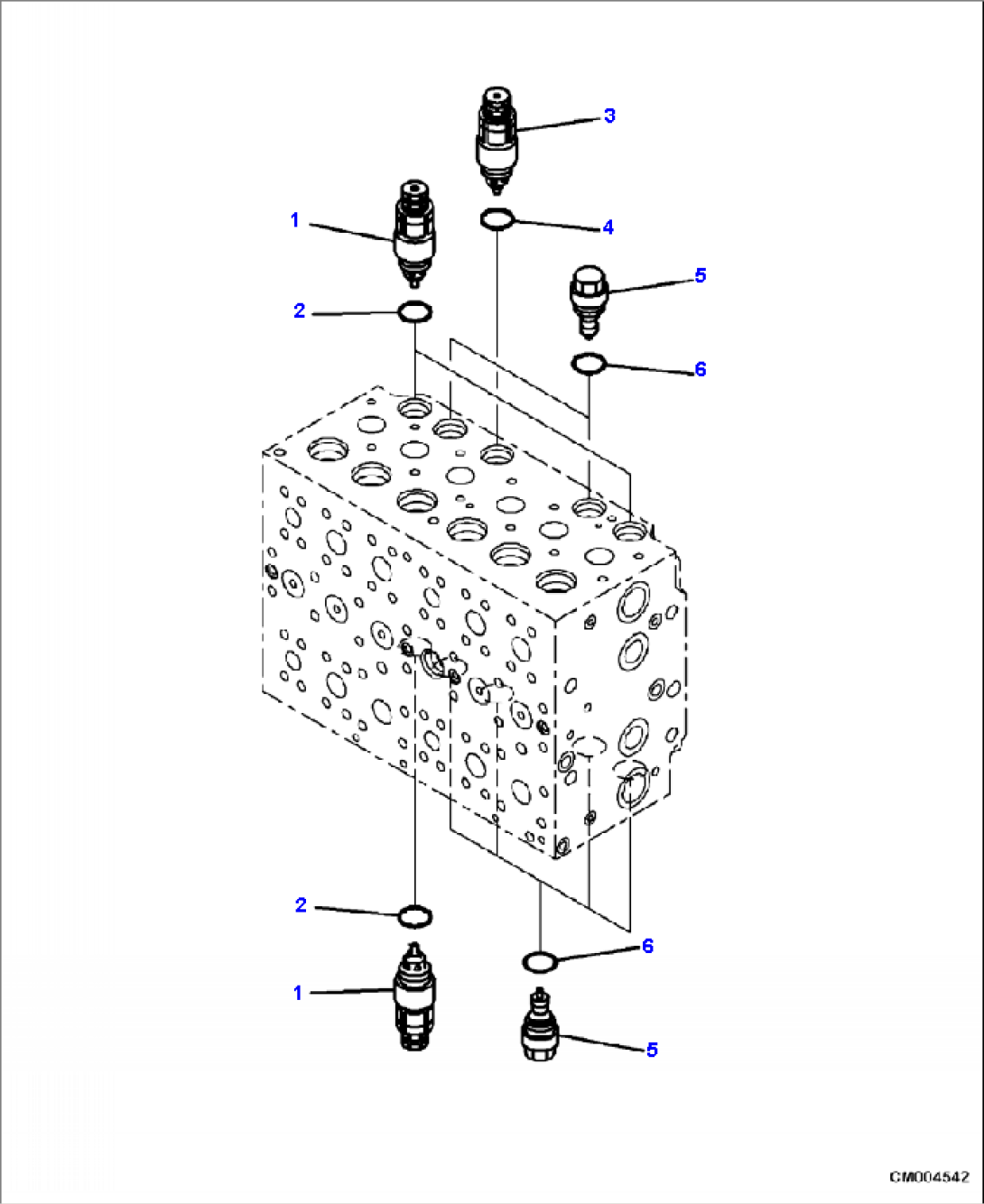

H0120-62A0 MAIN VALVE SUCTION AND RELIEF VALVE
