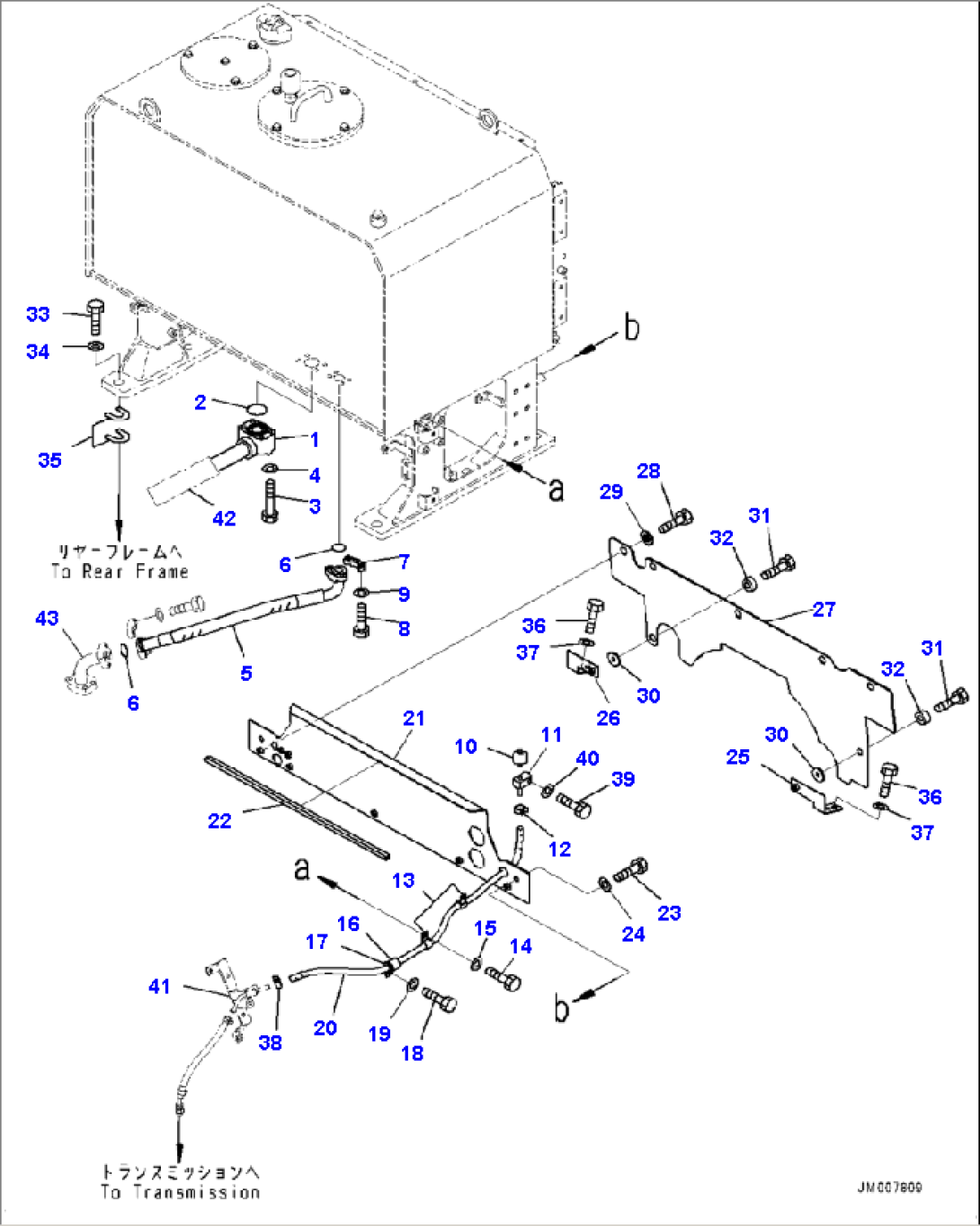

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-62-31522 | TUBE | ||
| 2 | 07000-B3048 | O-RING | ||
| 3 | 01010-81275 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 425-62-42330 | HOSE | ||
| 6 | 07000-B3032 | O-RING | ||
| 7 | 07371-31049 | FLANGE, SPLIT | ||
| 8 | 07372-21035 | BOLT | ||
| 9 | 01643-51032 | WASHER | ||
| 10 | 07030-00252 | BREATHER | ||
| 11 | 425-60-45610 | BLOCK | ||
| 12 | 11Y-09-11140 | CLIP | ||
| 13 | 04434-51610 | CLIP | ||
| 14 | 01010-81020 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 04434-52511 | CLIP | ||
| 17 | 07095-20318 | CUSHION | ||
| 18 | 01010-81020 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | 425-15-51611 | HOSE | ||
| 21 | 425-54-51451 | BRACKET | ||
| 22 | 423-54-42770 | SHEET | ||
| 23 | 01010-D1225 | BOLT | ||
| 24 | 01643-71232 | WASHER | ||
| 25 | 425-54-51471 | BRACKET | ||
| 26 | 425-54-52461 | BRACKET | ||
| 27 | 425-54-51461 | RUBBER | ||
| 28 | 01010-81020 | BOLT | ||
| 29 | 203-54-56960 | COLLAR | ||
| 30 | 421-54-34550 | WASHER | ||
| 31 | 01010-D1030 | BOLT | ||
| 32 | 103-21-21260 | BOSS | ||
| 33 | 01010-62460 | BOLT | ||
| 34 | 01643-32460 | WASHER | ||
| 35 | 421-926-2930 | SHIM, T=0.5 MM | ||
| 36 | 01010-D1220 | BOLT | ||
| 37 | 01643-71232 | WASHER | ||
| 38 | 11Y-09-11140 | CLIP | ||
| 39 | 01010-81045 | BOLT | ||
| 40 | 01643-31032 | WASHER | ||
| 41 | BRACKET ( SEE FIG. H4200-001004B ) | |||
| 42 | HOSE ( SEE FIG. F4300-002030 ) | |||
| 43 | TUBE ( SEE FIG. F4300-002033 ) |
