| Item | Part No. | Part Name | Qty | Serial No. |
| (705-52-31070) | PUMP ASS'Y | 10239- | ||

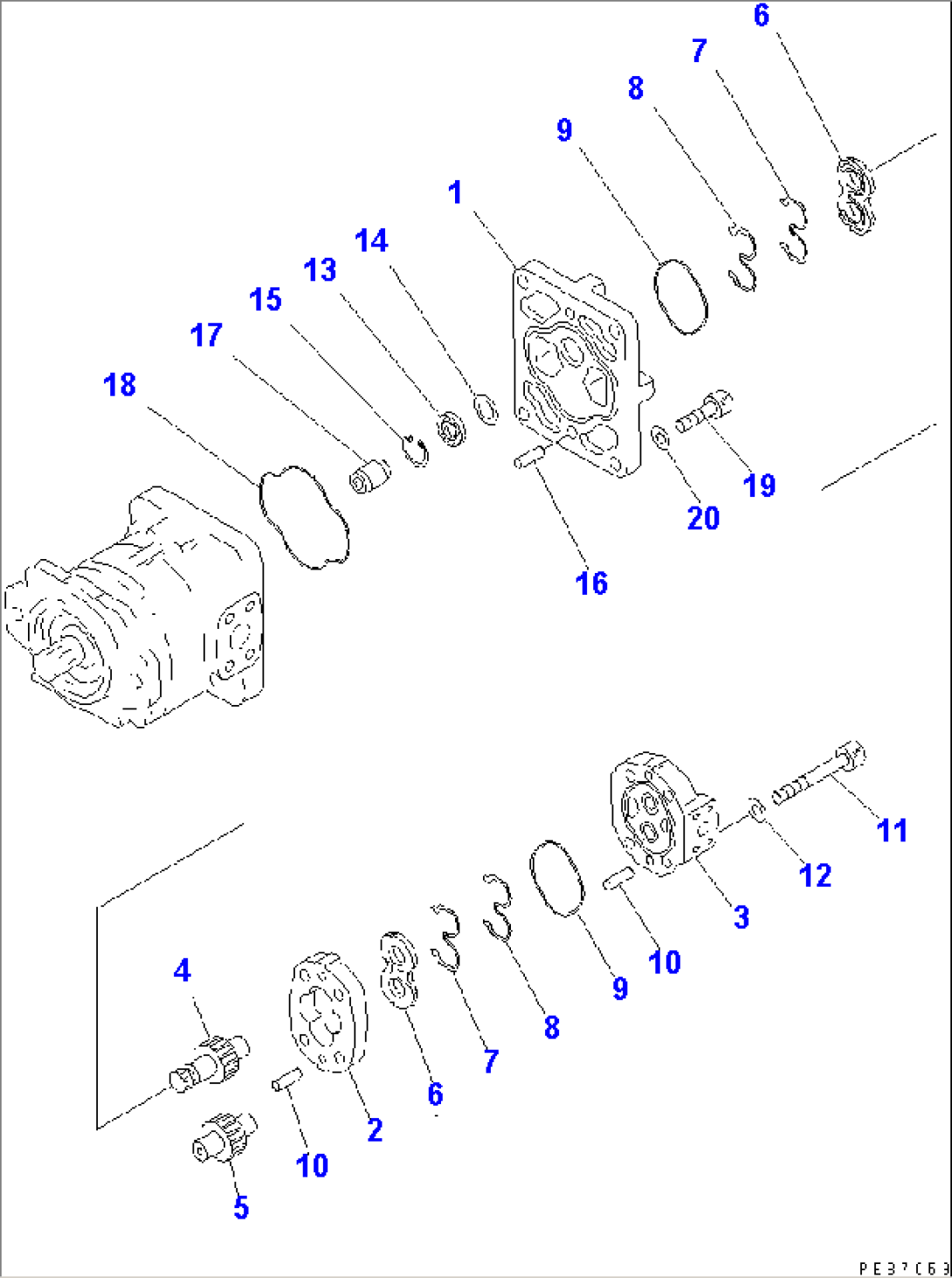

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0A AND Y1610-02A0 A. | ||||
| 705-22-20040 | PUMP ASS'Y (SAR1-8) | 10239- | ||
| 1 | (\7\705-19-01540) | BRACKET | 10239- | |
| 1 | (\7\705-17-01350) | BUSHING | 10001- | |
| 2 | (\7\705-17-20011) | CASE,GEAR | 10001- | |
| 3 | (\7\705-17-01120) | COVER ASS'Y | 10001- | |
| 3 | (\7\705-17-01350) | BUSHING | 10001- | |
| 4 | (\7\705-17-20450) | GEAR,DRIVE | 10001- | |
| 5 | (\7\705-17-20511) | GEAR,DRIVEN | 10001- | |
| 6 | 705-17-01610 | PLATE,SIDE | 10001- | |
| 7 | 705-67-01440 | RING,BACK-UP | 10001- | |
| 8 | 705-67-01470 | SEAL | 10001- | |
| 9 | 705-67-01380 | O-RING | 10001- | |
| 10 | 04020-00820 | PIN,DOWEL | 10001- | |
| 11 | 705-17-02710 | BOLT | 10001- | |
| 12 | 01643-51232 | WASHER | 10001- | |
| 13 | 705-17-01960 | SEAL,OIL | 10001- | |
| 14 | 705-17-01860 | PLATE | 10001- | |
| 15 | 04065-03212 | RING,SNAP | 10001- | |
| 16 | 04020-01228 | PIN,DOWEL | 10001- | |
| 17 | 705-19-01330 | COUPLING | 10001- | |
| 18 | 705-17-03381 | O-RING | 10001- | |
| 19 | 705-19-03470 | BOLT | 10001- | |
| 20 | 705-17-04980 | WASHER | 10001- |
