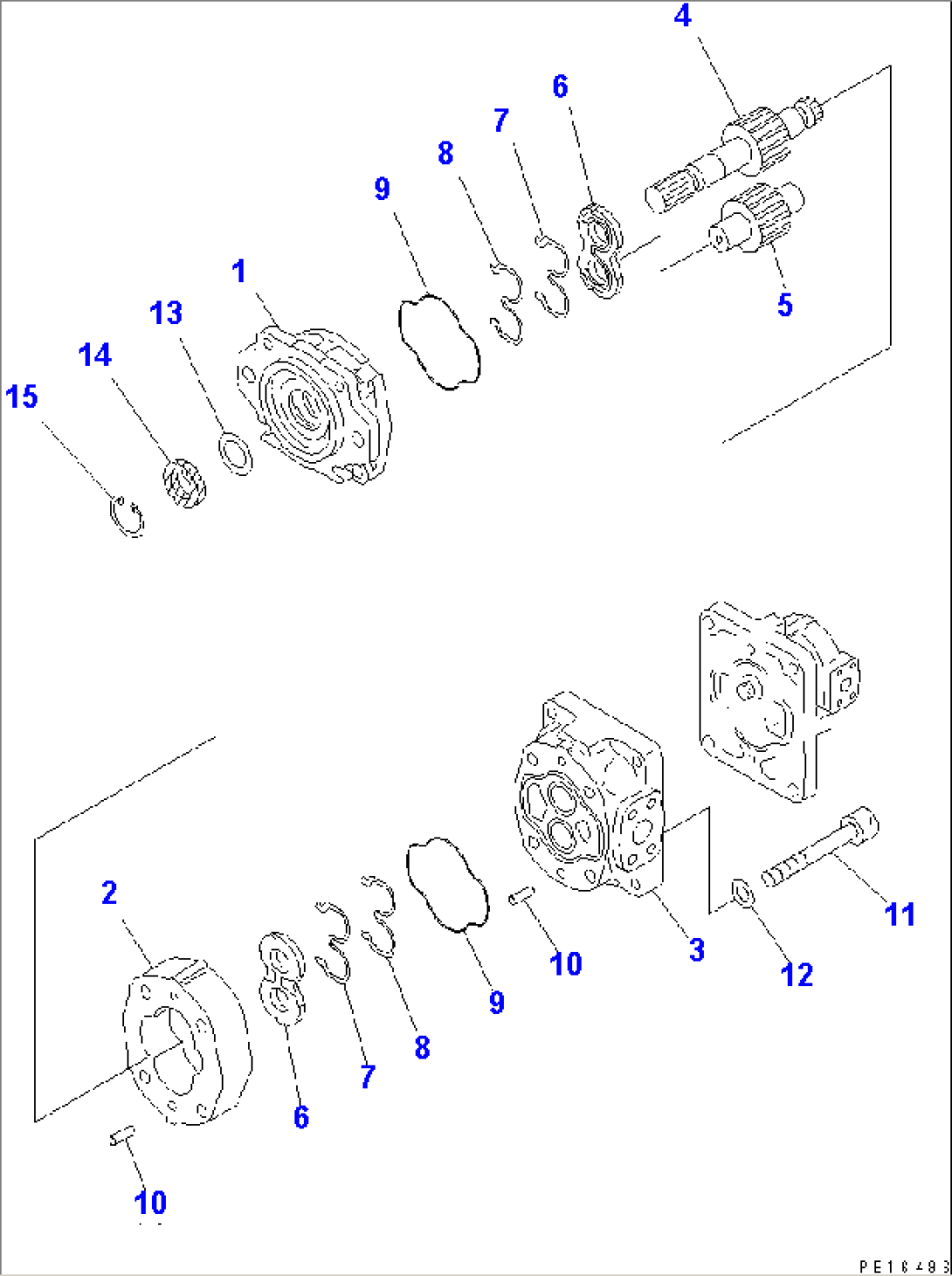

| Item | Part No. | Part Name | Qty | Serial No. |
| 705-52-31070 | PUMP ASS'Y | 10239- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A0A AND Y1610-02A0 A. | ||||
| 705-22-38080 | PUMP ASS'Y (SAR3-80) | 10239- | ||
| 1 | (\7\705-17-03021) | BRACKET ASS'Y | 10239- | |
| 1 | (\7\705-17-03352) | BEARING | 10001- | |
| 2 | (\7\705-17-38010) | CASE,GEAR | 10239- | |
| 3 | (\7\705-17-03220) | CARRIER ASS'Y | 10001- | |
| 3 | (\7\705-17-03352) | BEARING | 10001- | |
| 4 | (\7\705-19-38430) | GEAR,DRIVE | 10239- | |
| 5 | (\7\705-17-38511) | GEAR,DRIVEN | 10239- | |
| 6 | 705-17-03610 | PLATE,SIDE | 10001- | |
| 7 | 705-17-03443 | RING,BACK-UP | 10001- | |
| 8 | 705-17-03473 | SEAL | 10001- | |
| 9 | 705-17-03381 | O-RING | 10001- | |
| 10 | 04020-01228 | PIN,DOWEL | 10001- | |
| 11 | 705-17-03760 | BOLT | 10239- | |
| 12 | 01643-51645 | WASHER | 10001- | |
| 13 | 705-17-03870 | PLATE | 10001- | |
| 14 | 705-17-03830 | SEAL,OIL | 10001- | |
| 15 | 04065-05220 | RING,SNAP | 10001- |
