| Item | Part No. | Part Name | Qty | Serial No. |
| (6218-71-1110) | FUEL PUMP ASS'Y | 110134-110811 | ||

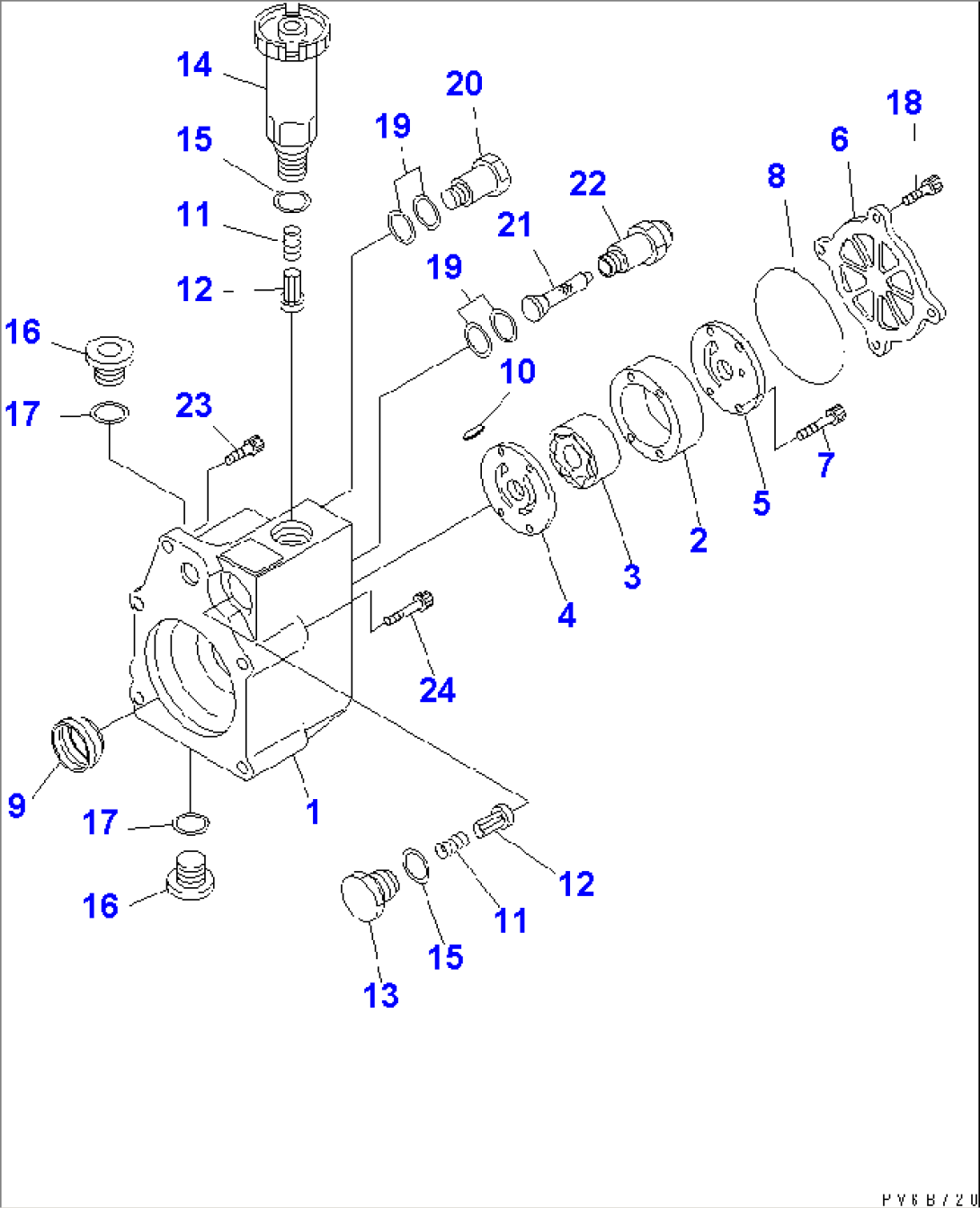

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A4010-C4L4Z AND A4010-D4L4 Z. | ||||
| (\7\ND094200-0260) | FEED PUMP ASS'Y | 110134-110811 | ||
| 1 | (\7\ND094210-0090) | HOUSING ASS'Y | 110134-110811 | |
| 2 | (\7\ND094231-0050) | CASING | 110134-110811 | |
| 3 | (\7\ND094230-0040) | PUMP SUB ASS'Y | 110134-110811 | |
| 4 | (\7\ND094241-0040) | PLATE | 110134-110811 | |
| 5 | (\7\ND094244-0040) | PLATE | 110134-110811 | |
| 6 | (\7\ND094251-0050) | COVER | 110134-110811 | |
| 7 | (\7\ND094082-0040) | SCREW | 110134-110811 | |
| 8 | (\7\ND094086-0200) | O-RING | 110134-110811 | |
| 9 | (\7\ND094087-0050) | SEAL,OIL | 110134-110811 | |
| 10 | (\7\ND094205-0030) | KEY | 110134-110811 | |
| 11 | ND092124-0010 | SPRING,CHECK VALVE | 110134-110811 | |
| 12 | ND092121-0011 | VALVE,CHECK | 110134-110811 | |
| 13 | (\7\ND092126-0010) | PLUG,CHAMBER | 110134-110811 | |
| 14 | ND092130-0360 | PRIMING PUMP | 110134-110811 | |
| 15 | ND092125-0010 | GASKET | 110134-110811 | |
| 16 | (\7\ND090317-0060) | PLUG,SCREW | 110134-110811 | |
| 17 | (\7\ND949018-1500) | WASHER, 1MM | 110134-110811 | |
| 18 | (\7\ND949044-3320) | BOLT | 110134-110811 | |
| 19 | ND090222-0070 | WASHER | 110134-110811 | |
| 20 | ND090310-0490 | VALVE,OVERFLOW | 110134-110811 | |
| 21 | ND092220-0040 | FILTER | 110134-110811 | |
| 22 | ND092223-0042 | SCREW | 110134-110811 | |
| 23 | (\7\ND949044-3320) | BOLT | 110134-110811 | |
| 24 | ND096449-0070 | BOLT,SOCKET | 110134-110811 |
