| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 04434-53212 | Clip | 8173- | |
| 2 | 07095-20523 | Cushion | 8173- | |
| 3 | 01010-81225 | Bolt | 8173- | |
| 4 | 01643-31232 | Washer | 8173- | |
| 5 | 04434-52712 | Clip | 8173- | |
| 6 | 07095-20419 | Cushion | 8173- | |
| 7 | (561-01-83910) | Cover | - | |
| 8 | (561-01-83214) | Cover | - |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 8832 30000 (for kal)
- Fuel system
- Fuel piping, filter to engine (#8173 )
Поиск по каталогу

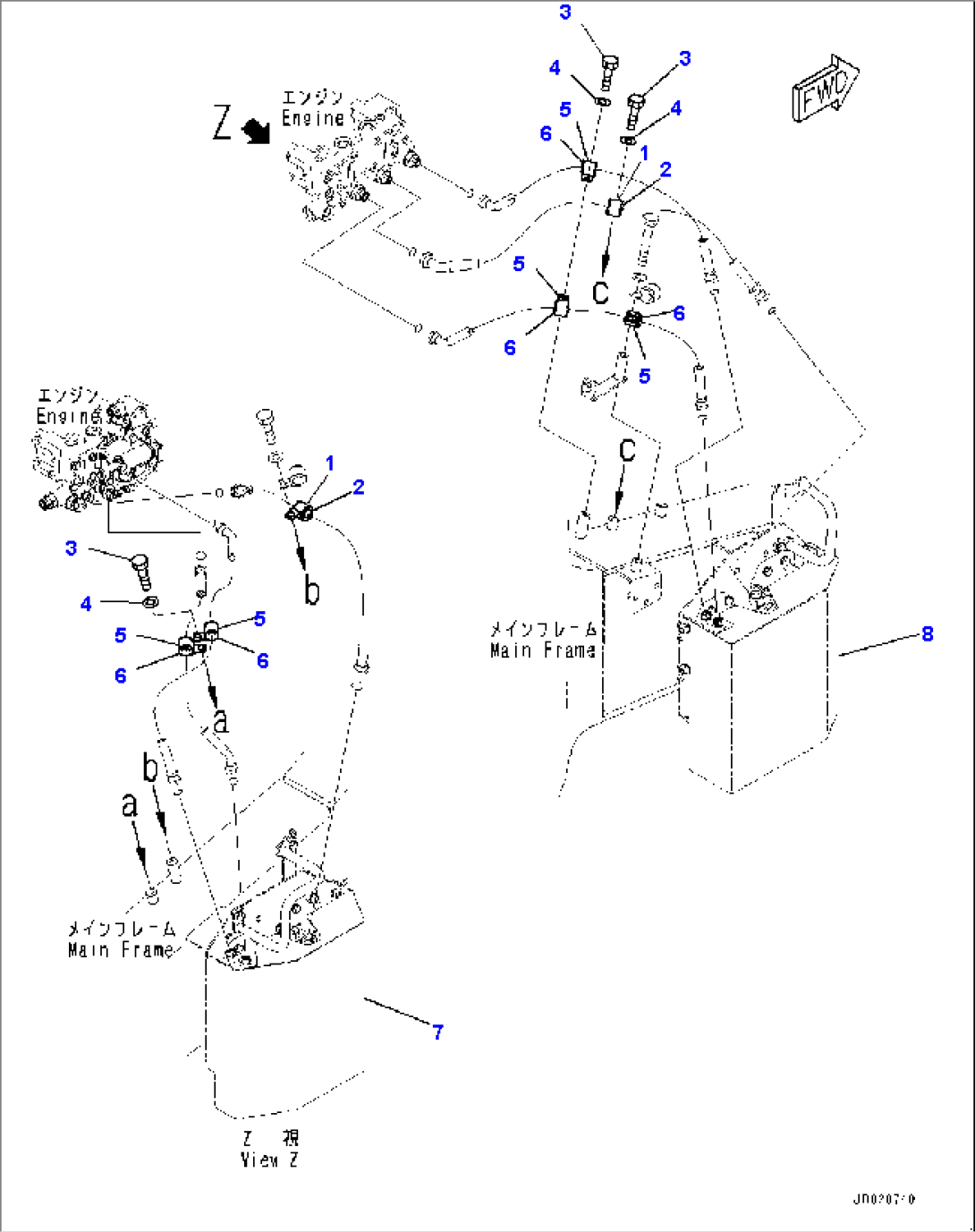

Fuel Piping, Filter to Engine (#8173-)
