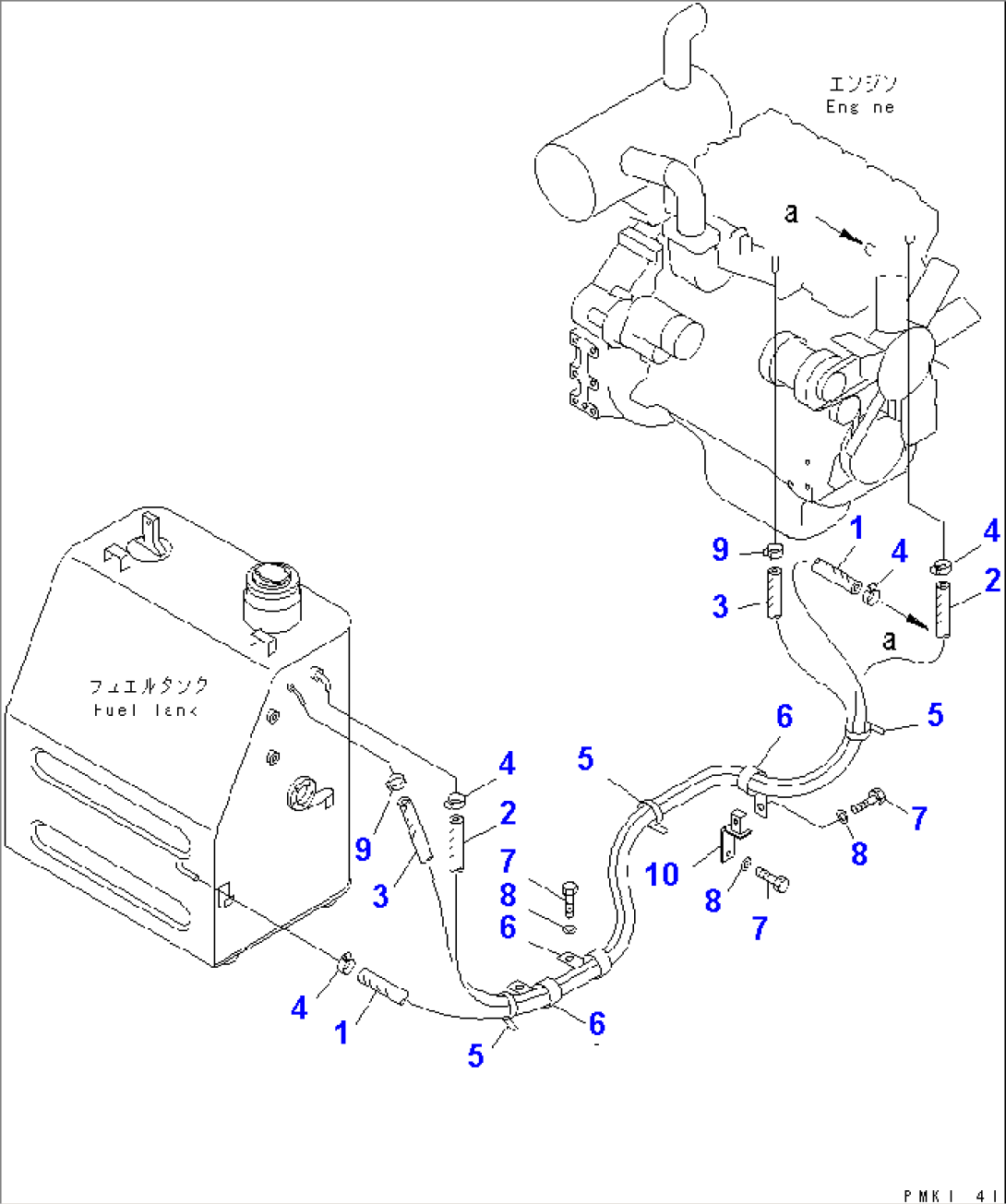

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07288-01019 | HOSE | 52458-58000 | |
| 1 | 07288-01021 | HOSE | 52374-52457 | |
| 2 | 07288-01019 | HOSE | 52458-58000 | |
| 2 | 07288-01023 | HOSE | 52374-52457 | |
| 3 | 07270-40422 | TUBE | 52374-58000 | |
| 4 | 07281-00197 | CLAMP | 45001-58000 | |
| 5 | 08034-00519 | BAND | 45001-58000 | |
| 6 | 04434-53211 | CLIP | 52374-58000 | |
| 7 | 01010-81025 | BOLT | 45001-58000 | |
| 8 | 01643-31032 | WASHER | 45001-58000 | |
| 9 | 07285-00085 | CLIP | 45001-58000 | |
| 10 | 201-04-72130 | BRACKET | 52374-58000 |
