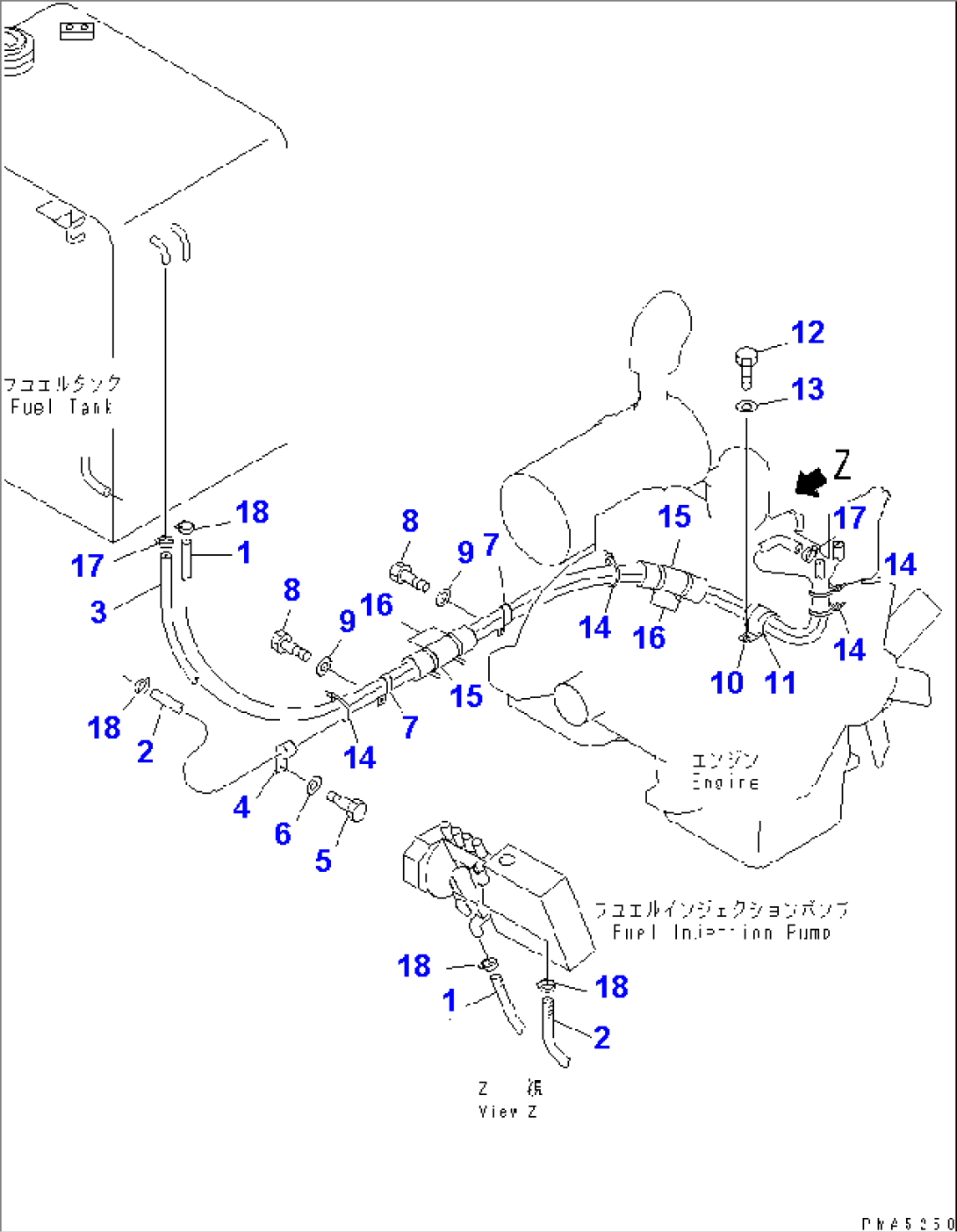

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07288-01024 | HOSE | 15002-15117 | |
| 1 | 07288-01024 | HOSE | 15001-15001 | |
| 2 | 07288-01022 | HOSE | 15002-15117 | |
| 3 | 07270-40430 | TUBE | 15001-15117 | |
| 4 | 08036-01814 | CLIP | 15001-@ | |
| 5 | 01010-51220 | BOLT | 15001-@ | |
| 6 | 01643-31232 | WASHER | 15001-@ | |
| 7 | 141-06-11220 | CLIP | 15001-@ | |
| 8 | 01010-51220 | BOLT | 15001-@ | |
| 9 | 01643-31232 | WASHER | 15001-@ | |
| 10 | 20Y-62-17930 | CLIP | 15001-15117 | |
| 11 | 07095-01035 | CUSHION | 15001-15117 | |
| 12 | 01010-51220 | BOLT | 15001-15117 | |
| 13 | 01643-31232 | WASHER | 15001-15117 | |
| 14 | 08034-00536 | BAND | 15001-@ | |
| 15 | 205-62-53780 | COVER | 15001-@ | |
| 16 | 08034-00834 | BAND | 15001-@ | |
| 17 | 07285-00080 | CLIP | 15001-@ | |
| 18 | 07281-00197 | CLAMP | 15001-@ |
