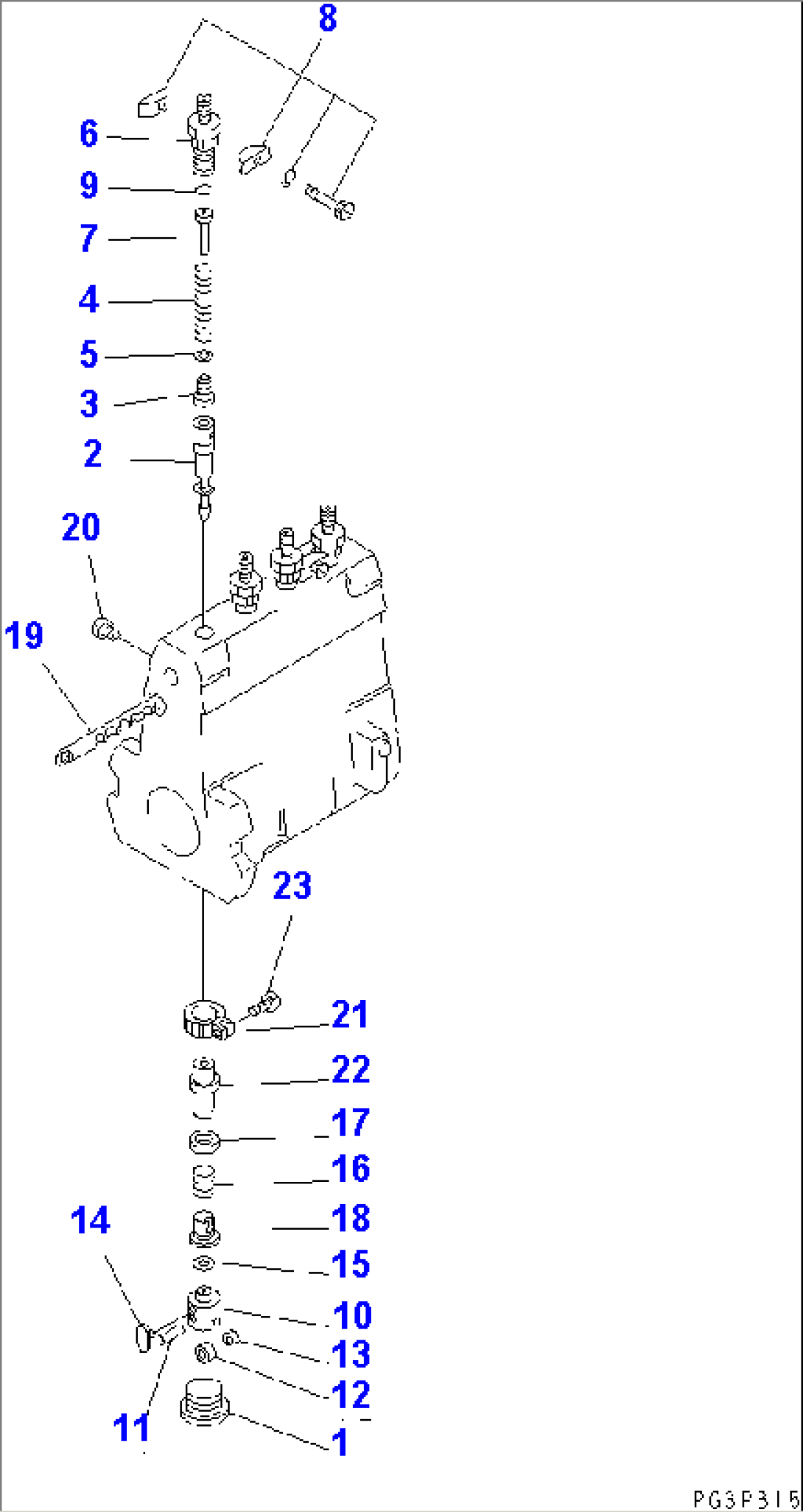

| Item | Part No. | Part Name | Qty | Serial No. |
| (6737-71-1130) | INJECTION PUMP ASS'Y | 26288963- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A401P-02G8 TO A401P-06G8. | ||||
| (DK101041-9660) | PUMP ASS'Y | 26288963- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.A401P-02G8 AND A401P-03G8. | ||||
| 1 | DK131034-1401 | PLUG | 26288963- | |
| 2 | DK131154-6120 | PLUNGER ASS'Y | 26288963- | |
| 3 | DK131110-7720 | VALVE,DELIVERY | 26288963- | |
| 4 | DK131112-5600 | SPRING | 26288963- | |
| 5 | DK131115-1600 | GASKET | 26288963- | |
| 6 | DK131116-8420 | HOLDER | 26288963- | |
| 7 | DK131117-3100 | STOPPER | 26288963- | |
| 8 | DK131122-0520 | PLATE ASS'Y | 26288963- | |
| 9 | DK029632-0030 | O-RING | 26288963- | |
| 10 | DK131200-2820 | TAPPET ASS'Y | 26288963- | |
| 11 | DK131203-0800 | PIN | 26288963- | |
| 12 | DK131204-1000 | ROLLER | 26288963- | |
| 13 | DK131205-0500 | BUSHING | 26288963- | |
| 14 | DK131206-0200 | GUIDE | 26288963- | |
| 15 | DK029311-0580 | SHIM, 0.2MM | 26288963- | |
| 15 | DK029311-0590 | SHIM, 0.25MM | 26288963- | |
| 15 | DK029311-0020 | SHIM, 0.30MM | 26288963- | |
| 15 | DK029311-0600 | SHIM, 0.35MM | 26288963- | |
| 15 | DK029311-0030 | SHIM, 0.40MM | 26288963- | |
| 15 | DK029311-0610 | SHIM, 0.45MM | 26288963- | |
| 15 | DK029311-0040 | SHIM, 0.50MM | 26288963- | |
| 15 | DK029311-0270 | SHIM, 0.55MM | 26288963- | |
| 15 | DK029311-0050 | SHIM, 0.6MM | 26288963- | |
| 15 | DK029311-0280 | SHIM, 0.65MM | 26288963- | |
| 15 | DK029311-0060 | SHIM, 0.7MM | 26288963- | |
| 15 | DK029311-0290 | SHIM, 0.75MM | 26288963- | |
| 15 | DK029311-0070 | SHIM, 0.8MM | 26288963- | |
| 15 | DK029311-0310 | SHIM, 0.85MM | 26288963- | |
| 15 | DK029311-0080 | SHIM, 0.9MM | 26288963- | |
| 15 | DK029311-0320 | SHIM, 0.95MM | 26288963- | |
| 15 | DK029311-0090 | SHIM, 1.0MM | 26288963- | |
| 15 | DK029311-0330 | SHIM, 1.05MM | 26288963- | |
| 15 | DK029311-0110 | SHIM, 1.1MM | 26288963- | |
| 15 | DK029311-0340 | SHIM, 1.15MM | 26288963- | |
| 15 | DK029311-0120 | SHIM, 1.2MM | 26288963- | |
| 15 | DK029311-0350 | SHIM, 1.25MM | 26288963- | |
| 15 | DK029311-0130 | SHIM, 1.3MM | 26288963- | |
| 15 | DK029311-0620 | SHIM, 1.35MM | 26288963- | |
| 15 | DK029311-0140 | SHIM, 1.4MM | 26288963- | |
| 15 | DK029311-0630 | SHIM, 1.45MM | 26288963- | |
| 15 | DK029311-0490 | SHIM, 1.5MM | 26288963- | |
| 15 | DK029311-0710 | SHIM, 1.55MM | 26288963- | |
| 15 | DK029311-0500 | SHIM, 1.6MM | 26288963- | |
| 16 | DK131215-2500 | SPRING | 26288963- | |
| 17 | DK131216-0100 | SEAT,SPRING | 26288963- | |
| 18 | DK131217-0200 | SEAT,SPRING | 26288963- | |
| 19 | DK131254-0600 | RACK,CONTROL | 26288963- | |
| 20 | DK131226-0300 | SCREW | 26288963- | |
| 21 | DK131240-0100 | PINION | 26288963- | |
| 22 | DK131241-0100 | SLEEVE,CONTROL | 26288963- | |
| 23 | DK131242-0100 | SCREW | 26288963- |
