Item | Part No. | Part Name | Qty | Serial No. |

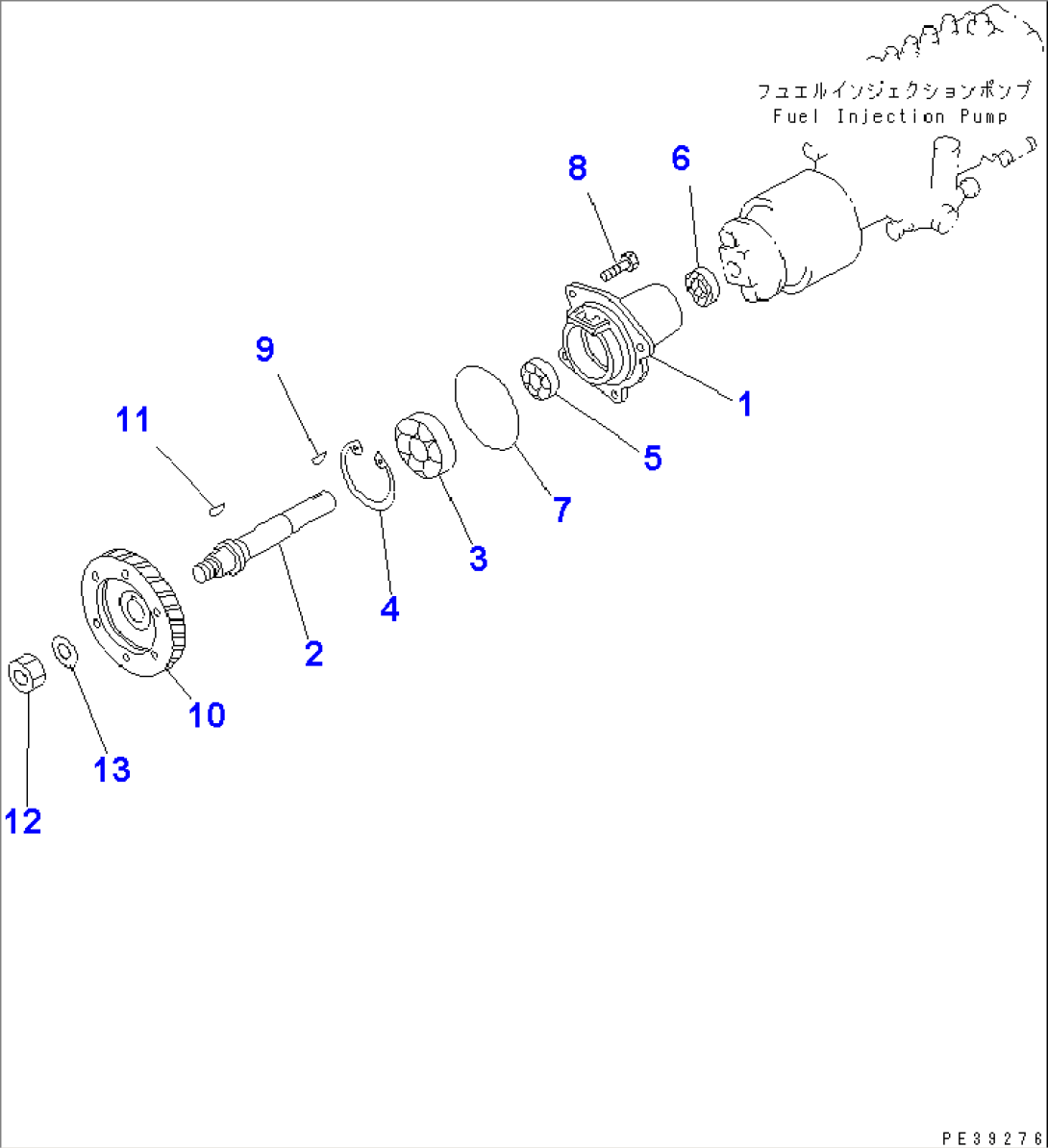

6151-72-3100 | CASE ASS'Y,INJECTION PUMP DRIVE | 60863- | ||
1 | \6\ | CASE | 60863- | |
2 | 6151-72-3120 | SHAFT | 60863- | |
3 | 06030-06307 | BEARING,BALL | 60863- | |
4 | 04065-08025 | RING,SNAP | 60863- | |
5 | 06030-06006 | BEARING,BALL | 86395- | |
\0\06000-06006 | BEARING,BALL | 60863-86394 | ||
6 | 6151-71-3150 | SEAL,OIL | 60863- | |
7 | 07000-72125 | O-RING | 60863- | |
8 | 01010-81025 | BOLT | 60863- | |
9 | 6150-71-3160 | KEY | 60863- | |
10 | 6152-71-3230 | GEAR | 65759- | |
\0\6150-71-3210 | GEAR | 60863-65783 | ||
11 | 04010-00519 | KEY | 60863- | |
12 | 01583-12414 | NUT | 60863- | |
13 | 01643-32460 | WASHER | 60863- |
