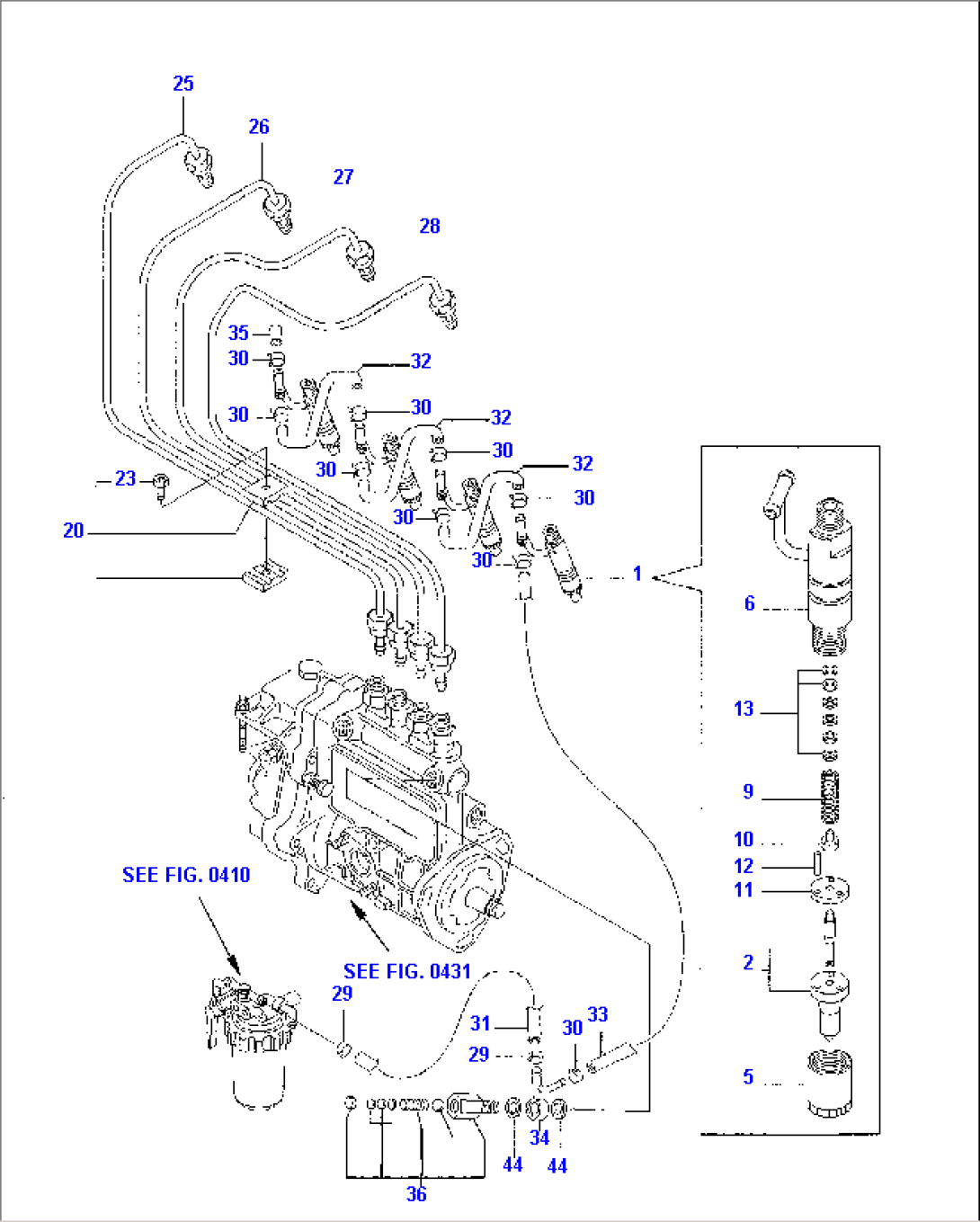

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | (871070024) | MOTOR, ASSY. | ||
| 1 | YM729503-53100 | VALVE ASSY. | ||
| 2 | YM129503-53000 | NOZZLE, ASSY. | ||
| 5 | YM114250-53080 | PIPE | ||
| 6 | YM129100-53100 | FUEL INJECTION NOZZLE, ASSY. | ||
| 9 | YM114250-53120 | SPRING | ||
| 10 | YM114250-53130 | SEAT | ||
| 11 | YM114250-53140 | PLATE, STOP | ||
| 12 | YM114250-53210 | PIN | ||
| 13 | YM114250-53400 | KIT, SHIM | ||
| 20 | YM119305-59120 | RETAINER, PIPE | ||
| 23 | YM129150-59131 | BOLT | ||
| 25 | YM129612-59831 | PIPE | ||
| 26 | YM129407-59910 | PIPE | ||
| 27 | YM129407-59920 | PIPE | ||
| 28 | YM129407-59940 | PIPE | ||
| 29 | YM124766-59050 | CLAMP | ||
| 30 | YM124066-59100 | CLAMP | ||
| 31 | YM129612-59520 | PIPE | ||
| 32 | YM121250-59550 | PIPE | ||
| 33 | YM119840-59560 | PIPE | ||
| 34 | YM119840-59570 | UNION | ||
| 35 | YM129150-59580 | PLUG | ||
| 36 | YM129100-59951 | VALVE, ASSY. | ||
| 44 | YM23414-120000 | GASKET | ||
| SEE FIG. 0410 | ||||
| SEE FIG. 0431 |
