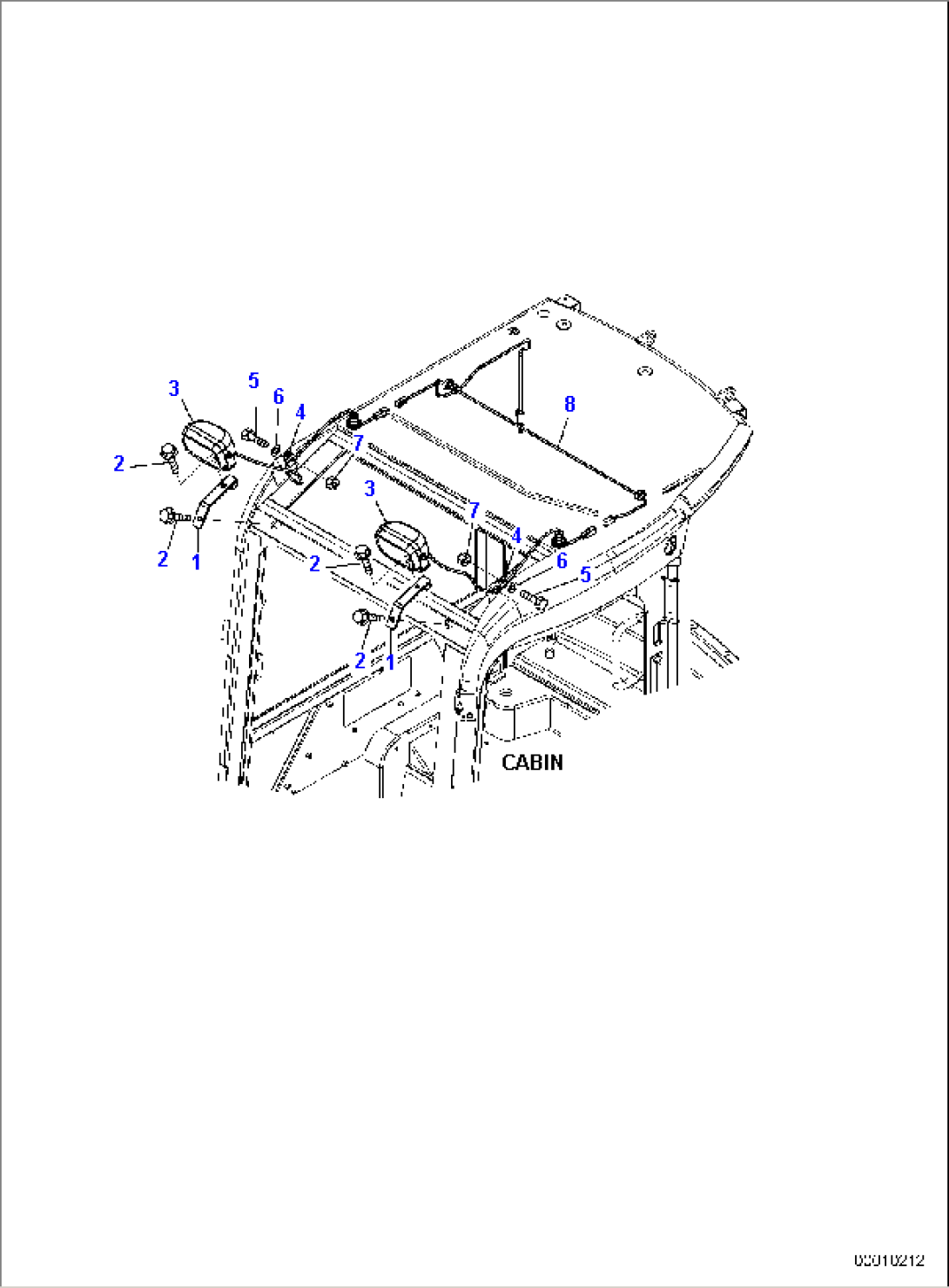

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22M-54-25931 | PLATE | F00103- | |
| 2 | 01435-01020 | BOLT | F00103- | |
| 3 | 22M-06-25921 | WORK LAMP, ASSEMBLY | F00103- | |
| 4 | 04434-51708 | CLAMP | F00103- | |
| 5 | 01010-D0820 | BOLT | F00103- | |
| 6 | 01643-10823 | WASHER | F00103- | |
| 7 | 01580-10806 | NUT | F00103- | |
| 8 | 22M-06-24211 | WIRING HARNESS, ROOF LINE | F00103-F00183 | |
| 8 | 22M-06-R4211 | WIRING HARNESS, ROOF LINE | F00184- |
