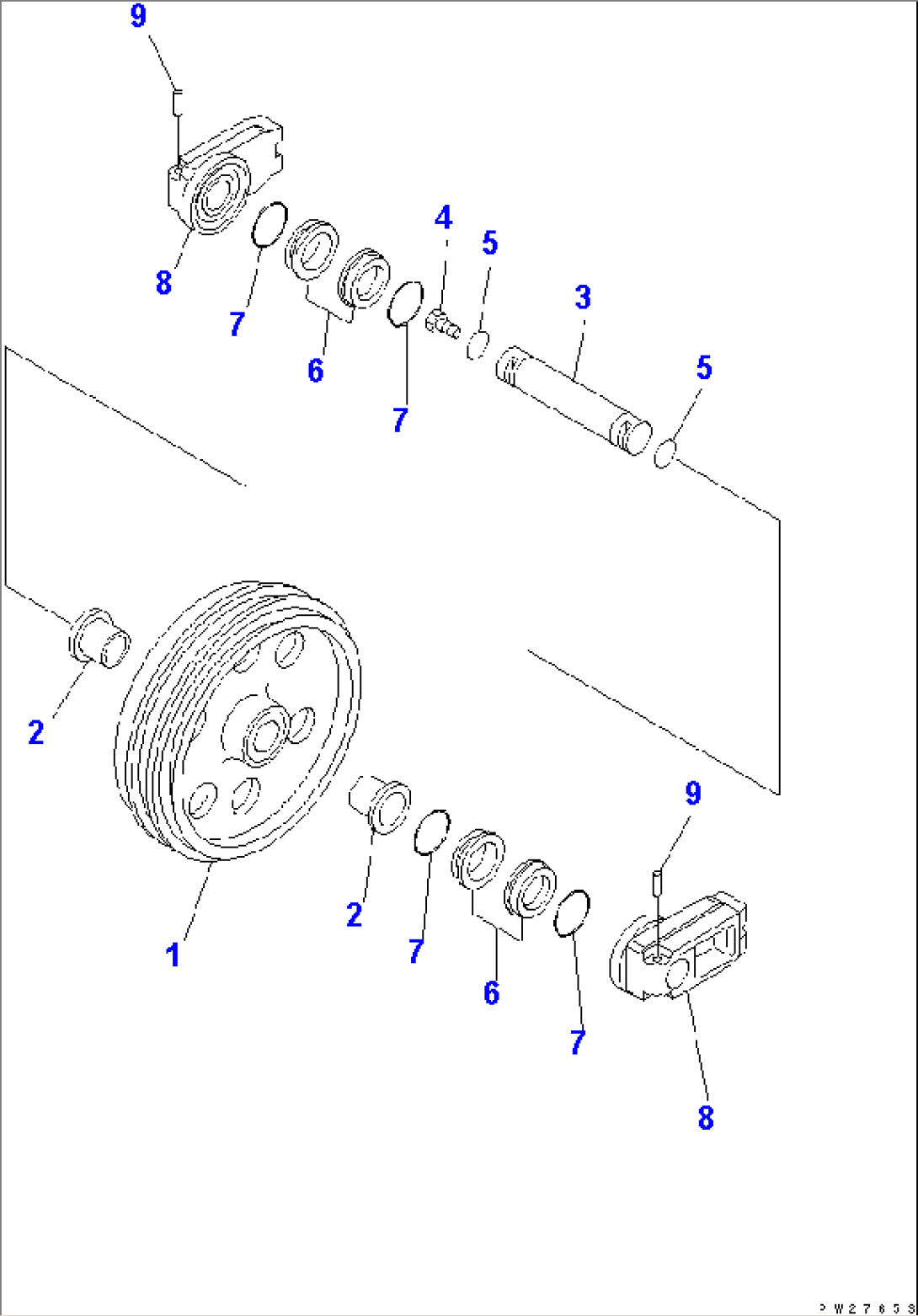

| Item | Part No. | Part Name | Qty | Serial No. |
| 20Y-30-00030 | FRONT IDLER ASS'Y | 1101- | ||
| 1 | 20Y-30-13120 | IDLER | 1101- | |
| 2 | 207-30-56140 | BUSHING | 1101- | |
| 3 | 20Y-30-13130 | SHAFT | 1101- | |
| 4 | 07052-31624 | PLUG | 1101- | |
| 5 | 07000-02060 | O-RING | 1101- | |
| 20Y-30-00100 | FLOATING SEAL ASS'Y | 1101- | ||
| 6 | \6\ | RING | 1101- | |
| 7 | \6\ | O-RING | 1101- | |
| 8 | 20Y-30-13150 | SUPPORT | 1101- | |
| 9 | 205-30-76190 | PIN | 1101- |
