| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20Y-970-4370 | COLLAR | 50001- | |
| 2 | 20Y-970-3891 | GUARD | 50001- | |
| 3 | 01010-81220 | BOLT | 52741- | |
| 3 | 01010-51220 | BOLT | 50001-52740 | |
| 4 | 01643-31232 | WASHER | 50001- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc220lc 6z s/n 50001 up (excel spec.)
- Operator's compartment and control system
- Front guard (half) (lower)
Поиск по каталогу

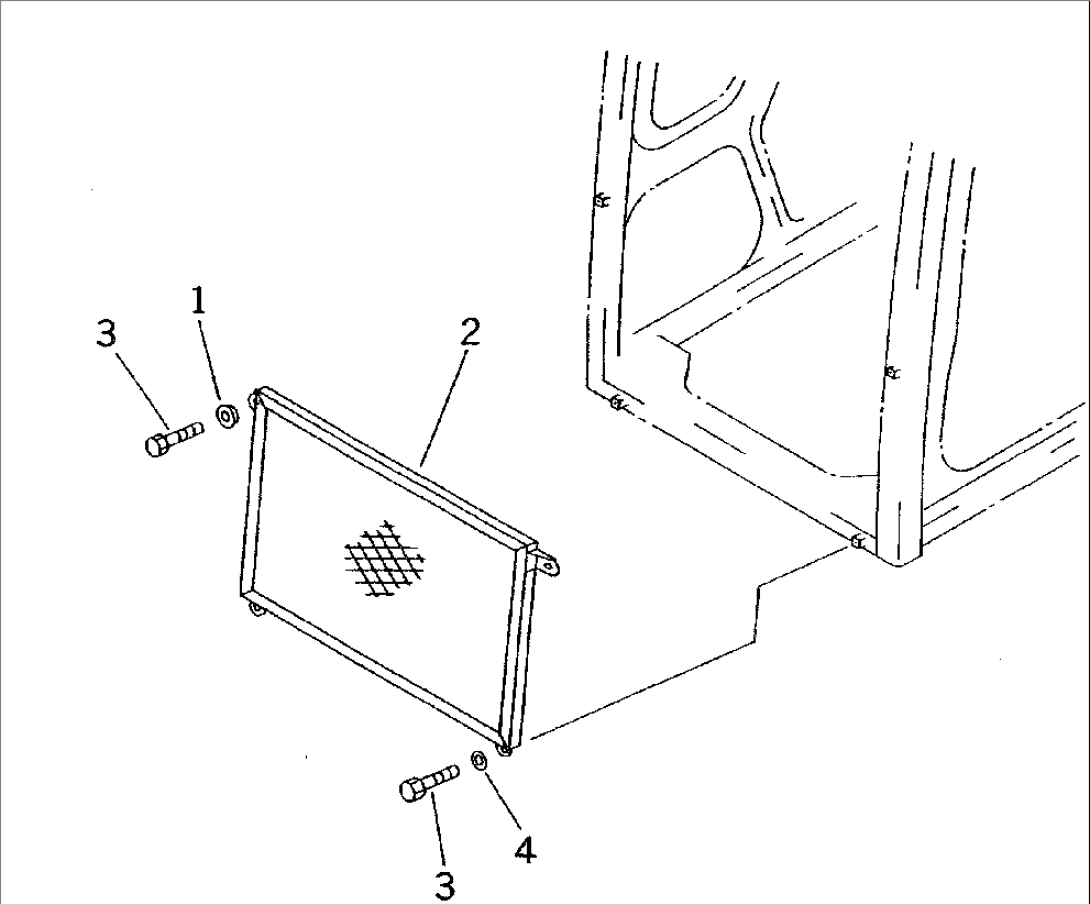

FRONT GUARD (HALF) (LOWER)
